ATEN HDMI HDBASET TRANSMITTER WITH DUAL 4K OUTPUT
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE814AT-ATA-U
- MPN: VE814AT-ATA-U
ATEN VE814AT-ATA-U AV extender AV transmitter Black Save $125.92 off RRP
Available On OrderAsk us for ETA
$599.14
Inclusive of GST
1
4 payments of $149.79Value Deal
Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-DD-044605
- MPN:
- VE814AT-ATA-U
- Brand:
- ATEN
We accept
On Sale
Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $125.92 off RRP while stocks last.

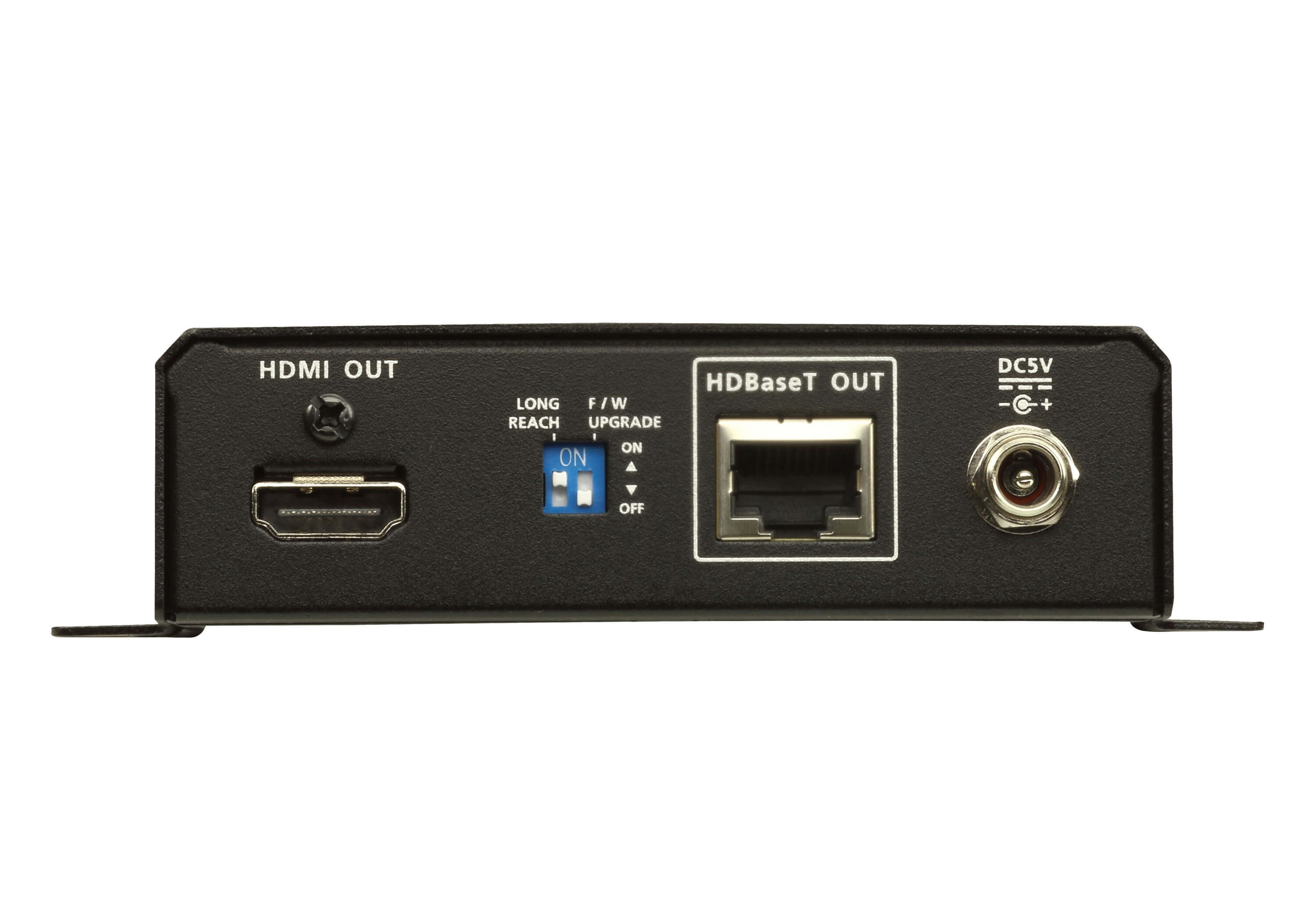

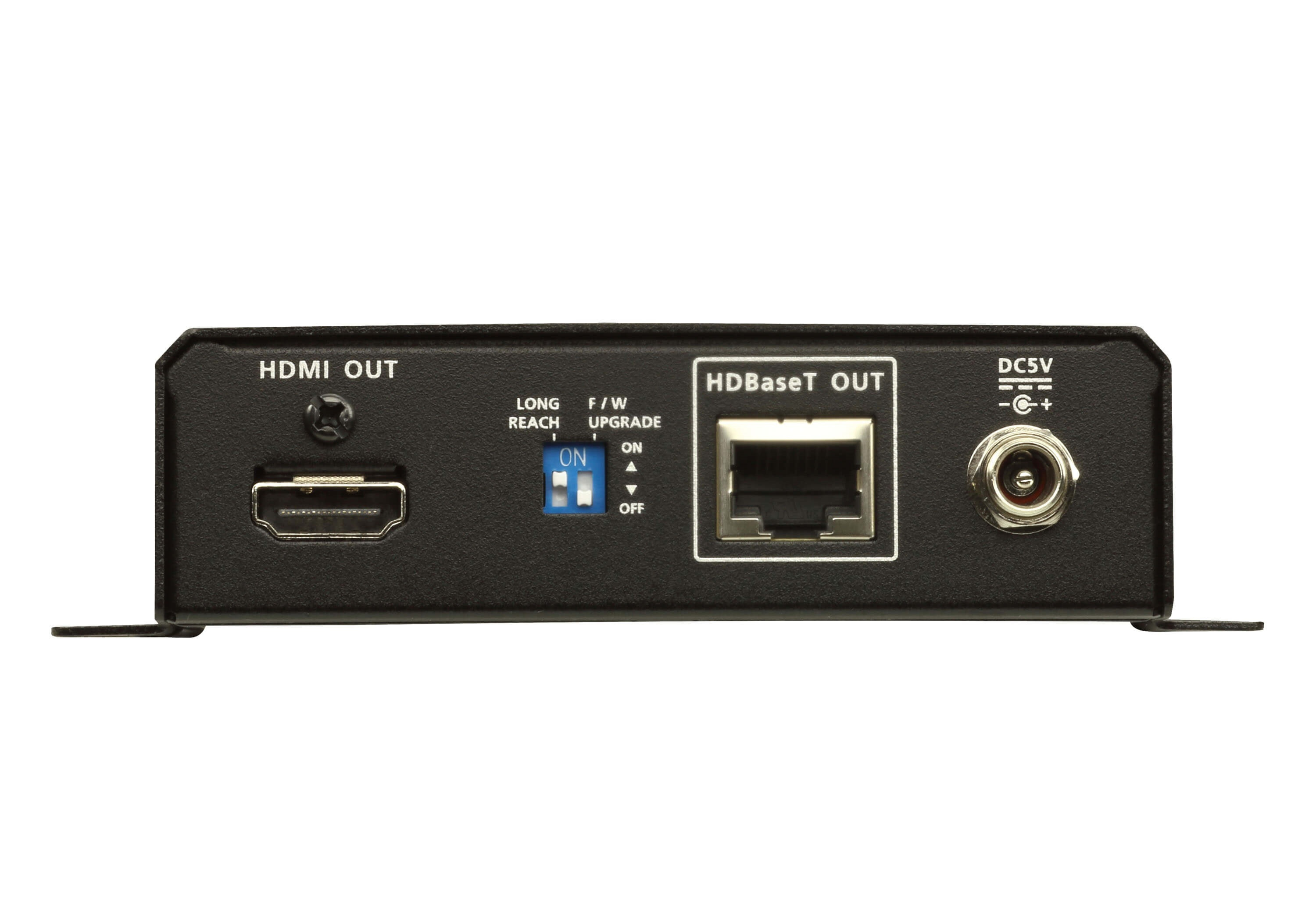

ATEN HDMI HDBASET TRANSMITTER WITH DUAL 4K OUTPUT
ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Key features
- Type: AV transmitter
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 150 m
- Maximum refresh rate: 60 Hz
- Extended display identification data (EDID): Yes
- Electrostatic Discharge (ESD) protection: Yes
- Electrostatic Discharge (ESD) protection: 15 kV
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- 3D: Yes
- Rack mounting: Yes
- Consumer Electronics Control (CEC) support: Yes
- Plug and Play: Yes
- Impedance: 100 Ω
- HDCP version: 2.2
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDBaseT port: Yes
- HDMI in: 1
- Number of HDMI outputs: 1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Remote (IR) input: 1
