ATEN HDMI OVER 2 CAT 5 EXTENDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE806-AT-U
  • MPN: VE806-AT-U

ATEN VE806-AT-U AV extender AV transmitter & receiver White

ATEN VE806-AT-U, 1920 x 1080 pixels, AV transmitter & receiver, Wired, White

ATEN HDMI OVER 2 CAT 5 EXTENDER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE806-AT-U

Part #: VE806-AT-U

Search this part on Google

Operating voltage

9 V

Power consumption (typical)

2.9 W

Type

AV transmitter & receiver

Maximum resolution

1920 x 1080 pixels

LED indicators

Yes

Supported video modes

1080i, 1080p

Product colour

White

Quantity per pack

2 pc(s)

Returns & Warranty

Comsys Price

$287.49
On Sale

Save $47.87 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $71.87 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

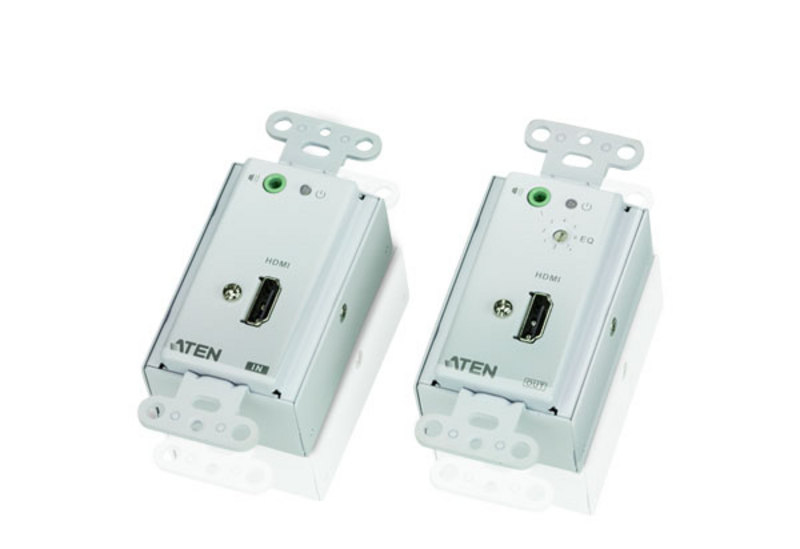

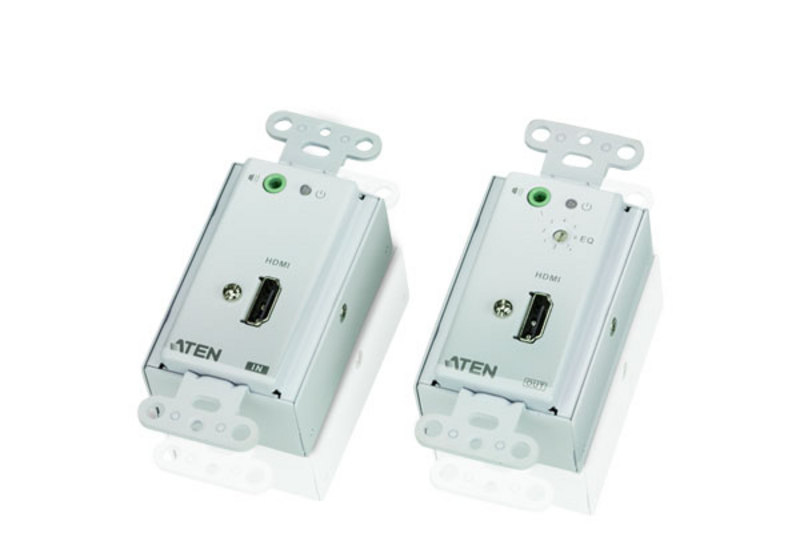

ATEN HDMI OVER 2 CAT 5 EXTENDER

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.

The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1080 pixels
  • LED indicators: Yes
  • Supported video modes: 1080i, 1080p
  • Product colour: White
  • Connectivity technology: Wired
  • Operating voltage: 9 V
  • Power consumption (typical): 2.9 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 44 mm
  • Depth: 104 mm
  • Height: 40 mm
  • Weight: 170 g
  • Quantity per pack: 2 pc(s)
