ATEN HDMI OVER 2 CAT 5 EXTENDER WITH IR

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE810-AT-U
  • MPN: VE810-AT-U

ATEN AT-VE810

ATEN AT-VE810, 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, Black

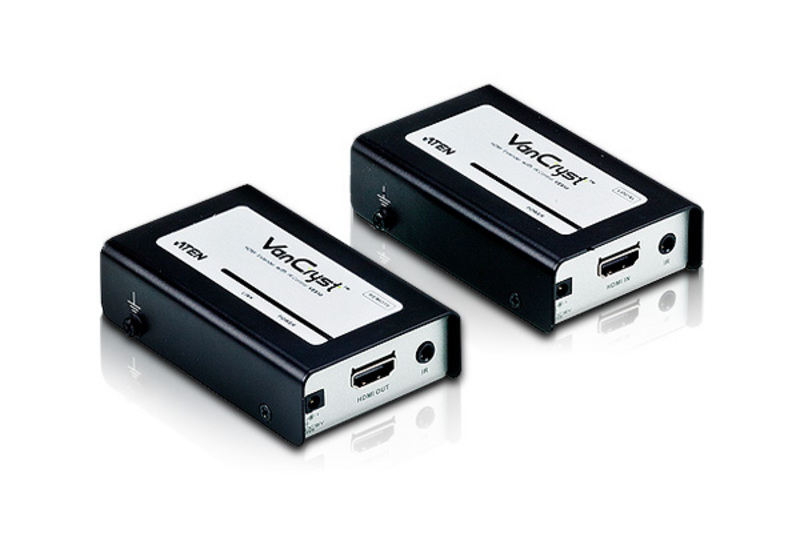

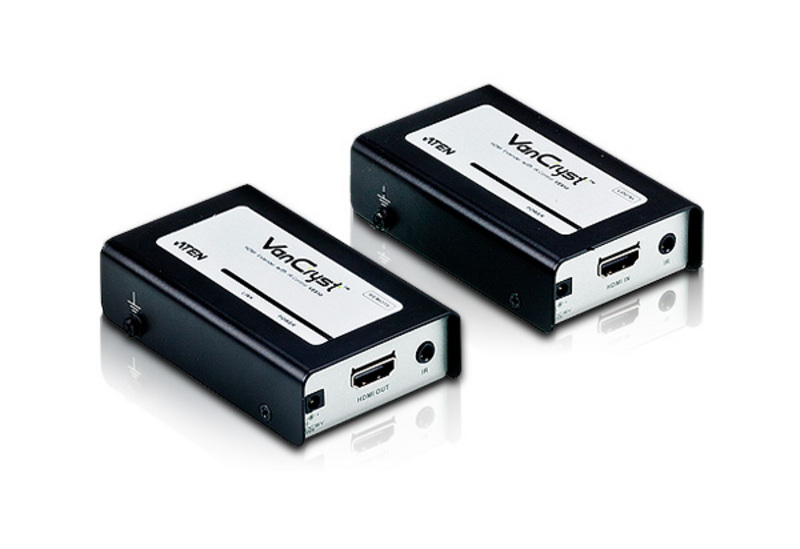

ATEN HDMI OVER 2 CAT 5 EXTENDER WITH IR

Click or hover over image to enlarge

Brand:ATEN
MPN:VE810-AT-U

Part #: VE810-AT-U

Search this part on Google

Operating voltage

5 V

Type

AV transmitter & receiver

Maximum resolution

1920 x 1200 pixels

Cable types supported

Cat5e

Maximum transfer distance

60 m

Audio system

Multichannel

LED indicators

Yes

Supported video modes

1080i, 1080p, 480p, 720p

Returns & Warranty

Comsys Price

$165.59
On Sale

Save $27.36 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $41.40 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI OVER 2 CAT 5 EXTENDER WITH IR

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.

For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1200 pixels
  • Cable types supported: Cat5e
  • Maximum transfer distance: 60 m
  • Audio system: Multichannel
  • LED indicators: Yes
  • Supported video modes: 1080i, 1080p, 480p, 720p
  • Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
  • Bandwidth: 6.75 Gbit/s
  • Material: Metal
  • Impedance: 100 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • RJ-45 input ports: 2
  • RJ-45 output ports: 2
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • Audio input: 1
  • Audio output: 1
  • DC-in jack: Yes
  • Operating voltage: 5 V
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Receiver weight: 160 g
  • Transmitter dimensions (WxDxH): 90 x 57.4 x 24 mm
  • Transmitter weight: 160 g
  • Package width: 59 mm
  • Package depth: 239 mm

+ 9 more — see the Specifications tab.
