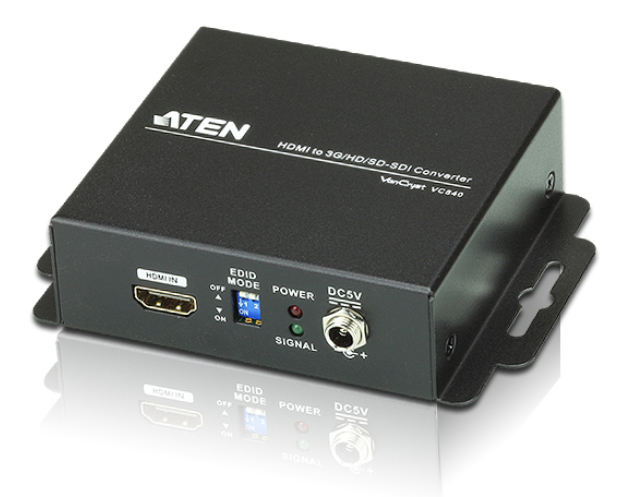

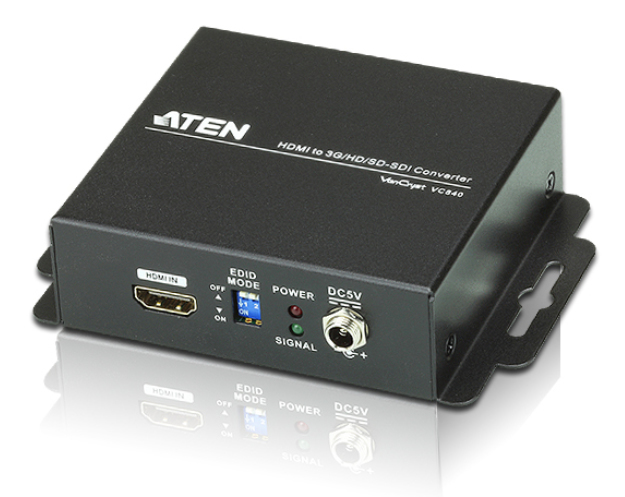

ATEN VC840-AT-U video signal converter

Name: ATEN HDMI TO 3G/HD/SD-SDI CONVERTER
Brand: ATEN
SKU: VC840-AT-U
Price: 484.14 NZD
Availability: BackOrder

ATEN VC840-AT-U, Black, Metal, 720p, 1080i, 1080p, 2.97 Gbit/s, 148.5 MHz, HDMI

Click or hover over image to enlarge

Brand:ATEN

MPN:VC840-AT-U

Part #: VC840-AT-U

Search this part on Google

Power consumption (typical)

3.225 W

Supported video modes

720p, 1080i, 1080p

Bandwidth

148.5 MHz

Extended display identification data (EDID)

Yes

Product colour

Black

Housing material

Metal

Host interface

HDMI

Output interface

BNC

Returns & Warranty

Comsys Price

$484.14

On Sale

Save $118.38 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days

100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare

We accept

Four payments of $121.04 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI TO 3G/HD/SD-SDI CONVERTER

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Key features

Extended display identification data (EDID): Yes
Product colour: Black
Housing material: Metal
Supported video modes: 720p, 1080i, 1080p
Bandwidth: 2.97 Gbit/s
Bandwidth: 148.5 MHz
Host interface: HDMI
Output interface: BNC
Video in: HDMI
Video out: 2 x BNC
Audio output: Analog 2 x RCA, Digital 1 x RCA
DC-in jack: Yes
Power consumption (typical): 3.225 W
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Width: 107 mm
Depth: 122 mm
Height: 30.4 mm
Weight: 290 g
