ATEN SMALL FORM HDMI HDBASET EXTENDER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE811-AT-U
  • MPN: VE811-AT-U

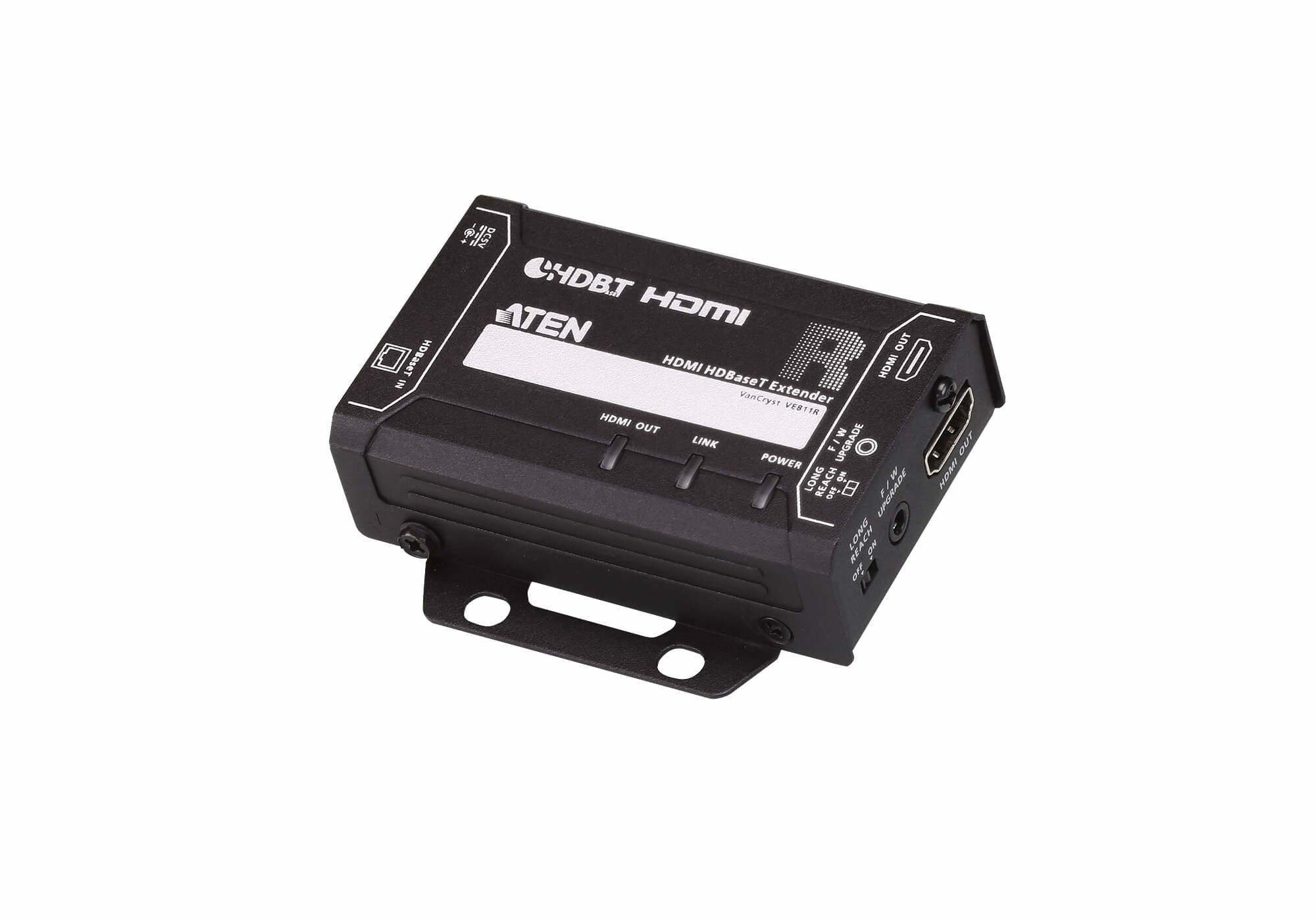

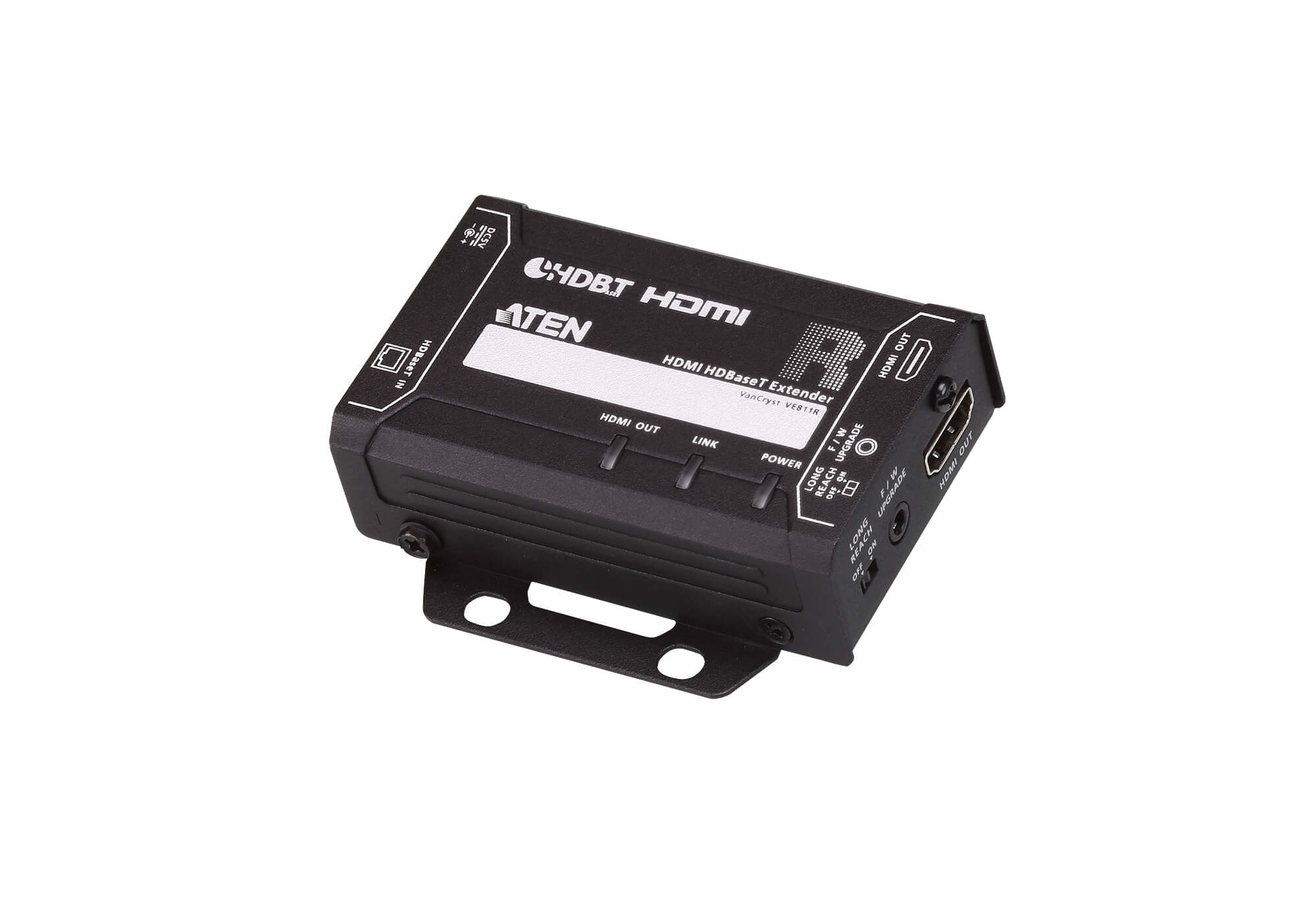

ATEN VE811 AV transmitter & receiver Black

ATEN VE811, 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, 3D, HDCP

ATEN SMALL FORM HDMI HDBASET EXTENDER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE811-AT-U

Part #: VE811-AT-U

Search this part on Google

Type

AV transmitter & receiver

Maximum resolution

4096 x 2160 pixels

Cable types supported

Cat5e, Cat6, Cat6a

Maximum transfer distance

150 m

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Bandwidth

10.2 Gbit/s

HDCP

Yes

Material

Metal

Returns & Warranty

Comsys Price

$601.44
On Sale

Save $85.39 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $150.36 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN SMALL FORM HDMI HDBASET EXTENDER

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Firmware upgradeable: Yes
  • Consumer Electronics Control (CEC) support: Yes
  • Plug and Play: Yes
  • Impedance: 100 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • DC-in jack: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Receiver dimensions (WxDxH): 73 x 86.4 x 24.7 mm
  • Receiver weight: 170 g
  • Transmitter dimensions (WxDxH): 73 x 86.4 x 24.7 mm
  • Transmitter weight: 160 g
