ATEN TRUE 4K 8 PORT HDMI SWITCH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VS0801HB-AT-U
  • MPN: VS0801HB-AT-U

ATEN VS0801HB-AT-U video switch HDMI

ATEN VS0801HB-AT-U, HDMI, Metal, Black, 60 Hz, 3 m, 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160

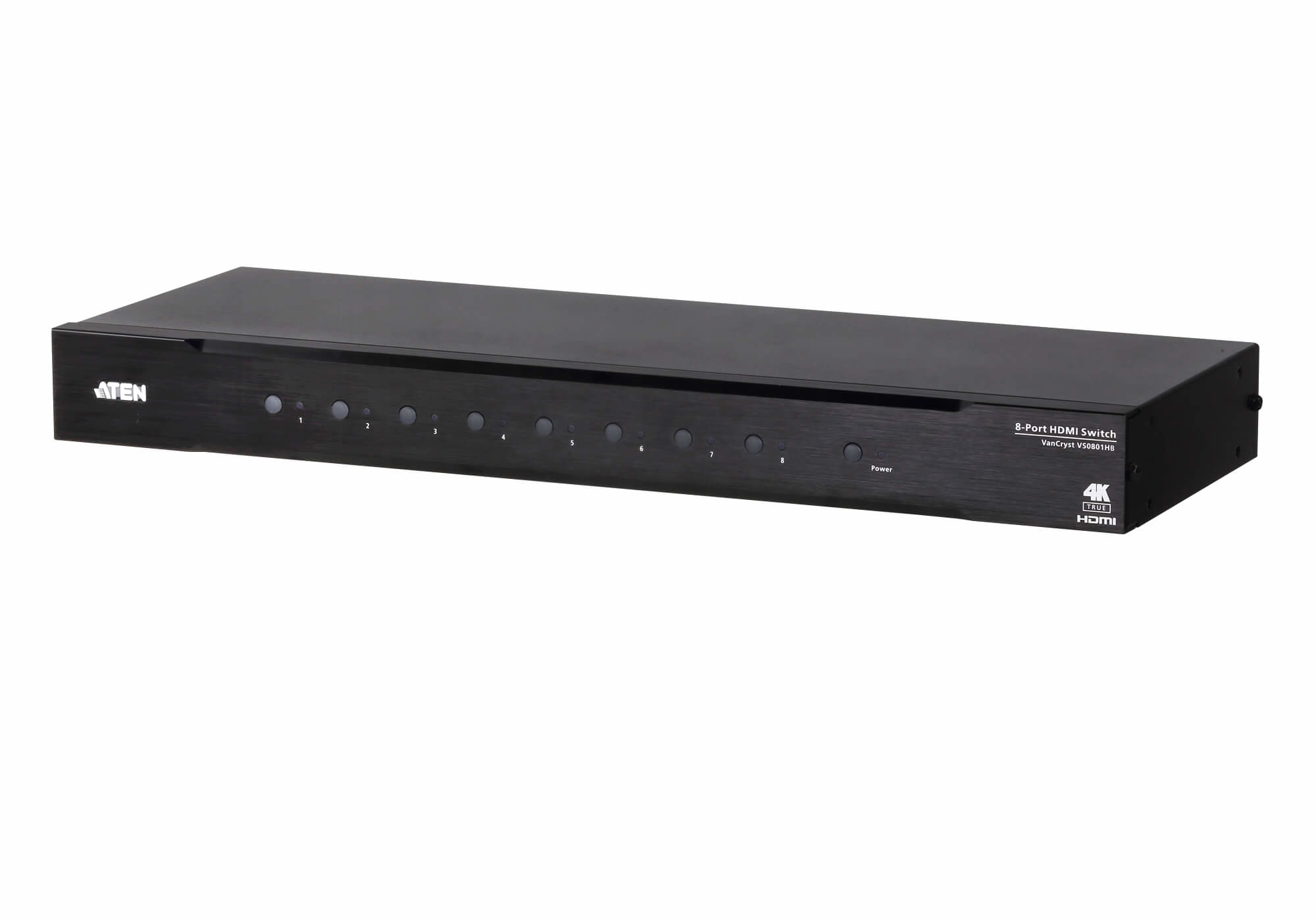

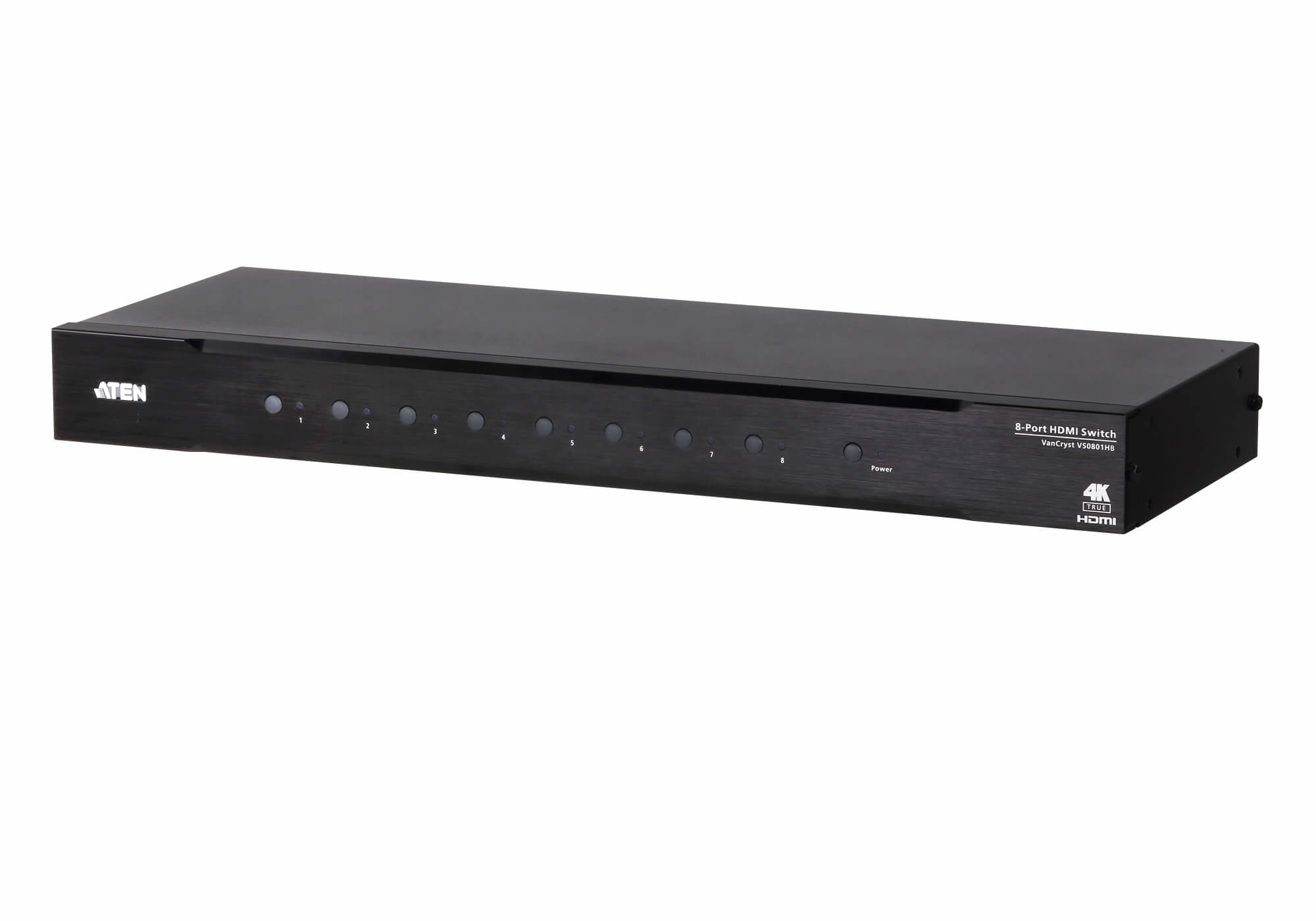

ATEN TRUE 4K 8 PORT HDMI SWITCH

Click or hover over image to enlarge

Brand:ATEN
MPN:VS0801HB-AT-U

Part #: VS0801HB-AT-U

Search this part on Google

AC adapter input voltage

5.3 V

Power consumption (typical)

3.73 W

Material

Metal

Product colour

Black

HDCP

Yes

Maximum refresh rate

60 Hz

Maximum operating distance

3 m

Supported graphics resolutions

1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160

Returns & Warranty

Comsys Price

$631.34
On Sale

Save $93.89 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $157.84 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN TRUE 4K 8 PORT HDMI SWITCH

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection and Instant Switching for a smooth video transition between HDMI ports. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.

Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.

Key features

  • Video port type: HDMI
  • HDMI ports quantity: 8
  • HDMI version: 2.0
  • HDMI in: 8
  • Number of HDMI outputs: 1
  • RS-232 ports: 1
  • DC-in jack: Yes
  • Material: Metal
  • Product colour: Black
  • HDCP: Yes
  • Maximum refresh rate: 60 Hz
  • Maximum operating distance: 3 m
  • Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
  • Bandwidth: 6 Gbit/s
  • Bandwidth: 600 MHz
  • Maximum resolution: 4096 x 2160 pixels
  • 3D: Yes
  • HD type: 4K Ultra HD
  • Input impedance: 100 Ω
  • Output impedance: 100 Ω
  • AC adapter input voltage: 5.3 V
  • Power consumption (typical): 3.73 W
  • Width: 158.3 mm
  • Depth: 437.2 mm
  • Height: 44 mm
  • Weight: 2.14 kg
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
