ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CE620-AT-U
  • MPN: CE620-AT-U

ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender…

ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0, Transmitter & receiver, Wired, 100 m, Cat5e, Cat6, Cat6a, Black, Metal

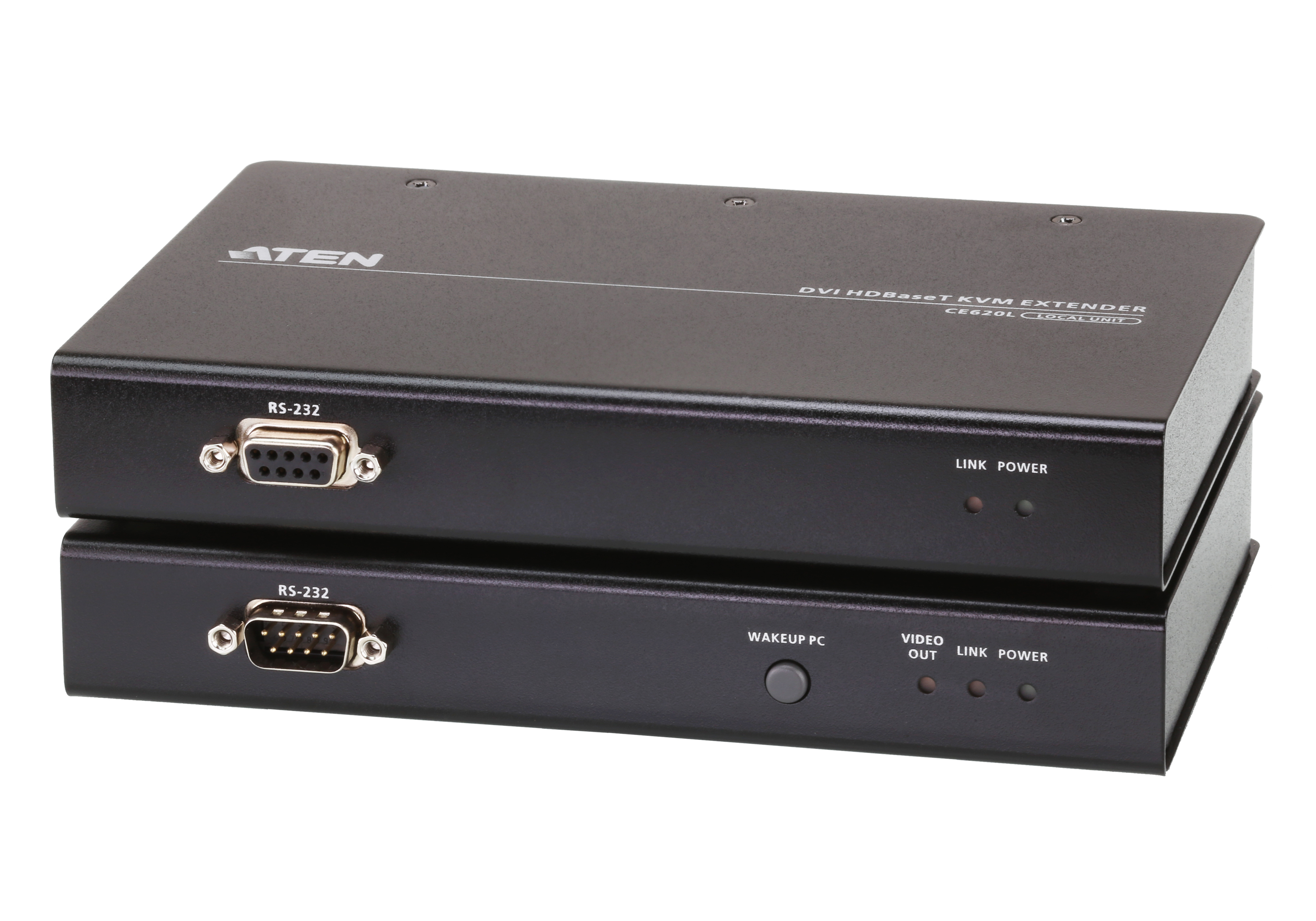

ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

Click or hover over image to enlarge

Brand:ATEN
MPN:CE620-AT-U

Part #: CE620-AT-U

Search this part on Google

Power consumption (transmitter) (max)

3 W

Power consumption (receiver) (max)

5.6 W

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

100 m

Cable types supported

Cat5e, Cat6, Cat6a

Product colour

Black

Material

Metal

Returns & Warranty

Comsys Price

$1,235.09
On Sale

Save $86.41 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $308.77 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 100 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Product colour: Black
  • Material: Metal
  • Transmitter local video port: Yes
  • Transmitter local video port type: DVI-D
  • Receiver local video port type: DVI-D
  • Power consumption (transmitter) (max): 3 W
  • Power consumption (receiver) (max): 5.6 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.3 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.3 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g
  • AC adapter included: Yes
  • Cables included: DVI
  • Manual: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Firmware upgradeable: Yes
