ATEN USB DVI OPTICAL KVM EXTENDER 600M

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: CE680-AT-U
  • MPN: CE680-AT-U

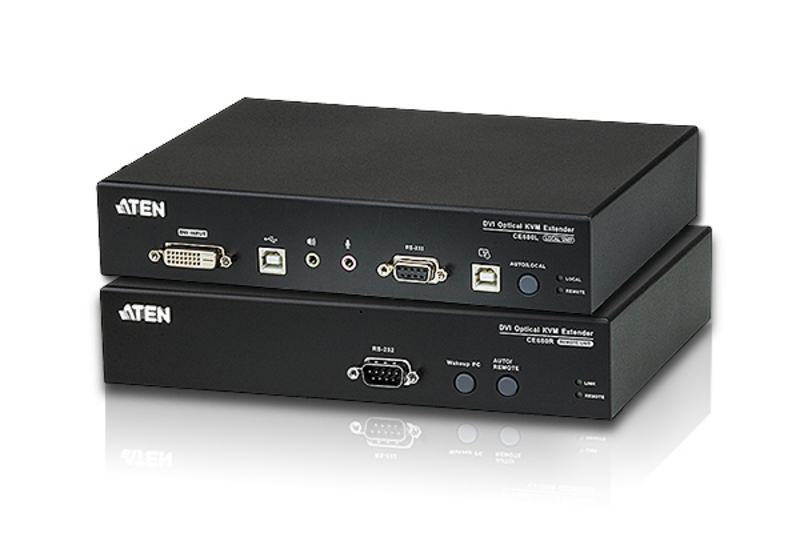

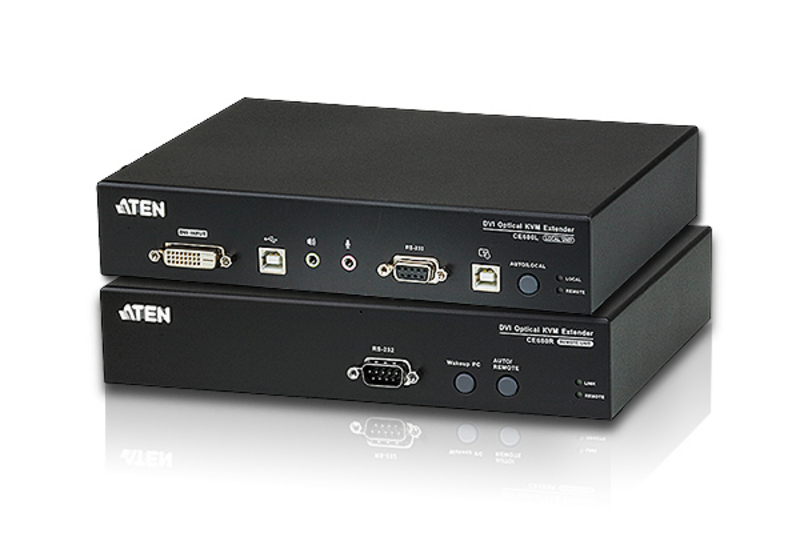

ATEN USB DVI Optical Fiber KVM Extender (600m)

ATEN USB DVI Optical Fiber KVM Extender (600m), Transmitter & receiver, Wired, 600 m, 1920 x 1200 pixels, 1920 x 1200, Black

ATEN USB DVI OPTICAL KVM EXTENDER 600M

Click or hover over image to enlarge

Brand:ATEN
MPN:CE680-AT-U

Part #: CE680-AT-U

Search this part on Google

AC adapter output voltage

5.3 V

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

600 m

Rack mounting

Yes

Maximum digital resolution

1920 x 1200 pixels

Supported resolutions

1920 x 1200

Product colour

Black

Returns & Warranty

Comsys Price

$2,963.54
On Sale

Save $216.49 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $740.89 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN USB DVI OPTICAL KVM EXTENDER 600M

The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances- up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
1 x CE680L DVI Optical KVM Extender (Local Unit)
1 x CE680R DVI Optical KVM Extender (Remote Unit)
1 x 2L-7D02U Custom KVM Cable Set (1.8m)
1 x LIN6-04U1-V1CG USB Cable (1.8m)
2 x 0AD8-1605-24M1 Power Adapters
1 x Mounting Kit
1 x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 600 m
  • Rack mounting: Yes
  • Maximum digital resolution: 1920 x 1200 pixels
  • Supported resolutions: 1920 x 1200
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: DVI-D
  • Transmitter local keyboard/mouse port type: USB
  • Receiver local video port type: DVI-D
  • Receiver local keyboard/mouse port type: USB
  • AC adapter output voltage: 5.3 V
  • Transmitter width: 21.5 cm
  • Transmitter depth: 16.3 cm
  • Transmitter height: 4.18 cm
  • Transmitter weight: 1.1 kg
  • Receiver width: 21.5 cm
  • Receiver depth: 16.3 cm
  • Receiver height: 4.18 cm
  • Receiver weight: 1.1 kg
  • Package width: 247 mm
  • Package depth: 556 mm
  • Package height: 153 mm
  • Package weight: 3.91 kg
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 10 more — see the Specifications tab.
