ATEN VGA CAT 5 EXTENDER (1280 X 1024@150M)

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE150A-AT-U
  • MPN: VE150A-AT-U

ATEN VGA Over Cat5e/6 Video Extender 150meter

ATEN VGA Over Cat5e/6 Video Extender 150meter, 1920 x 1200 pixels, AV transmitter & receiver, 150 m, Wired, Black

ATEN VGA CAT 5 EXTENDER (1280 X 1024@150M)

Click or hover over image to enlarge

Brand:ATEN
MPN:VE150A-AT-U

Part #: VE150A-AT-U

Search this part on Google

Power consumption (transmitter) (max)

1 W

Power consumption (receiver) (max)

1.2 W

Type

AV transmitter & receiver

Maximum resolution

1920 x 1200 pixels

Cable types supported

Cat5

Maximum transfer distance

150 m

Supported graphics resolutions

1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)

Material

Metal

Returns & Warranty

Comsys Price

$210.44
On Sale

Save $34.37 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $52.61 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN VGA CAT 5 EXTENDER (1280 X 1024@150M)

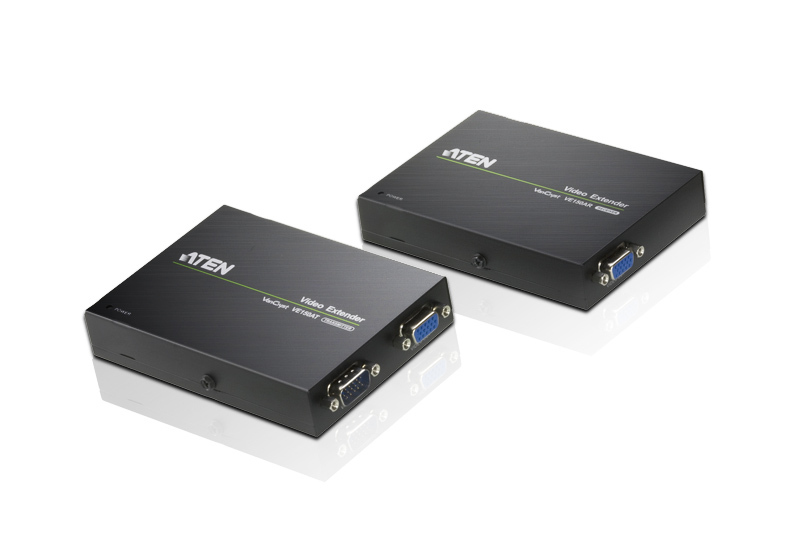

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 1920 x 1200 pixels
  • Cable types supported: Cat5
  • Maximum transfer distance: 150 m
  • Supported graphics resolutions: 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
  • Material: Metal
  • Rack mounting: Yes
  • Plug and Play: Yes
  • Impedance: 75 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • HDBaseT port: Yes
  • VGA (D-Sub) input ports: 1
  • Video in: 1 x HDB-15
  • Video out: 1 x HDB-15
  • Power consumption (transmitter) (max): 1 W
  • Power consumption (receiver) (max): 1.2 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Weight: 970 g
  • Receiver dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm
  • Receiver weight: 240 g
  • Transmitter dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm
  • Transmitter weight: 240 g
  • Quantity per pack: 2 pc(s)
  • Package width: 62 mm
  • Package depth: 283 mm
  • Package height: 173 mm
  • Package weight: 1.11 kg

+ 10 more — see the Specifications tab.
