ATEN VGA EDID EMULATOR WITH PROGRAMMER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VC010-AT
  • MPN: VC010-AT

ATEN VGA EDID Emulator 1920 x 1200 pixels

ATEN VGA EDID Emulator, Black, 1920 x 1200 pixels, 1080i, 1080p, 480i, 480p, HDB-15, HDB-15, 0 - 50 °C

ATEN VGA EDID EMULATOR WITH PROGRAMMER

Click or hover over image to enlarge

Brand:ATEN
MPN:VC010-AT

Part #: VC010-AT

Search this part on Google

Maximum video resolution

1920 x 1200 pixels

Supported video modes

1080i, 1080p, 480i, 480p

Product colour

Black

Harmonized System (HS) code

85176990

Host interface

HDB-15

Output interface

HDB-15

Width

79 mm

Depth

77.6 mm

Returns & Warranty

Comsys Price

$118.44
On Sale

Save $33.86 off RRP

Available to Order

Ships in 1–5 business days

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVISAAMEXPayPayafterpayKlarna.
Afterpay

Four payments of $29.61 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN VGA EDID EMULATOR WITH PROGRAMMER

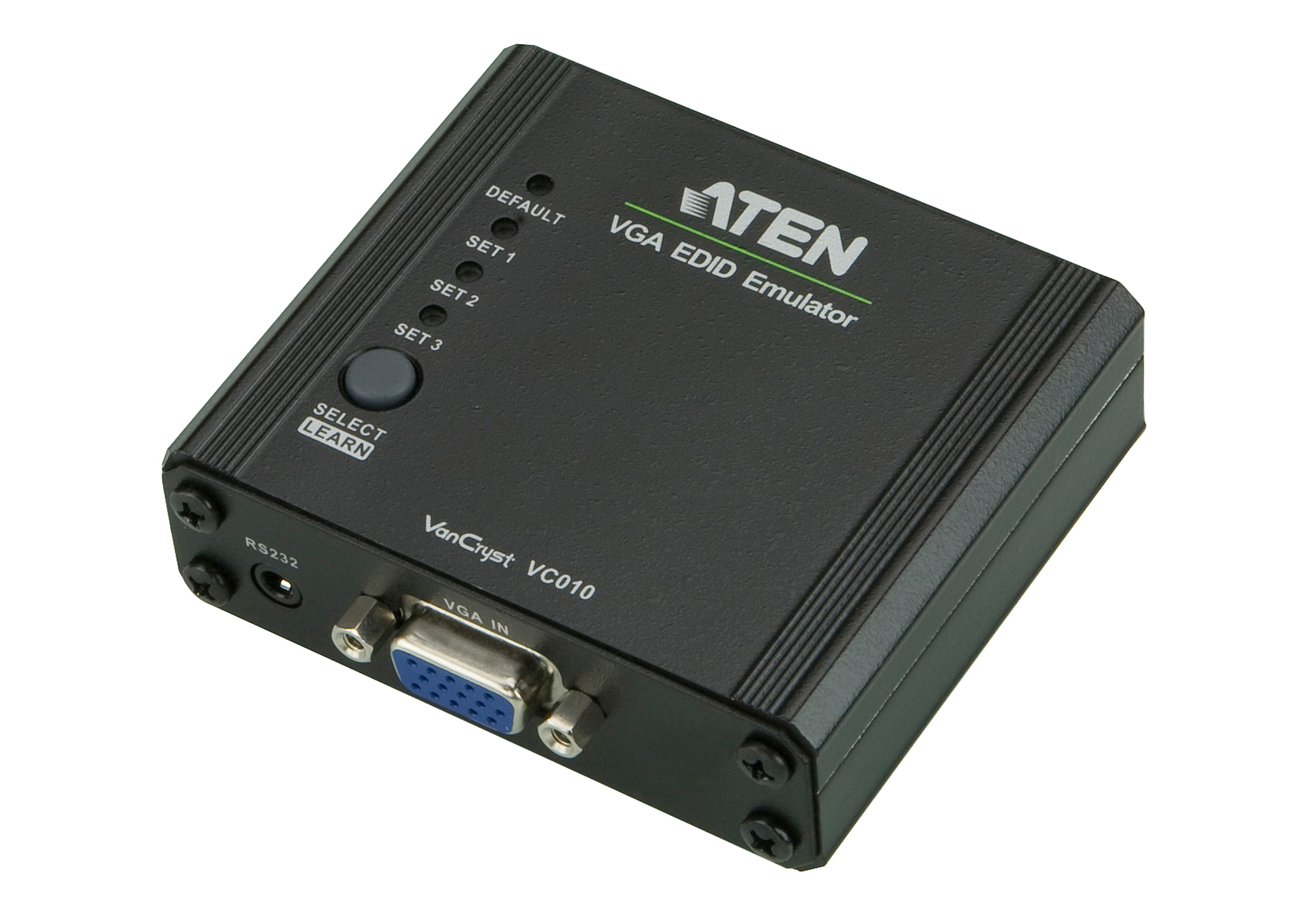

The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.

The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Key features

  • Product colour: Black
  • Maximum video resolution: 1920 x 1200 pixels
  • Supported video modes: 1080i, 1080p, 480i, 480p
  • Host interface: HDB-15
  • Output interface: HDB-15
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 79 mm
  • Depth: 77.6 mm
  • Height: 25.5 mm
  • Weight: 150 g
  • Harmonized System (HS) code: 85176990
