AXIUM 4 IR out Connecting block with powersupply connectionIR
4 IR out Connecting Block
- Brand: Axium
- Category: Peripherals & Accessories
- SKU: AXEX42
- MPN: AXEX42

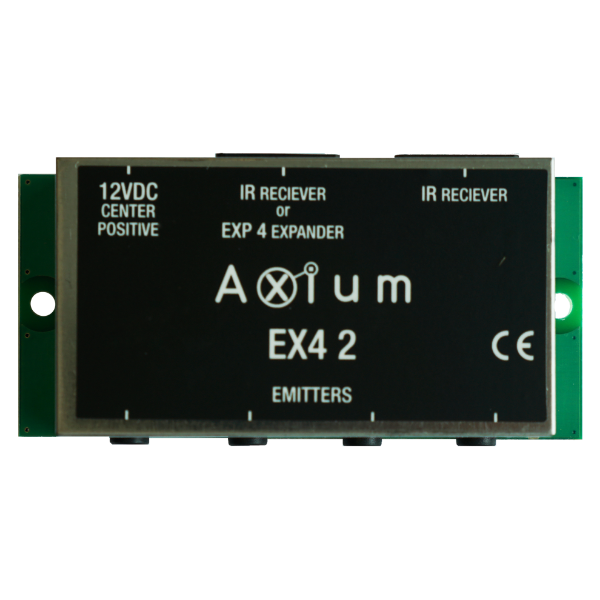

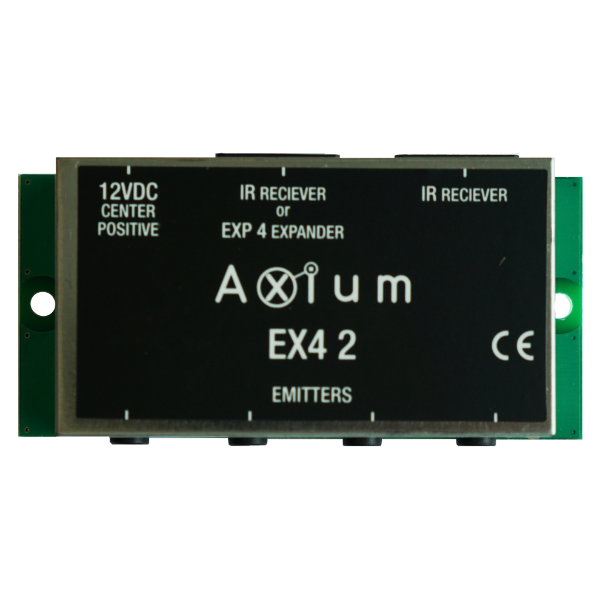

AXIUM 4 IR out Connecting block with powersupply connectionIR
The new AXEX42 has two RJ45 sockets. These can accommodate either 2x IRFX3 Single IR Receivers or you can connect our EXP4 Expander board to add a further 4x IRFX3 IR Receivers to the system.
Click or hover over image to enlarge
Comsys Price
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $12.65 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
AXIUM 4 IR out Connecting block with powersupply connectionIR
The new AXEX42 has two RJ45 sockets. These can accommodate either 2x IRFX3 Single IR Receivers or you can connect our EXP4 Expander board to add a further 4x IRFX3 IR Receivers to the system. The EX42 also allows for up to 4x Single SIR1 Emitters to be connected. The AXEX42, has been designed to give optimal performance in any IR installation including eliminating current hogging, giving each IR port equal current distribution. In addition, EMI shielding has been Integrated to provide even greater noise rejection from the surrounding environment. With its slim profile and small footprint, the AXEX42 easily fits into small places and the RJ45 connectors makes hook-up a breeze.
FEATURES:
- Ingenious IR return path over the CAT cable via the RJ45 connector
- Excellent IR distribution giving equal output to all ports.
- 4x IR Emitter Ports
- Wide input voltage range: 8V~16V DC 50mA
- Multiple AX-IRFX3 receivers may be connected in parallel
- Superior EMI rejection
- 2x RJ45 connection options
- Dimensions:
- Width 34mm
- Length 72mm
- Height 16mm
Inc GST
$50.59
