AXIUM AX-S4 Current Sensor. Detects either mainscurrent, video
AX-S4 Current Sensor
- Brand: Axium
- Category: Peripherals & Accessories
- SKU: AXS4
- MPN: AXS4
AXIUM AX-S4 Current Sensor. Detects either mainscurrent, video
The Axium AXS4 Quad Sensor can accurately detect either Mains Current, Digital Audio, Analog Audio or Video signals without interfering with the original signal by using a Magnetic Sensor to detect…
Click or hover over image to enlarge
Comsys Price
Save $35.17 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $32.49 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
AXIUM AX-S4 Current Sensor. Detects either mainscurrent, video

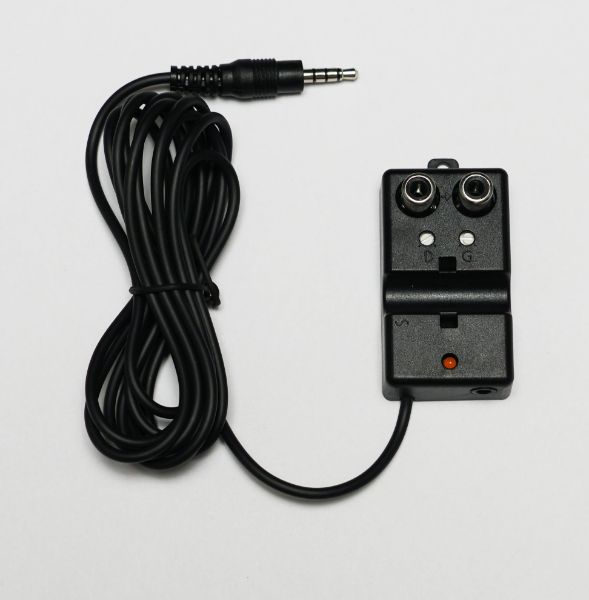

The Axium AXS4 Quad Sensor can accurately detect either Mains Current, Digital Audio, Analog Audio or Video signals without interfering with the original signal by using a Magnetic Sensor to detect very small levels of current.
In addition, this clever device has a manual gain adjustment to enable the detection of the smallest signals and an adjustable "detect off delay" so gaps between songs do not cause false triggers. The AXS4 is designed to connect to the IR out of the Axium AXR4D or the (Legacy) AXR4 Controllers. This connection allows "flag" status setting in macros for accurate source or system status in an Axium system.
The IR port that is used on the AXR4 router is provided as an output on the AXS4. Standalone connection to 3rd party systems is made available by following the pinouts in the instruction sheet provided.
FEATURES:
- Switch ‘On’ Resistance: 3.5Ω
- Switch Current: 0.22A continuous
- 0.8A pulsed <300µs
- Detect LED indicator – Orange
- RCA input resistance: 200KΩ
- Delay adjustment: 2~20 seconds
- Gain: adjustment range suitable for detecting a minimum of:
- 0.1A current in Mains conductor (must be firmly seated & optimally rotated in the sensing channel)
- 1.0V CVBS composite video or Y component video signal
- 0.5V SPDIF Digital Audio signal
- 0.5V RMS analogue audio signal
- Cable length: 2m
- Isolation:
- RCA: 200VDC (500VAC)
- Current: >5KV~
- IR emitter output socket
- Mounting flange
- Power requirement: 12V DC 10mA
- Dimensions: 32mm x 55mm x 14mm
- Weight: 32g - excluding packaging
- Ambient Operating Temperature: 0°C~50°C
- Ambient Operating Humidity: 5%~95% non- condensing
- Approvals: C-Tick CISPR22, FCC, RoHs
Inc GST
$129.94
