AXIUM IR Kit 12 IR Receiver kit. Ingenious IR return path over the
IR Kit 12 IR Receiver kit Ingenious IR Return Path Over CATx Cable via RJ45.
- Brand: Axium
- Category: Ethernet Cables
- SKU: AXIRKIT12
- MPN: AXIRKIT12
AXIUM IR Kit 12 IR Receiver kit. Ingenious IR return path over the

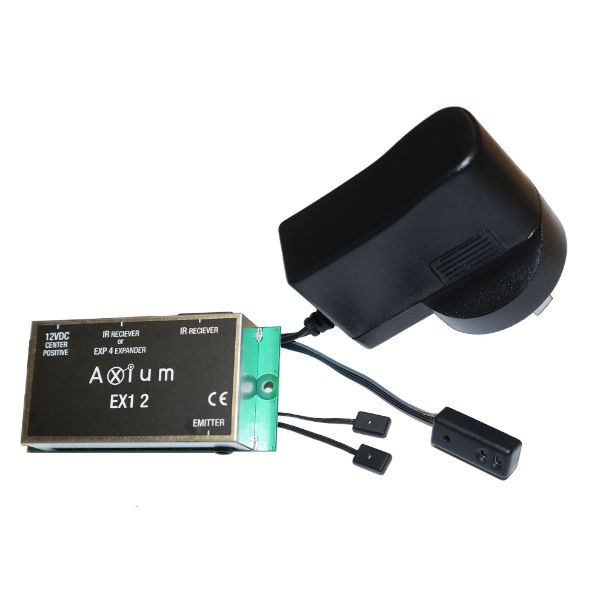

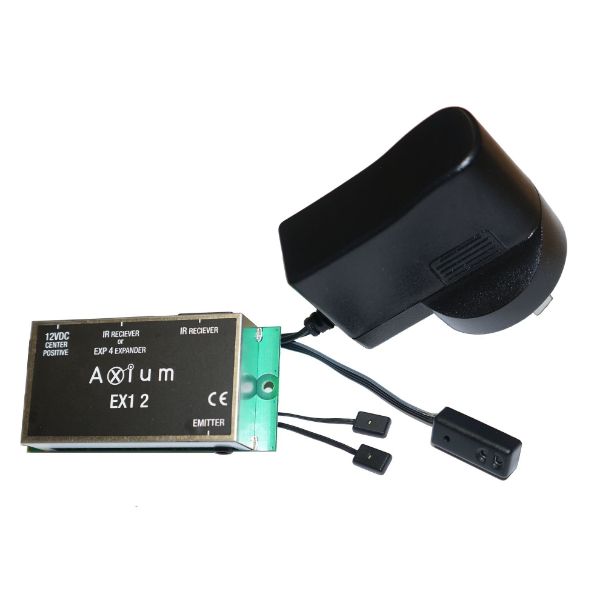

Each kit contains a single IRFX3 IR receiver, an EX12 connecting block, 1x Slimline dual emitters and 1x Power Supply.
Click or hover over image to enlarge
Comsys Price
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $24.44 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
AXIUM IR Kit 12 IR Receiver kit. Ingenious IR return path over the
Each kit contains a single IRFX3 IR receiver, an EX12 connecting block, 1x Slimline dual emitters and 1x Power Supply.
FEATURES:
- Ingenious IR return path over the CATx cable via the RJ45 connector
- 2nd RJ45 connectors to add an additional IRFX3 or expand out to the EXP4 connector to add an additional 4x IRFX3 Singles
- Excellent IR receiver range: 8m ± 45° (Depends on ambient light levels and remote-control strength)
- Receives/processes very short pulse burst codes systems as used by Foxtel and Sky
- Wide input voltage range: 8V~16V DC 50mA
- Amplifier ON indicator and IR reception “flashback” indicator. (Both can be defeated)
- Default modulation frequency: 38KHz ± 1%
- The receiver has excellent off-axis reception, giving >50% range when 45° off-axis
- Flat 4 core 28AWG 2m black lead on the IRFX3
- Rear/ Bottom side cable exit
- Enhanced EMI immunity with Data Stream Filtering
- Rejects IR disturbances that can slow down or cause intermittent problems on IR systems
- See individual data sheets for full specification and dimensions
- Approvals: C-Tick CISPR22, FCC
Inc GST
$97.74
