AXIUM IR Kit 42 IR Receiver. Ingenious IR return path over the
IR Kit 42 IR Receiver Ingenious IR Return Path Over CATx Cable via RJ45.
- Brand: Axium
- Category: Ethernet Cables
- SKU: AXIRKIT42
- MPN: AXIRKIT42
AXIUM IR Kit 42 IR Receiver. Ingenious IR return path over the

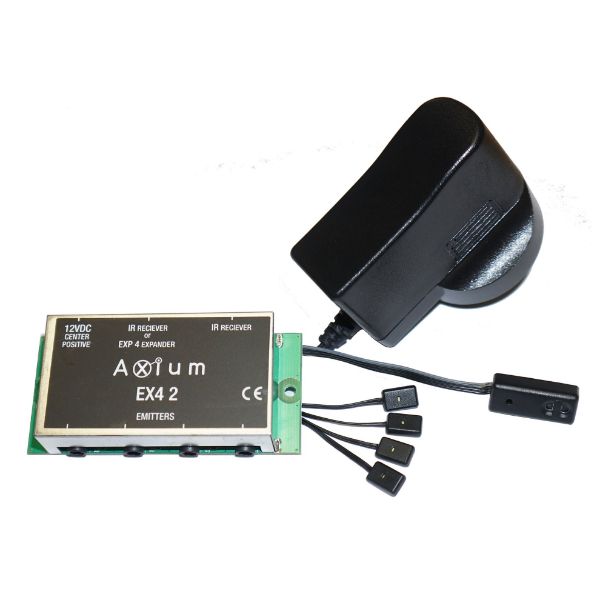

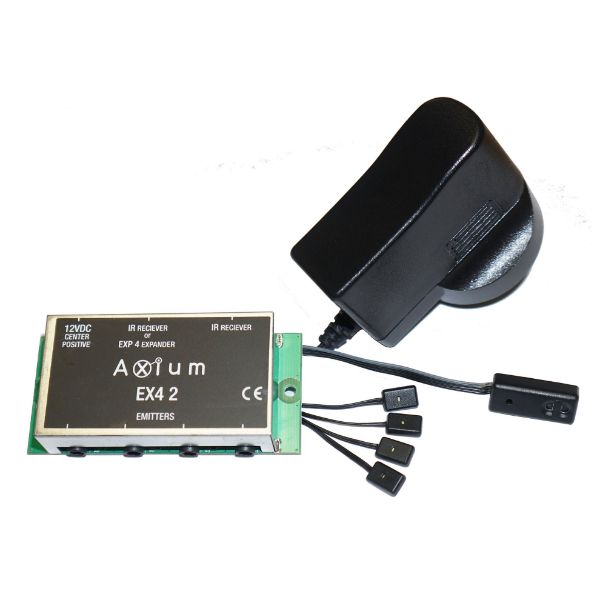

AX-IR KIT42. Each kit contains a single IRFX3 IR receiver, an EX42 connecting block, 4 Slimline single emitters and 1x Power Supply.
Click or hover over image to enlarge
Comsys Price
Save $29.42 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $71.30 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
AXIUM IR Kit 42 IR Receiver. Ingenious IR return path over the
AX-IR KIT42. Each kit contains a single IRFX3 IR receiver, an EX42 connecting block, 4 Slimline single emitters and 1x Power Supply.
FEATURES:
- Ingenious IR return path over the CATx cable via the RJ45 connector
- 2nd RJ45 connectors to add an additional IRFX3 or expand out to the EXP4 connector to add an additional 4x IRFX3 Singles
- Excellent IR receiver range: 8m ±45° (Depends on ambient light levels and remote-control strength)
- Receives/processes very short pulse burst codes systems as used by Foxtel and Sky
- Wide input voltage range: 8V~16V DC 50mA
- Amplifier ON indicator and IR reception “flashback” indicator. (Both can be defeated)
- Default modulation frequency: 38KHz ± 1%
- The receiver has excellent off-axis reception, giving >50% range when 45° off-axis
- Flat 4 core 28AWG 2m black lead on the IRFX3
- Rear/ Bottom side cable exit
- Enhanced EMI immunity with Data Stream Filtering
- Rejects IR disturbances that can slow down or cause intermittent problems on IR systems
- See individual data sheets for full specification and dimensions
- Approvals: C-Tick CISPR22, FCC
Inc GST
$285.19
