CTC UNION 1 Port Gigabit 48V DC PoE Injector. -40C~75C. PoE+ power
1 Port Gigabit 48V DC PoE Injector. -40C 75C. PoE+ power budget 48V DC/60W. Power
- Brand: CTCunion
- Category: Network Accessories
- SKU: INJ-IG01-PHE
- MPN: INJ-IG01-PHE
CTCunion CTC UNION 1 Port Gigabit 48V DC PoE Injector. -40C~75C. PoE+ power

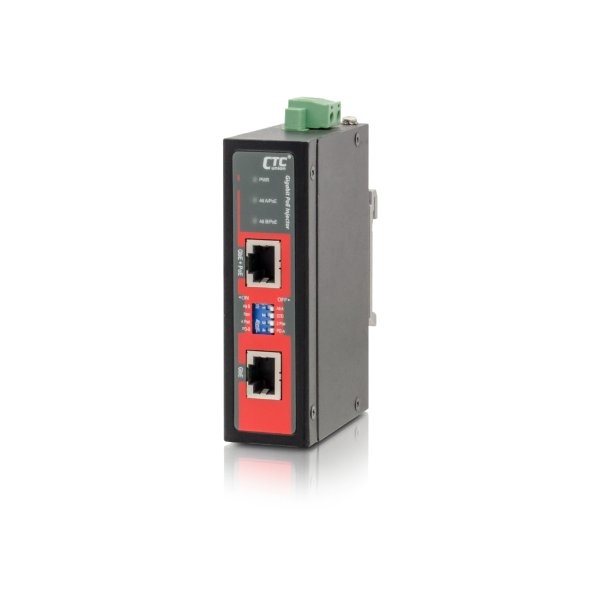

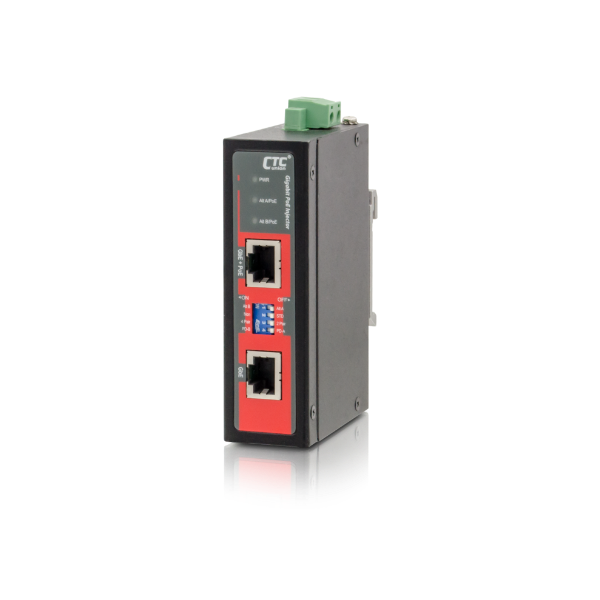

INJ-IG01-PH is an industrial grade, single port, gigabit Ethernet PoE (Power over Ethernet) injector with power boost technology.
Click or hover over image to enlarge
Comsys Price
Save $63.70 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $70.72 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 1 Port Gigabit 48V DC PoE Injector. -40C~75C. PoE+ power
INJ-IG01-PH is an industrial grade, single port, gigabit Ethernet PoE (Power over Ethernet) injector with power boost technology. PoE describes a system to pass electrical power safely, along with data, on Ethernet cabling. The original IEEE 802.3af-2003 PoE standard provides up to 15.4 W of DC power to each device. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.
Features
- Provides 1 port IEEE802.3at/af PoE Injector
- Power output 15.4W, 30W, 36W, 60W select by DIP SW
- PoE Mode A/B Select by DIP SW
- 4 Pairs PD handshake mode select by DIP SW (Such as AXIS® IP cam)
- Wide operating temperature -40°C~75°C (INJ-IG01-PHE)
- IP30 rugged metal housing and fanless
- Industrial power supply purchased separately - MDR-40-24
- 5 Year Warranty
Inc GST
$282.89
