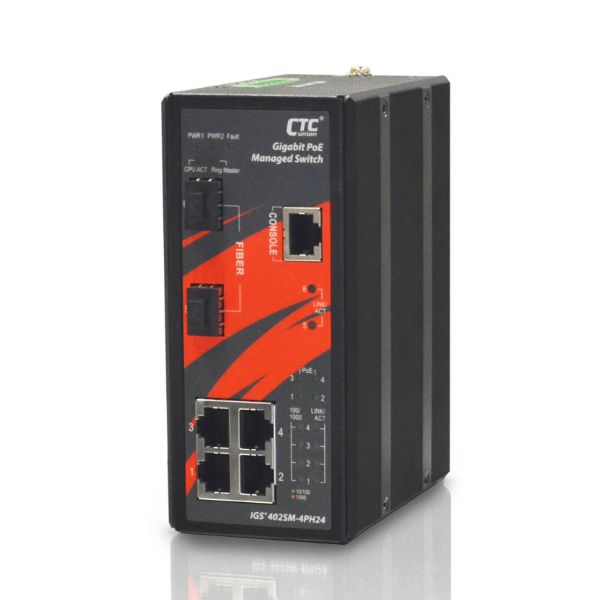

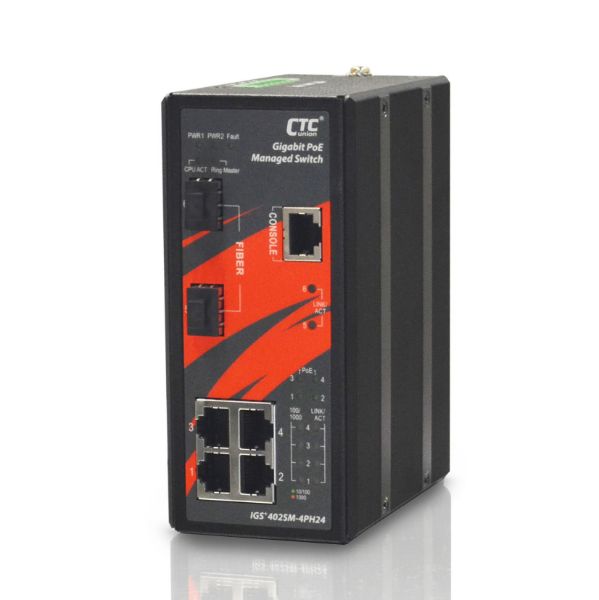

CTC UNION 4 Port Gigabit Managed PoE Switch. -10C ~60C.
4 Port Gigabit Managed PoE Switch. -10C 60C. 4x 10/100/1000Base-T(X)
- Brand: CTCunion
- Category: Switches
- SKU: IGS-402SM-4PH24
- MPN: IGS-402SM-4PH24
CTCunion CTC UNION 4 Port Gigabit Managed PoE Switch. -10C ~60C.
This series models are managed industrial grade gigabit PoE (Power over Ethernet) switches with 4/8/16 10/100/1000Base-T PoE ports and 2/3/8 Gigabit/Fast SFP ports that provide stable and reliable…
Click or hover over image to enlarge
Comsys Price
Save $335.19 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $566.37 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 4 Port Gigabit Managed PoE Switch. -10C ~60C.
This series models are managed industrial grade gigabit PoE (Power over Ethernet) switches with 4/8/16 10/100/1000Base-T PoE ports and 2/3/8 Gigabit/Fast SFP ports that provide stable and reliable Ethernet transmission. With dual power input design, the series models can provide redundant mechanisms for critical applications that need always-on connections. These switches can also operate either at a standard operating temperature range (-10°C to 60°C) or at a wide operating temperature range (-40°C to 75°C) so as to fulfil the special needs of industrial automation applications.
Features:
- 4x10/100/1000Base-T RJ-45+ 2x100/1000Base-X SFP with 4xPoE+, total 120W power budget
- 24/48VDC (20~57V DC) redundant dual input power with built-in very high-efficiency booster (94~97%) to rise up 55 VDC for PoE output (IGS-402SM-4PH24)
- Regulated PoE output voltage (55VDC) to stabilise PoE device, and guarantee delivery PoE power distance to 100M
- Provides 4/8 port IEEE802.3af / 802.3at PoE output (30W per Port)
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Provides 5 ring instances that each can support μ-Ring, u-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device
- μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC-based VLAN, IP subnet-based VLAN, Protocol-based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Flexibility security: Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Software upgrades via TFTP and HTTP, redundant firmware to avoid upgrade failure
- Supports IEEE1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
- Industrial power supply purchased separately - NDR-120-48
- 5 Year Warranty
High-Efficiency Boost Technology for PoE
Inc GST
$2,265.49
