CTC UNION 5 Port Fast Ethernet Unmanaged Switch.-10C~60C.
5 Port Fast Ethernet Unmanaged Switch.-10C 60C. 5x 10/100BaseT(X). Compact
- Brand: CTCunion
- Category: Switches
- SKU: IFS-500C
- MPN: IFS-500C
CTCunion CTC UNION 5 Port Fast Ethernet Unmanaged Switch.-10C~60C.

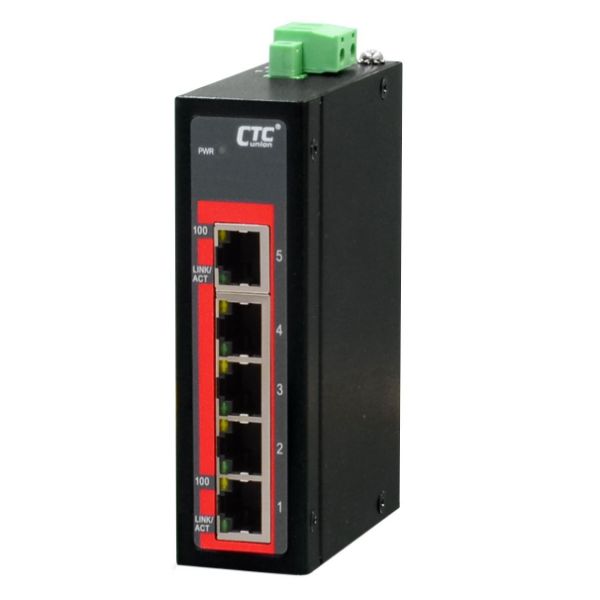

This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5x 10/100Base-TX ports that provide stable and reliable Ethernet transmission.
Click or hover over image to enlarge
EMI
FCC Part 15 Subpart B Class A,CE EN55022 Class A
EMS
EN61000-4-2 (ESD) Level 3, Criteria B
LED
Per unit: Power (Green)
MTBF
1,013,759 Hours
Shock
IEC 60068-2-27
Weight
220g
EMC/EMS
CE
Housing
Rugged Metal, IP30 Protection and Fanless
Comsys Price
Save $30.28 off RRP
In Stock
30 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $35.65 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 5 Port Fast Ethernet Unmanaged Switch.-10C~60C.
This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5x 10/100Base-TX ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C~60°C) and wide operating temperature range models (-40°C~75°C) fulfil the special needs of industrial automation applications.
FEATURES:
- Wide range input power 12/24/48V DC (9.6V~60V DC), or AC 24V (18V~36V AC)
- IP30 rugged metal housing and Fanless
- Compact size for easy installation
- Wide operating temperature -40°C~75°C (for E model only)
- Provides broadcast storm protection
- Very low power consumption
- Supports flow control
- CE, FCC, and EN50121-4 for railway traffic certification
- Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Industrial power supply purchased separately - MDR-40-24
- 5 Year Warranty
Inc GST
$142.59
