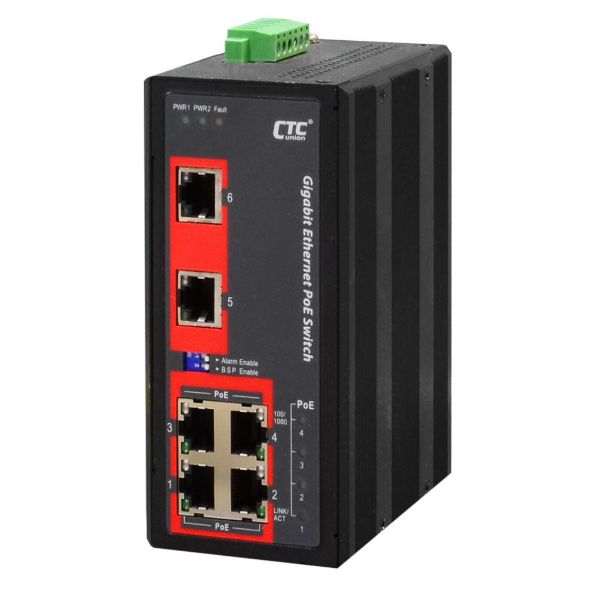

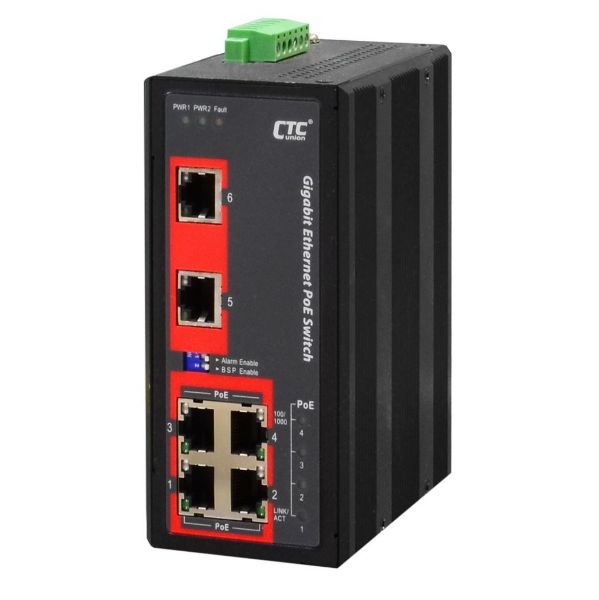

CTC UNION 6 Port Gigabit Unmanaged PoE Switch. -40C~+75C.
6 Port Gigabit Unmanaged PoE Switch. -40C +75C. 6x 10/100/1000Base-T (X).
- Brand: CTCunion
- Category: Switches
- SKU: IGS-600-4PHE24
- MPN: IGS-600-4PHE24
CTCunion CTC UNION 6 Port Gigabit Unmanaged PoE Switch. -40C~+75C.
This series models are 6 port unmanaged industrial grade gigabit PoE switches with 4x 10/100/1000Base-T PoE ports that provide stable and reliable Ethernet transmission.
Click or hover over image to enlarge
Comsys Price
Save $179.88 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $219.36 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 6 Port Gigabit Unmanaged PoE Switch. -40C~+75C.
This series models are 6 port unmanaged industrial grade gigabit PoE switches with 4x 10/100/1000Base-T PoE ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.
PoE Gigabit Ethernet Switch Transmission
Features
- 6x10/100/1000Base-T RJ-45 (Total 6 Port) with 4xPoE+, total 120W power budget (IGS-600-4PH24)
- Provides 4-port IEEE802.3at/af PoE output (30W/Per Port )
- 24/48VDC (20~57VDC) redundant dual input power with built-in very high-efficiency booster (94~97%) to rise up 55 VDC for PoE output
- Regulate PoE output voltage (55V DC) to stabilise PoE device, and guarantee delivery PoE power distance to 100M
- Supports broadcast storm protection
- Supports power failure alarm message by relay
- Supports flow control
- Jumbo frame support
- Supports DIN-Rail or wall mounting installation
- IP30 rugged metal housing and fanless
- Wide operating temperature -40°C~75°C (for E model only)
- UL60950-1, CE, FCC, EN50121-4 certification
- Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Industrial power supply purchased separately - NDR-120-48
- 3 Year Warranty
Inc GST
$877.44
