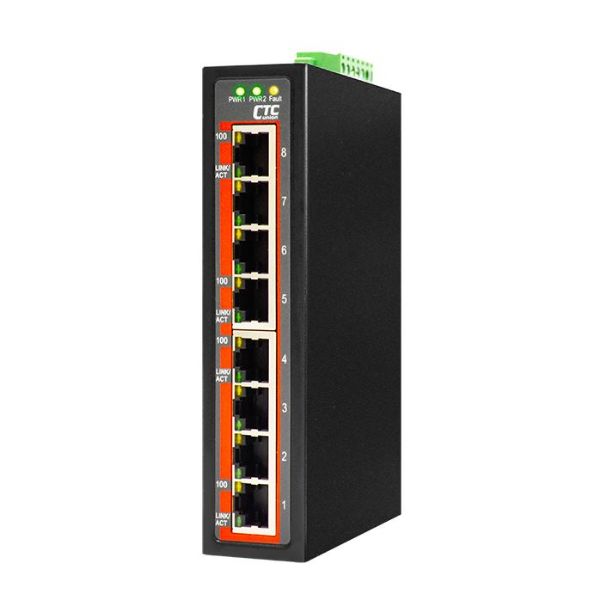

CTC UNION 8 Port Fast Ethernet Unmanaged Switch. -40C~+75C.
8 Port Fast Ethernet Unmanaged Switch. -40C +75C. 8x 10/100BaseT(X). Power
- Brand: CTCunion
- Category: Switches
- SKU: IFS-800-E
- MPN: IFS-800-E
CTCunion CTC UNION 8 Port Fast Ethernet Unmanaged Switch. -40C~+75C.
This series models are non-managed industrial grade gigabit switches with 4/8x 10/100/1000Base-T ports and 0~2 fibre ports, that provide stable and reliable Ethernet transmission.
Click or hover over image to enlarge
EMS
EN61000-4-2 (ESD) Level 3, Criteria B
LED
Per unit: Power (Green)
MTBF
1,013,759 Hours
Shock
IEC 60068-2-27
DC 12V
0.9W
DC 24V
1.2W
DC 48V
2W
Weight
220g
Comsys Price
Save $59.69 off RRP
In Stock
12 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $71.87 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 8 Port Fast Ethernet Unmanaged Switch. -40C~+75C.
This series models are non-managed industrial grade gigabit switches with 4/8x 10/100/1000Base-T ports and 0~2 fibre ports, that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C~60°C) and wide operating temperature range models (-40°~75°C) fulfil the special needs of industrial automation applications.
FEATURES:
- 8x 10/100Base-TX RJ45 (IFS-800)
- Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
- IP30 rugged metal housing and Fanless
- Wide operating temperature -40°C ~75°C (for E model only)
- Provides broadcast storm protection (IFS-800)
- Supports DIP SW for alarm setting and broadcast storm protection
- Supports power failure alarm message by a relay
- Supports flow control
- CE, FCC,and EN50121-4 certification
- Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Industrial power supply purchased separately - MDR-40-24
- 5 Year Warranty
Inc GST
$287.49
