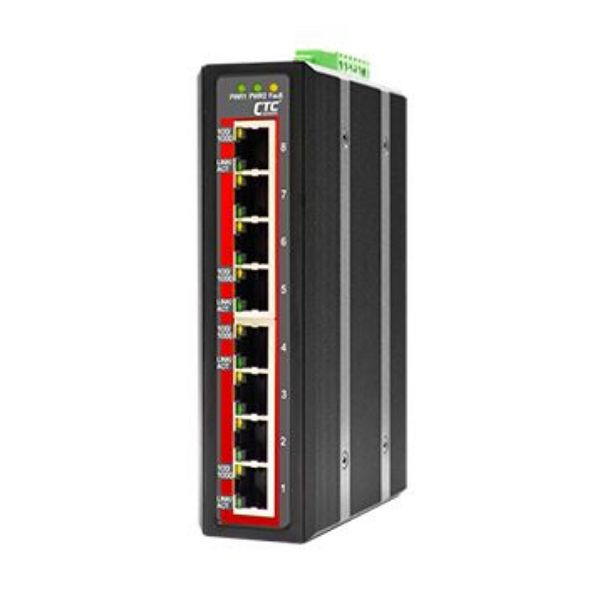

CTC UNION 8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T(X).
8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T -40C 75C. Power consumption
- Brand: CTCunion
- Category: Switches
- SKU: IGS-800-E
- MPN: IGS-800-E
CTCunion CTC UNION 8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T(X).
The series models are 5/8-port 10/100/1000Base-T Ethernet non-managed Gigabit switches, with either 1 or 0 port 1000Base-X SFP port, that provide stable and reliable Ethernet transmission.
Click or hover over image to enlarge
Comsys Price
Save $85.01 off RRP
In Stock
12 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $103.21 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION 8 Port Gigabit Unmanaged Switch. 8x 10/100/1000Base-T(X).
The series models are 5/8-port 10/100/1000Base-T Ethernet non-managed Gigabit switches, with either 1 or 0 port 1000Base-X SFP port, that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10°C to 60°C) and wide operating temperature range models (-40°C to 75°C) fulfil the special needs of industrial automation applications.
Features
- 8x 10/100/1000Base-T RJ-45 (IGS-800)
- Supports broadcast storm protection
- Supports power failure alarm message by relay
- Supports flow control
- Jumbo frame support
- Support IEEE802.3az Green Ethernet
- Supports auto-negotiation and auto-MDI/MDI-X
- Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
- IP30 rugged metal housing, Fanless
- Supports DIN-Rail or wall mounting installation
- Wide operating temperature -40°C~75°C (for E model only)
- EN50121-4, CE, FCC Certification
- Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Industrial power supply purchased separately - MDR-40-24
- 3 Year Warranty
Inc GST
$412.84
