CTCunion CTC UNION Managed Media Converter 10/100/1000Base-T(X) to 100/1000

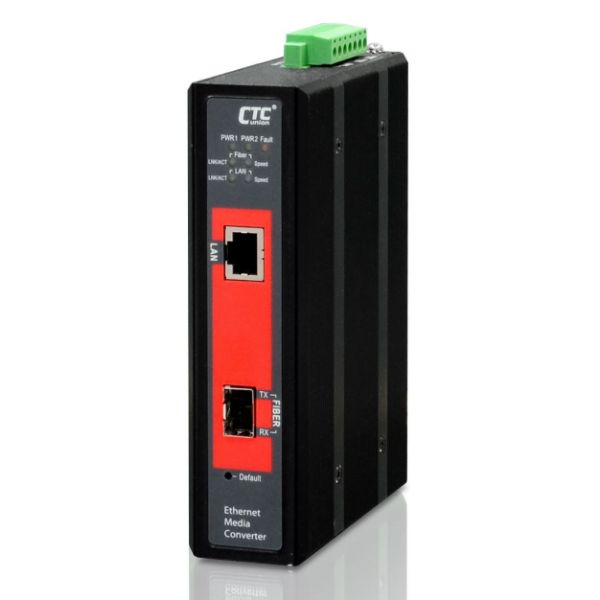

IMC-1000MS is a 10/100/1000Base-T to 100/1000Base-X manageable gigabit Ethernet media converter which offers dual speed fibre transmission. Housed in rugged DIN rail or wall mountable enclosures, these converters are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many militaries and utility market applications where environmental conditions exceed commercial product specifications. The converters are manageable by Web, SNMP or In-Band management for Operation, Administration, Maintenance & Provisioning, which includes bandwidth control, speed, VLAN, Diagnostic, storm filter and converter configurations. In addition, network administrators can manage IMC-1000MS via standard SNMP manager such as SmartView™. It also provides loop-back test and dying gasp, and can be monitored from a centrally located OAM-enabled FRM220-1000MS converter via remote in-band management.

FEATURES:

• Conversion between 10/100/1000Base-T and 100/1000Base-X Fiber cable interface
• Supports Dual Rate (100/1000) SFP for selectable Fast or Gigabit speed on fibre
• Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
• IP30 rugged metal housing and fanless
• Wide operating temperature -20°C~75°C (IMC-1000MS-E)
• UL60950-1, CE, FCC, RailWay traffic EN50121-4 certification
• Industrial grade EMS, EMI EN61000-6-2, EN61000-6-4 certification
• MIB counters
• Supports LFPT (Link Fault Pass Through)
• Auto Laser Shutdown (ALS)
• Supports SmartView for centralised management
• Web management
• SNMP management
• Supports 16 IEEE 802.1Q Tag VLAN Group
• SNMP alarm traps for power loss and port link down
• Supports in-band management from FRM220 Chassis with FRM220-1000MS
• Industrial power supply purchased separately - MDR-40-24
• 5 Year Warranty
