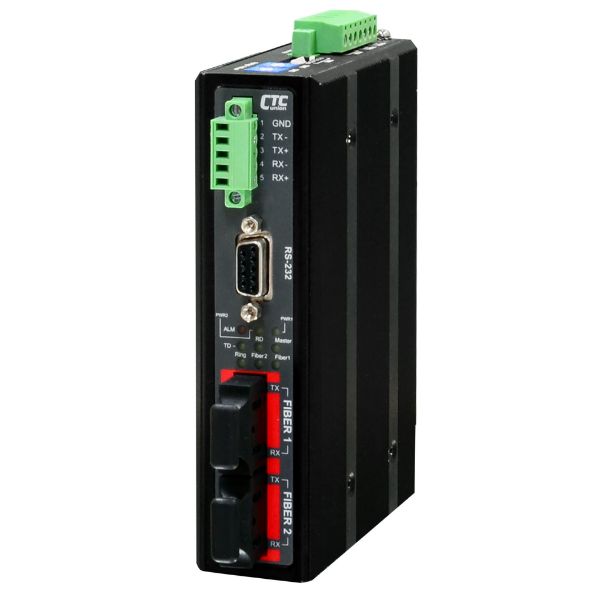

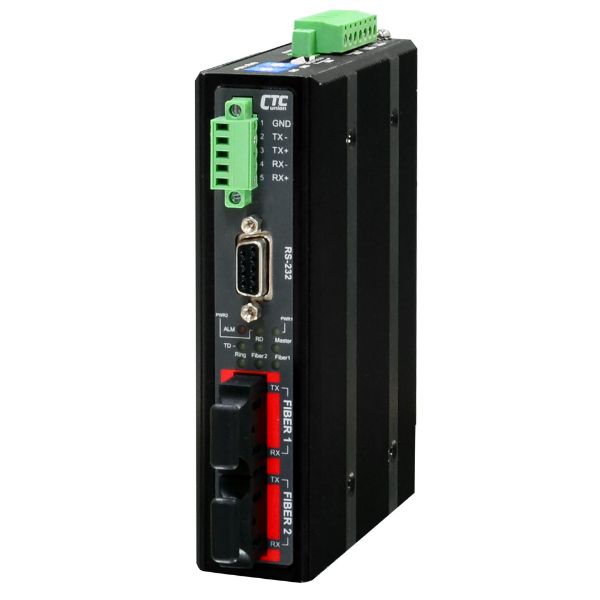

CTC UNION Serial To Fibre Daisy Chain Media Converter. 2km.
Serial To Fibre Daisy Chain Media Converter 2km.
- Brand: CTCunion
- Category: Network Accessories
- SKU: IFC-FDC-SC002
- MPN: IFC-FDC-SC002
CTCunion CTC UNION Serial To Fibre Daisy Chain Media Converter. 2km.
IFC Series converters are capable of selecting interface modes for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and feature a three-way…
Click or hover over image to enlarge
Comsys Price
Save $178.13 off RRP
In Stock
12 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $197.80 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTC UNION Serial To Fibre Daisy Chain Media Converter. 2km.
IFC Series converters are capable of selecting interface modes for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and feature a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs. IFC Series converters are also available in two operating temperature ranges, a standard -10°C to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC Series are reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments.
Features
- Supports 2 fibre link (IFC-FDC)
- Supports dual channel communication, including Triple-Way communication, and Two-Way communication
- Extend serial transmission distance up to 2km
- Supports several topologies , cable redundancy, ring redundancy, daisy chain, point to point (IFC-FDC)
- Redundant dual power inputs (12/24/48VDC)
- Supports RS-232, RS-422, RS-485 (2/4 wire) transmission to dual fibre connections
- Enhanced serial baud rate up to 1024kpbs
- 2.5KV isolation for serial signal
- Supports relay output for power or link failure warning
- Hardened housing with IP30 protection
- Fanless and DIN-Rail design for harsh industrial environment
- Adjustable pull high/low resistor and terminator for RS-422/485 transmission
- Industrial power supply purchased separately - MDR-40-24
- 5 Year Warranty
Inc GST
$791.19
