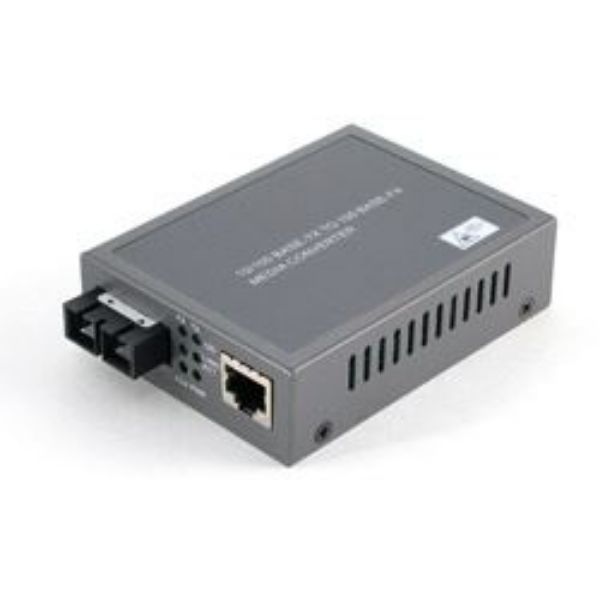

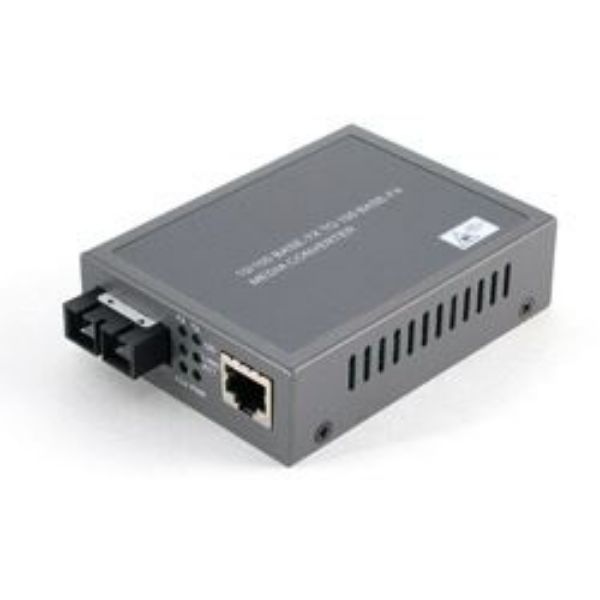

CTS 10/100Base-TX to 100Base-FX SC Multimode Media Converter.
10/100Base-TX to 100Base-FX SC Multimode Media Converter. Fast Ethernet
- Brand: CTS
- Category: Network Accessories
- SKU: LAN-100BTFC
- MPN: LAN-100BTFC
CTS 10/100Base-TX to 100Base-FX SC Multimode Media Converter.
Features: The Worldwide Effortless and Reliable Media Converter The almost “set-it-and-forget-it” media converter is for minimising network implementation and maintenance efforts 9K Bytes Jumbo Frame…
Click or hover over image to enlarge
H/W Specification
Power Requirement
Interface TP Port - LED
Environmental Condition
Standards - Other Features
EMC/Safety
F/O Port - Ethernet Features
Dimension & Weight
100Base-FX x 1 - Support 9K Bytes jumbo frame Support Flow Control
Size: 71 x 94 x 26mm (WxDxH) Shipping Weight: 0.6KG
10/100Base-TX RJ45 x 1 - Power, FDX, Status, Speed, F/O Link/Act, TX Link/Act
Operation: 0°C~50°C Storage Temperature: -20°C~60°C Humidity: 5%~90%, non-condensing
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX IEEE 802.3x Flow Control - Rare Pa
FCC Class A, CE * For further reports, please contact us for the update
Store and forward switching mechanism Auto-Cross over for MDI/MDI-X in TP port A
Power adaptor AC input: 100V~240V AC Frequency range: 50~60Hz DC output: 5V, 1.6A Power Consumption: 2.5W
Comsys Price
Save $61.97 off RRP
In Stock
20 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $47.15 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTS 10/100Base-TX to 100Base-FX SC Multimode Media Converter.
Features:
- The Worldwide Effortless and Reliable Media Converter
- The almost “set-it-and-forget-it” media converter is for minimising network implementation and maintenance efforts
- 9K Bytes Jumbo Frame Size
- Support jumbo frame size 9K bytes to ease the network traffic loading and facilitate IPTV service
- Link Alarm
- When UTP or fibre port is down during operation, the other port will be automatically turned off to alert the user
- Fully Compatible with CVT-RACK-16
- The budget limited solution for CVT-Rack-16 to mix installation with CTS’s non-managed converter
Target Applications:
FTTx implementations. Point-to-point fibre connection for long distance.
Inc GST
$188.59
