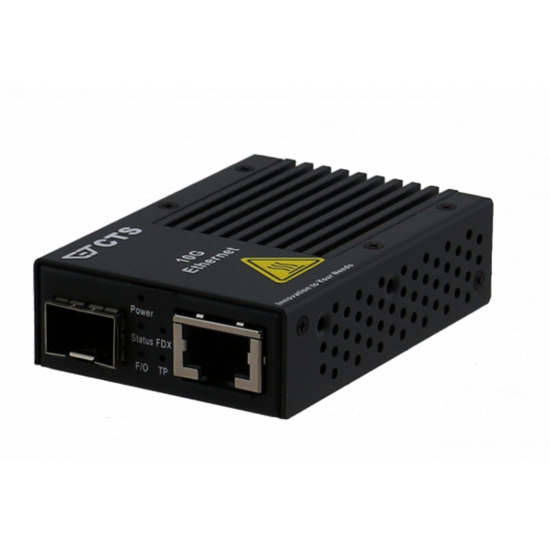

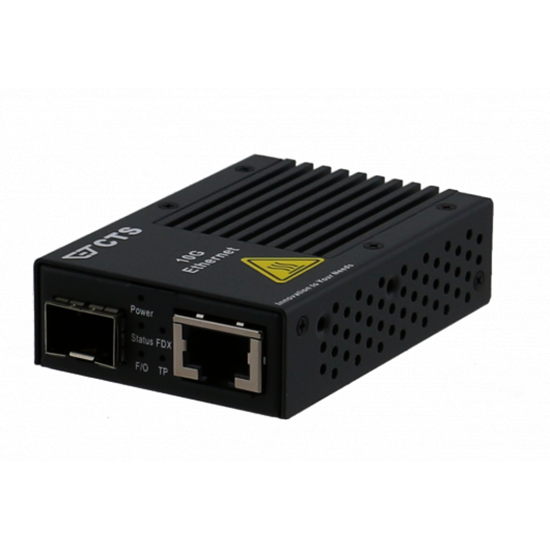

CTS Compact 10G Ethernet Compact Media Converter
CTS Compact 10G Ethernet Compact Media Converter
- Brand: cts
- Category: Network Accessories
- SKU: MCT-5002SFPPLUS
- MPN: MCT-5002SFPPLUS
CTS Compact 10G Ethernet Compact Media Converter
MCT-5002SFPPLUS is a 10G high-speed Ethernet media converter with IEEE 802.3bz 10G NBASE-T 5-speed (100M/1G/2.5G/5G/10G) Ethernet support, which is compatible with existing 1G network environment…
Click or hover over image to enlarge
LED
Power, TP Speed Link/Act, F/O Link/Act, Status, Duplex
Weight
0.13kg
Dimension
51x74x20mm (WxDxH)
Interface
F/O Port (Type): 1x 10Gbps (SFP+)TP Port (Type): 1x 100M/1G/2.5G/5G/10Gbps (RJ45)
Standards
IEEE 802.3u 100Base-TXIEEE 802.3ab 1000Base-TIEEE 802.3bz 2.5G/5GBase-TIEEE 802.3ae 10GBase-RIEEE 802.3an 10GBase-T
EMC/Safety
FCC Class A, CE
Ethernet Feature
-DIP Switch Link Alarm/Loopback/TP Port Speed/Software Control/Fiber Auto-Negotiation
H/W Specification
Jumbo frame: 9K Bytes Auto-Cross Over for MDI/MDIX in TP Ports Auto-Negotiation in TP Ports Full/Half Duplex Mode Operation
Comsys Price
Save $246.68 off RRP
In Stock
20 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $189.46 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
CTS Compact 10G Ethernet Compact Media Converter
MCT-5002SFPPLUS is a 10G high-speed Ethernet media converter with IEEE 802.3bz 10G NBASE-T 5-speed (100M/1G/2.5G/5G/10G) Ethernet support, which is compatible with existing 1G network environment while upgrading to 2.5G/5G/10G without replacing current cabling infrastructure.
MCT-5002SFPPLUS supports one 10GBASE-R SFP+ optical interface, and it provides flexible options for 10GBASE-SR, 10GBASE-LR, 10GBASE-BR or 10G DAC (Direct Attached Cable) SFP+ transceiver.
Owning to the compatibility with the transmission speed of the conversion, MCT-5002SFPPLUS in the best solution for upgrading your existing networking infrastructure through a wide range of 5 speed (100M/1G/2.5G/5G/10G) options.
FEATURES:
- 1x 100M/1G/2.5G/5G/10G NBASE-T Auto-negotiation port
- 1x 10GBASE-R SFP+ Port
- Support Link alarm
- Support wire speed transplant
- support loopback mode in the fibre port that allows operators to use 3rd-party testing tools
- Comply with IEEE 802.3ae 10GBase-R: The SFP+ port supports multi-mode, single-mode, including CWDM/DWDM, or Direct Attached Cable (DAC).
- Comply with IEEE 802.3bz N-Base-T (Multi-Gigabit): The RJ45 port supports 100M/1G/2.5G/5G/10G 5 speeds and maximum distance is up to 100m.
- Jumbo frame & Transparent mode: Maximum MTU size up to 9K bytes also transparent to VLAN tagged packets.
- Loopback mode: Support loopback on 10G SFP+ interface, all frames received on loopback mode will be transmitted back.
- Link Alarm: Either Fiber or RJ45 when port link down is detected during operation, the other port will be automatically turned off to alert the user.
- Fully Compatible with MCT-RACK Chassis Series: Space-saving and budget-limited solution for MCT-RACK chassis series to mix the installation of MCT series converters.
- In Rack Management: Support CTS MCT-RACK management, it allows administrators to configure and monitor the slide-in media converters such as port speed, shutdown and SFP DDMIinformation.
- Full compatible with CTS MCT-RACK-12/MCT-RACK-18-MGM/MCT-RACK-2 chassis for in-rack management
