D-LINK DWL-8620AP Access Point

  • Brand: D-Link
  • Category: Access Points (WiFi)
  • SKU: DLDWL8620AP
  • MPN: DWL-8620AP
D-LINK DWL-8620AP Access Point — D-Link — Access Points (WiFi)

D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over… Save $151.39 off RRP

Available On OrderAsk us for ETA
$1,225.89

Inclusive of GST

1
Afterpay4 payments of $306.47
Value Deal

Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Key Details:

SKU:
CNZ-DS-001350
MPN:
DWL-8620AP
Brand:
D-Link

Ask Our Experts:

Ask a question about this item Request a price match
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
On Sale

Genuine NZ stock with full manufacturer warranty — no parallel imports. Save $151.39 off RRP while stocks last.

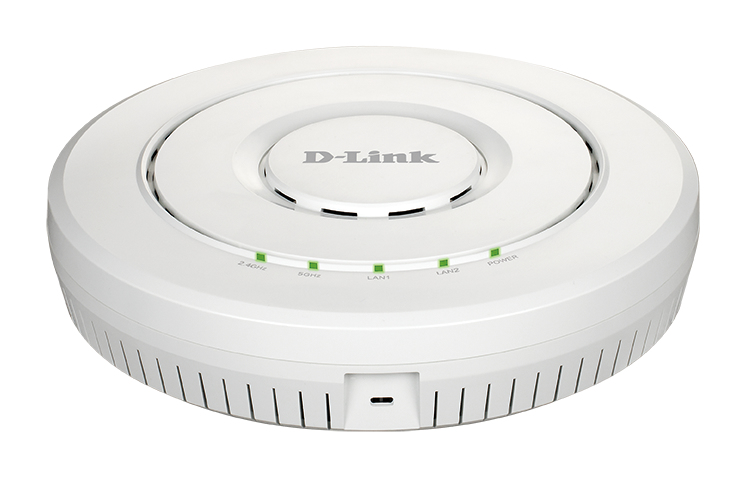

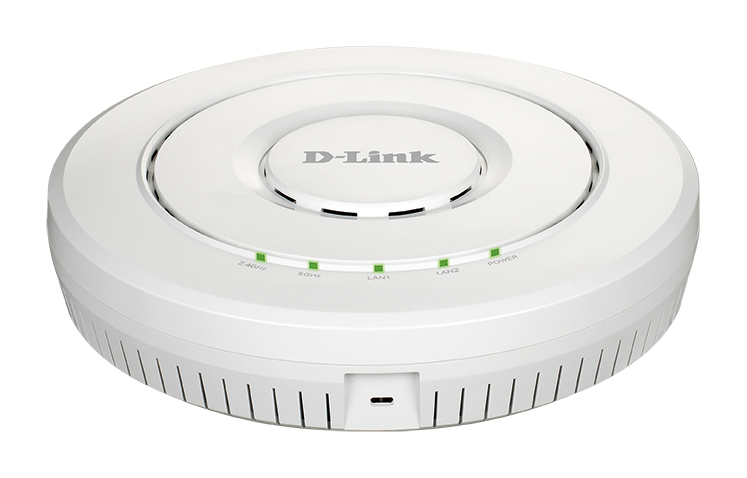

D-LINK DWL-8620AP Access Point

Enjoy Faster Business with Wave 2
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.

Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.

Increase Network Efficiency
The DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.

When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.

Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.

Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.

802.11k Fast Roaming
Allows the wireless client to roam seamlessly between access points.

802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.

Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.

Key features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate: 2533 Mbit/s
  • Maximum data transfer rate (2.4 GHz): 800 Mbit/s
  • Maximum data transfer rate (5 GHz): 1733 Mbit/s
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
  • Automatic channel selection: Yes
  • MIMO: Yes
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Fast roaming: Yes
  • Band steering: Yes
  • Airtime Fairness (ATF): Yes
  • Quality of Service (QoS) support: Yes
  • Security algorithms: AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
  • MAC address filtering: Yes
  • Number of SSID supported: 32
  • Auto Wireless Distribution System (WDS): Yes
  • Management protocols: SNMP v1/v2c/v3
  • Command-line interface (CLI): Yes

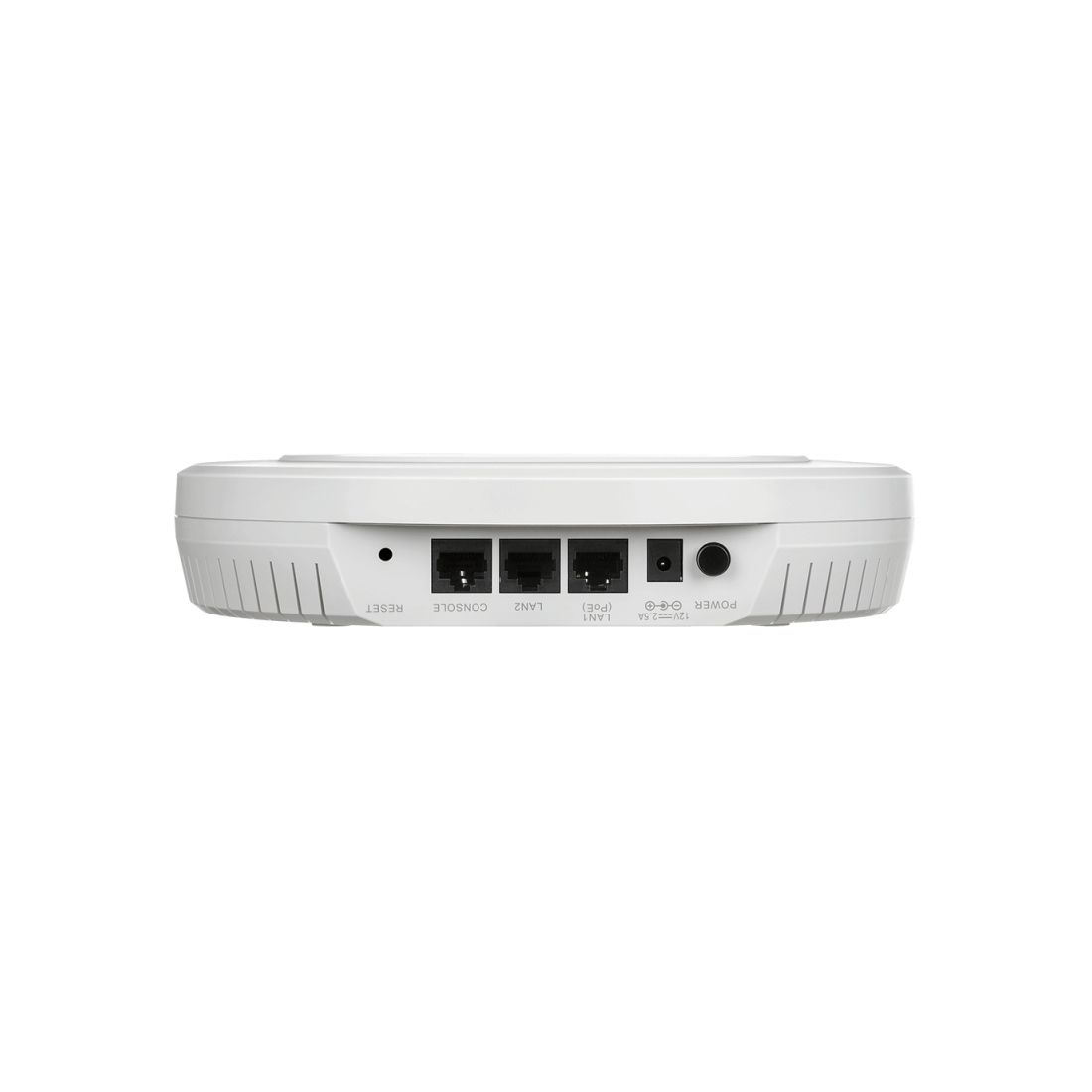

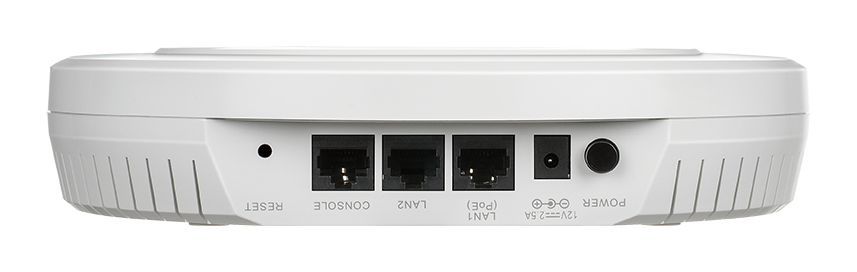

  • Ethernet LAN (RJ-45) ports: 2
  • DC-in jack: Yes
  • Power over Ethernet (PoE): Yes
  • AC input voltage: 12 V
  • Input current: 2.5 A
  • Power consumption (max): 24.24 W
  • Product colour: White
  • Housing material: Plastic
  • Antenna type: Internal
  • Antenna direction type: Omni-directional
