DYNAMIX 19' 1U Fibre Patch Panel Unloaded 24 Port LC Duplex . Metal
19'' 1U Fibre Patch Panel Unloaded 24 Port LC Duplex Ball Bearing Sliding Drawer
- Brand: Dynamix
- Category: Ethernet Cables
- SKU: FPP3PD
- MPN: FPP3PD
DYNAMIX 19' 1U Fibre Patch Panel Unloaded 24 Port LC Duplex . Metal
The DYNAMIX Sliding Patch Panel supports up to 24 SC Simplex or LC Duplex adapters in a 1U space.
Click or hover over image to enlarge
Comsys Price
Save $99.69 off RRP
In Stock
10 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $46.86 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX 19' 1U Fibre Patch Panel Unloaded 24 Port LC Duplex . Metal

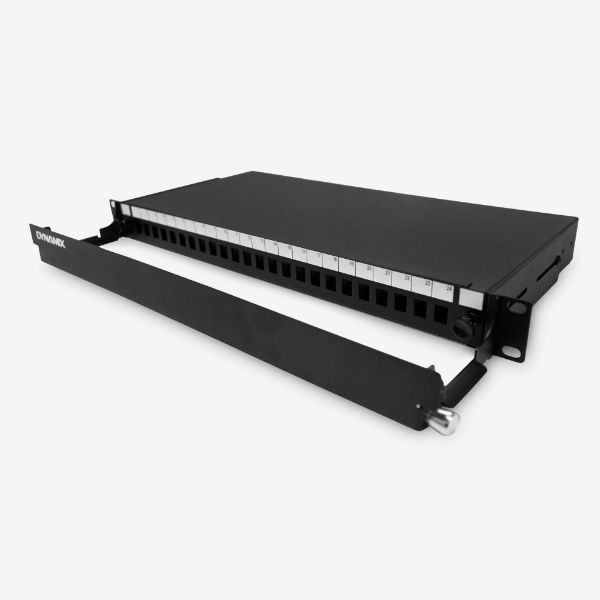

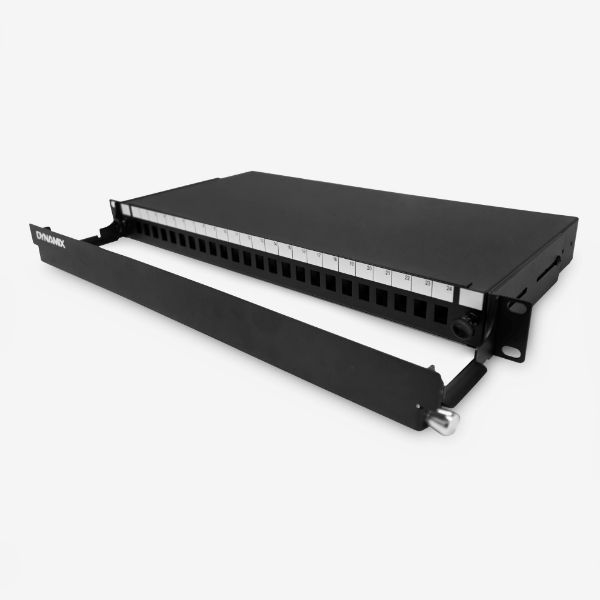

The DYNAMIX Sliding Patch Panel supports up to 24 SC Simplex or LC Duplex adapters in a 1U space. Its telescopic rail ensures smooth sliding for easy access, while the front cable management with a waterfall guide allows flexible routing of patch cords.
The front door includes a port ID label for quick identification, & the panel can be pre-loaded with adapters or pigtails to save installation time. Secured by two captive screws, the tray features silk-screened port numbers for easy installation.
Features:
- 19” 1U Rack mount ball-bearing sliding tray
- Manufactured from cold rolled steel
- Rated Indoor IP20
- High-density tray accepts up to 24FO with SC simplex or 48FO with LC duplex in 1U space
- 4x Rear Cable entries
- Includes adjustable rack mount brackets
- Includes cable management accessories
- Front face protection panel with labelling kit
- Covered by limited lifetime warranty
Inc GST
$187.44
