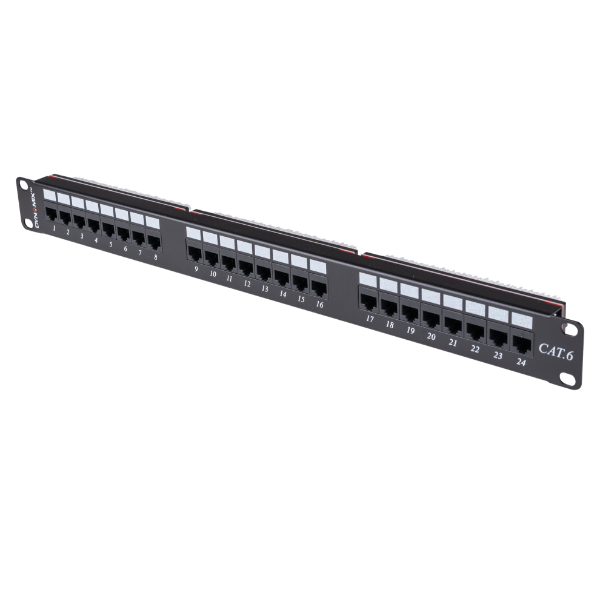

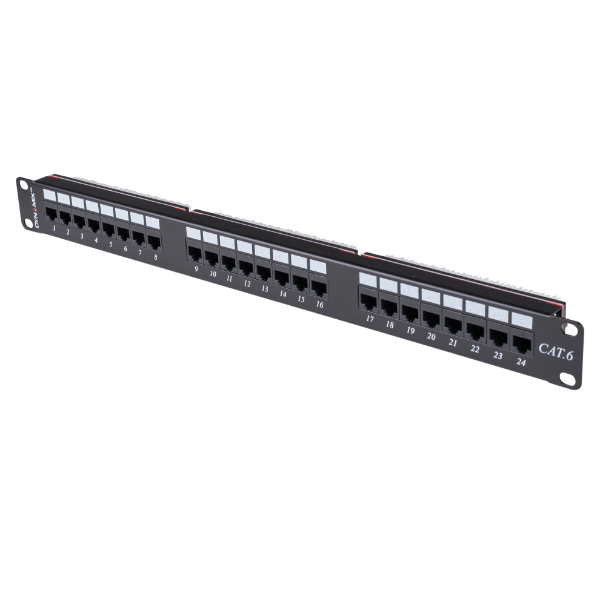

DYNAMIX 24 Port 19' Cat6 UTP Patch Panel, T568A & T568B
24 Port 19'' Cat6 UTP Patch Panel T568A & T568B Wiring 1RU 110x Terminations
- Brand: Dynamix
- Category: Tools & Installation
- SKU: PP-C6-24
- MPN: PP-C6-24
DYNAMIX 24 Port 19' Cat6 UTP Patch Panel, T568A & T568B
With a professional structure design, our Category 6 UTP patch panels are extremely durable for punching down strongly.
Click or hover over image to enlarge
PCB
FR-4,1.6mm thickness
Spec
ELECTRICAL SPECIFICATIONS
Humidity
10% ~ 65%
IDC Contact
0.8mm thickness phosphor bronze, tin plating over nickel
Humidity (6)
PHYSICAL SPECIFICATIONS
Jack Contact
Phosphor bronze and minimum of 50 micro-inches of gold in contact area
Temperature Range
-10°C ~ 60°C max
Contact Resistance
2mΩ per contact
Comsys Price
Save $81.54 off RRP
In Stock
20 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $32.77 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX 24 Port 19' Cat6 UTP Patch Panel, T568A & T568B
With a professional structure design, our Category 6 UTP patch panels are extremely durable for punching down strongly. With 110 and dual type IDC design, accepts 110 and Krone type punch down tools, and 23-26AWG solid and stranded UTP cables. Writable & erasable marking surfaces for each port on the front panel for efficient system management.
Features:
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
- Supports T568 A&B wiring & easy installation
- IDC connector can accept 23-26 AWG solid and stranded cables
- Backward compatible with category 5e or 3
- Offers total solutions of your local networking area
- Terminate using 110 or Krone tools
Inc GST
$131.09
