DYNAMIX 4-2 Hidden IR Distribution System. Kit includes 1x IR Box
4-2 Hidden IR Distribution System Kit
- Brand: Dynamix
- Category: Intercom Systems
- SKU: IR6000
- MPN: IR6000
DYNAMIX 4-2 Hidden IR Distribution System. Kit includes 1x IR Box
The IR6000 System is a modular infrared extension system and the components required are available individually. This system can be used universally and is suitable for just about any situation.
Click or hover over image to enlarge
Spec
IR Module
Input
AC 100V ~ 240V
Output
DC 12V/250mA
DC Plug
5.5 x 2.1mm
IR LEDs
2x IR emitter LEDs
IR Input
1x 3.5mm jack connector for IRCV-3 receiver (3 conductor plug)1x 3.5mm jack connector for IR-CV-4 receiver (4 conductor plug)
RJ45 Port
Extra RJ45 IR Receiver can be connected to this input or you can use the cat cable together with the RJ45 IR Receiver to extend the IR signal reception
Connection
3.5m jack plug (mono)
Comsys Price
Save $69.04 off RRP
In Stock
40 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $22.42 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX 4-2 Hidden IR Distribution System. Kit includes 1x IR Box
The IR6000 System is a modular infrared extension system and the components required are available individually. This system can be used universally and is suitable for just about any situation. You can extend the IR (infrared) signals of remote controls. It makes sure that all your AV components receive the commands sent from your existing IR remote controls. You can keep all your devices behind in closed cabinets but still keep them in use with this device. Simply place the hidden IR repeater box in the cabinet or closet, affix it to the included IR emitters/IR blaster, then place a receiver somewhere near your television and the system will let you control up to numerous individual home theatre components using your existing IR remote control.

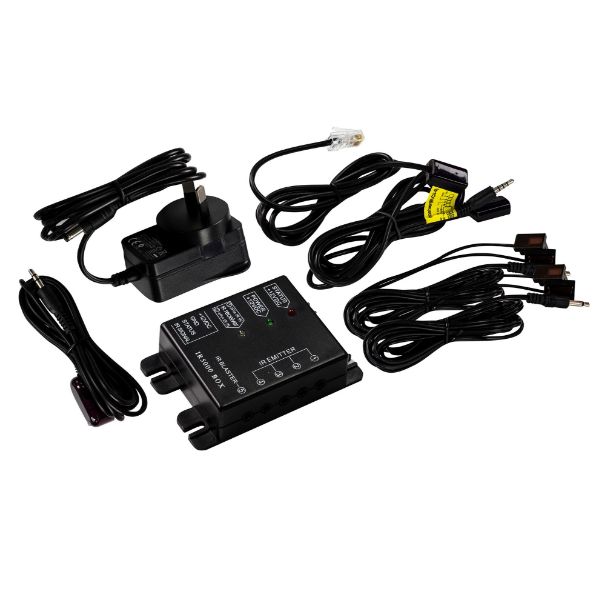

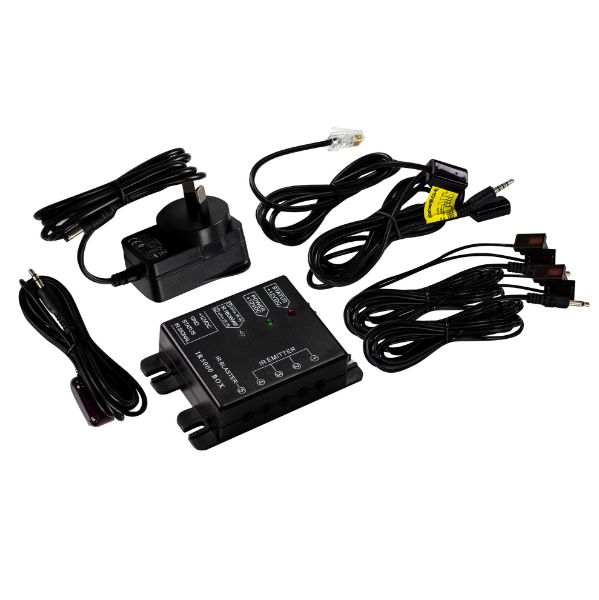

Includes:
- 1x Hidden IR Repeater Box
- 1x RJ45 IR Receiver
- 1x Stereo IR Receiver
- 2x Dual IR Emitters
- 1x IR Blaster
- 1x AU Power Adapter
Inc GST
$89.69
