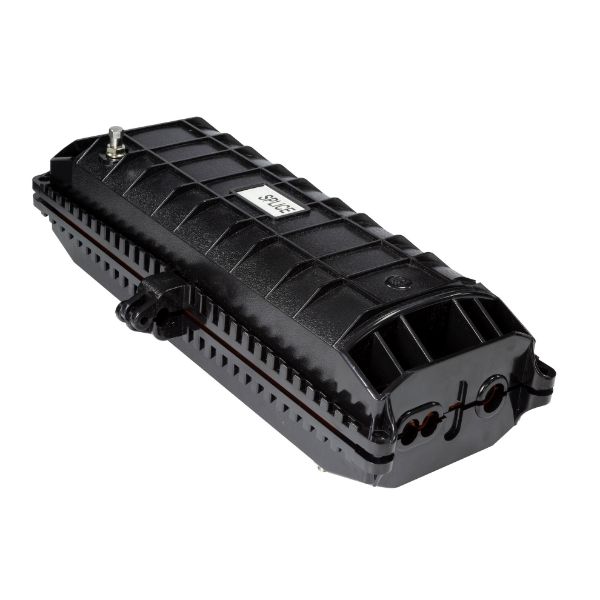

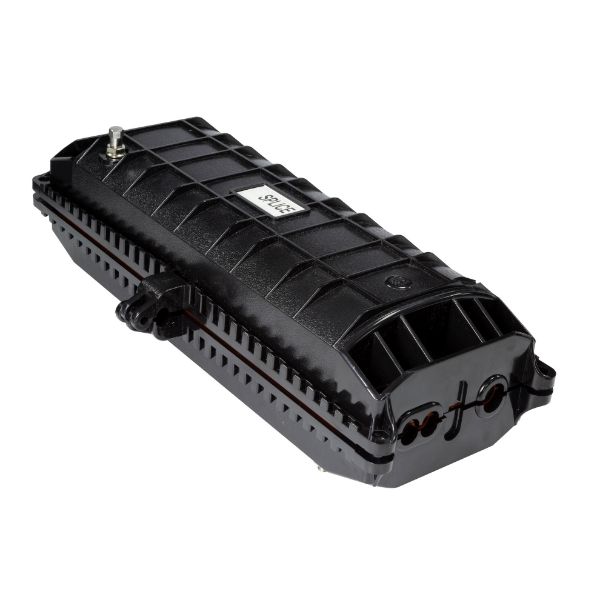

DYNAMIX Fibre Inline Enclosure. Holds up to 72x fibres. IP68.
72 Fibre Inline Enclosure. IP68 Integrated Airtight & Waterproof Seal
- Brand: Dynamix
- Category: Backup Solutions
- SKU: INLINE03
- MPN: INLINE03
DYNAMIX Fibre Inline Enclosure. Holds up to 72x fibres. IP68.
The inline enclosure is suitable for protecting fibre cable splices in straight through and branching applications.
Click or hover over image to enlarge
Colour
Black
Weight
2kg
Material
ABS
Max. Trays
8
RoHS Compliant
Yes
Sealing Rating
IP68
Cable Entry Points
6
Dimensions (w x d x h)
210 x 450 x 90.5mm
Comsys Price
Save $161.48 off RRP
In Stock
5 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $53.47 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX Fibre Inline Enclosure. Holds up to 72x fibres. IP68.
The inline enclosure is suitable for protecting fibre cable splices in straight through and branching applications. Its well-engineered, injection molded outer body makes it impenetrable to the elements. It can protect splices and ensure reliability with usage in ambient temperatures from -40°C to +65 °C. It can be placed in aerial, underground, or duct mounted locations.
Features:
- Holds 72 splices
- Easy to re-enter
- 3 cable entrys at each end
- Termination and splice kit included
- Airtight and waterproof integrated seal
- Ideal for cable repair
- RoHS compliant
- Can be used in through, branch or mid span splice locations
- Suitable for aerial, underground duct or direct burial applications
- IP68 up to 1.5m water depth
Inc GST
$213.89
