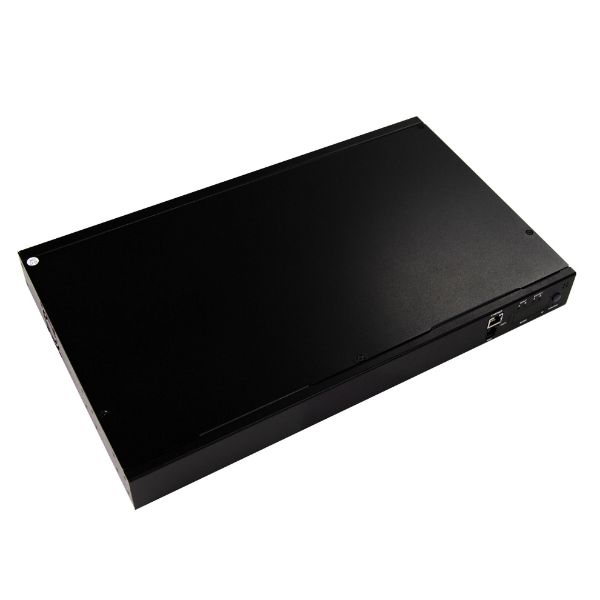

DYNAMIX ATS PDU Dual 16A IEC Input, 10 Port 10A IEC C13 Output. Offers

The DYNAMIX ATS is single phase & dual input rack mountable power distribution unit (PDU). An ATS is a self-acting, intelligent power switching device governed by dedicated control logic. The principal purpose of an ATS is to ensure the continuous delivery of electrical power from one of two power sources to a connected load circuit (electrical equipment – lights, motors, computers, etc.). When Input A falls below pre-set working voltage & Input B is valid, the output is automatically transferred to Input B. The output is transferred back to Input A when Input A is valid. This high speed transfer rate ensures that the transfer is transparent to the sensitive equipment. The two sources are not required to be in phase. Includes free centralized monitoring software with real-time monitoring as well as providing data records & history chart.

FEATURES

• Dual input power automatically provides redundant power protection
• Built-in web server manager monitors the current consumption in real time
• Built-in true RMS current metre
• Easy setup - metre reads the IP address directly
• Security web access by SSL
• Provides voltage, frequency, power factor, active power, apparent power and kWh information through web interface and SNMP
• Provides audible alarm when the power consumption is exceeded
• Sends e-mail and traps when the power consumption is exceeded
• Has the ability to monitor a large number of PDUs at the same time
• Supports SNMP and provides MIB for ATS
• Indicates input and output status via LED
• Includes 2x Rack Mount Brackets and 8x Screws
