DYNAMIX Cat6 Shielded Keystone Jack Termination 110/Krone
Cat6 Shielded Keystone Jack Termination 110/Krone
- Brand: Dynamix
- Category: Ethernet Cables
- SKU: FP-C6S-011
- MPN: FP-C6S-011
DYNAMIX Cat6 Shielded Keystone Jack Termination 110/Krone

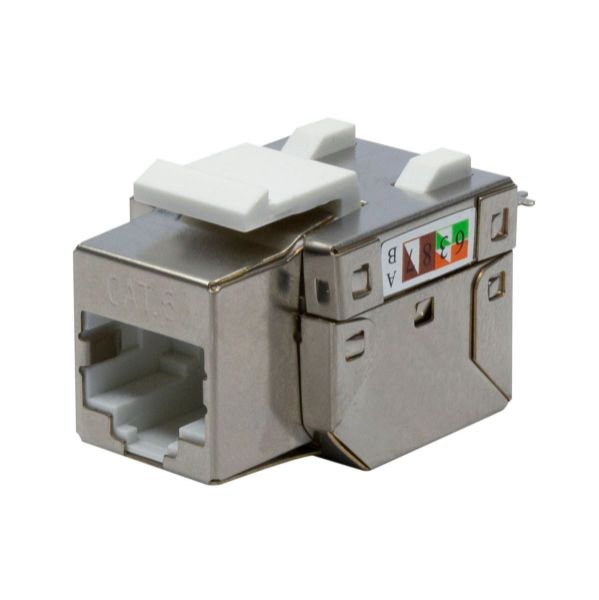

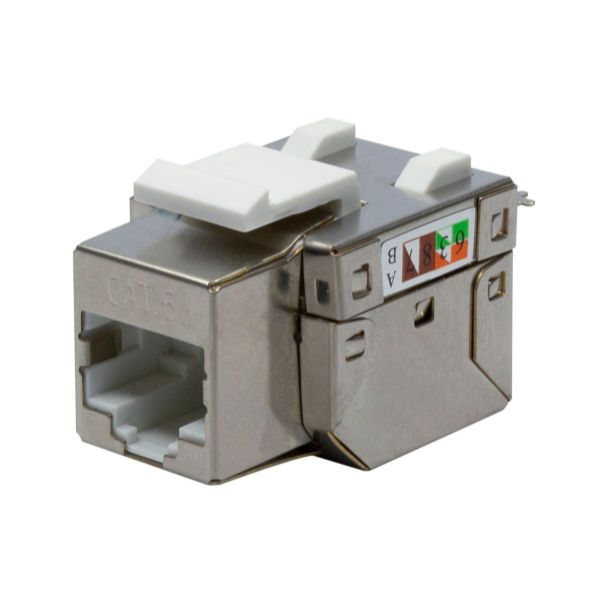

Our DYNAMIX 90° Cat6 Keystone Jack has a fully shielded design to protect from EMI.
Click or hover over image to enlarge
Tool
Dual Type
Supports
T568A & T568B wiring compatible with Cat6 requirements
Retention
7.7kgs between jack and plug
Durability
750 Cycles contact resistance test check with 10mm/s
P.C. Board
FR-4, T=1.6mm
IDC Housing
ABS Plastic
IDC Terminal
Phosphor Bronze, nickel plated 50~60, micro inch
DC Resistance
0.1Ω
Comsys Price
In Stock
300 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $2.01 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX Cat6 Shielded Keystone Jack Termination 110/Krone
Our DYNAMIX 90° Cat6 Keystone Jack has a fully shielded design to protect from EMI. Dual IDC connectors can accept 22-26 AWG solid cables and supports T568 A&B wiring, plus it uses 110 or Krone tools for termination.
FP-C6S-011 is made to an extremely high standard and superior construction ensures that our Cat6 shielded Keystone Jack conform to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications, and supports channel link bandwidth up to 250MHz.
FEATURES:
- Shielded Cat6 keystone jack
- RJ45 Female connector
- 90° Angle termination design
- Supports gauge wire 22-26AWG cable
- Compatible with shielded or unshielded patch cables
- Use with a wall-plate for network wiring installs
- Designed for high-speed network applications
- Excellent crosstalk suppression
- Corrosion-resistant construction
- Operating temperature -10°C to 60°C (-14°F to 140°F)
- Category 6 ANSI/TIA/EIA 568-C.2 performance
- 21.4mm wide*
*The width is 21.4mm, so please note that this may not fit side by side in certain patch panels.
