DYNAMIX Cat6A 180 Unshielded Keystone Jack, Dual IDC.
Cat6A 180 Unshielded Keystone Jack Dual IDC Colour White
- Brand: Dynamix
- Category: Ethernet Cables
- SKU: FP-C6A-180WH
- MPN: FP-C6A-180WH
DYNAMIX Cat6A 180 Unshielded Keystone Jack, Dual IDC.

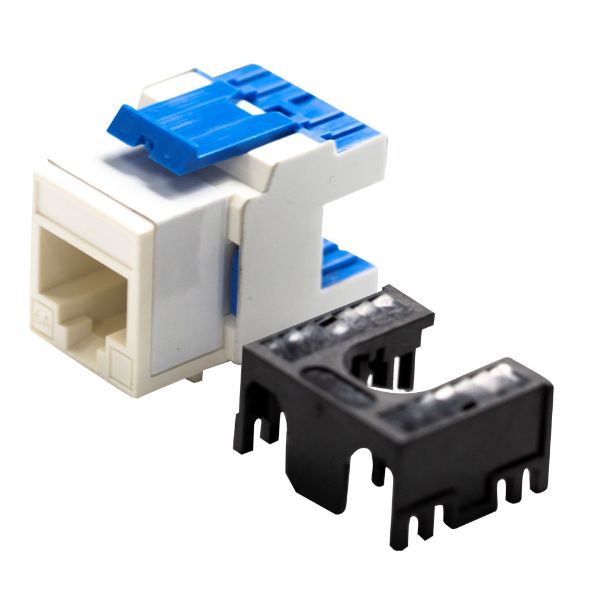

The DYNAMIX Cat6A component compliant RJ45 180° unshielded keystone jacks are designed to easily snap in and out of the wall outlet, patch panel and surface mount box.
Click or hover over image to enlarge
UL
1863ETL CertifiedSupports POE+US PATENT
FCC
Part 68
TIA/EIA
568-C.2
Current Rating
1.5A
Material - PCB
FR4
Contact Resistance
max. 20mΩ
Material - Housing
ABS UL94V-0 flame retardancy
Operating Humidity
10% ~ -90%RH
Comsys Price
In Stock
500 units available
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Four payments of $1.72 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX Cat6A 180 Unshielded Keystone Jack, Dual IDC.
The DYNAMIX Cat6A component compliant RJ45 180° unshielded keystone jacks are designed to easily snap in and out of the wall outlet, patch panel and surface mount box. The jacks are individually terminated using Insulation Displacement Connectors (IDC) with a rapid punch down tool available for quick installation. The unique design provides an efficient and effective method of reducing alien crosstalk from neighbouring connectors for superior performance.
FEATURES:
- DYNAMIX keystone jacks meet and exceed performance levels for Cat6A
- Rapid Termination tool available (Purchased separately)
- Comes with T568A/T568B colour labelling
- Press-Fit Technology makes the product more reliable
- Hardware transmission performance edition 2.2 of ISO/IEC 11801, CENELEC 50173-1, and ANSI/TIA-568-C.2 for Return loss, Insertion loss, NEXT loss, FEXT loss, TCL, TCTL, PSANEXT loss, and PSAFEXT loss up to 500MHz
- More stable transmission performance is guaranteed since there is no other medium that takes effect in between PCB and contacts
- Limited Lifetime warranty
Inc GST
$6.89
