DYNAMIX Splice Tray 24FO Stackable with Clear White Lid
Splice Tray 24FO Stackable w/ Clear White Lid
- Brand: Dynamix
- Category: Peripherals & Accessories
- SKU: FSP01
- MPN: FSP01
DYNAMIX Splice Tray 24FO Stackable with Clear White Lid

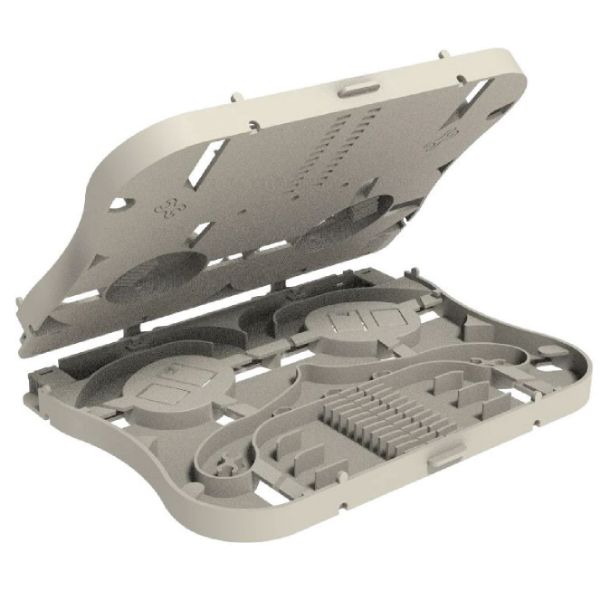

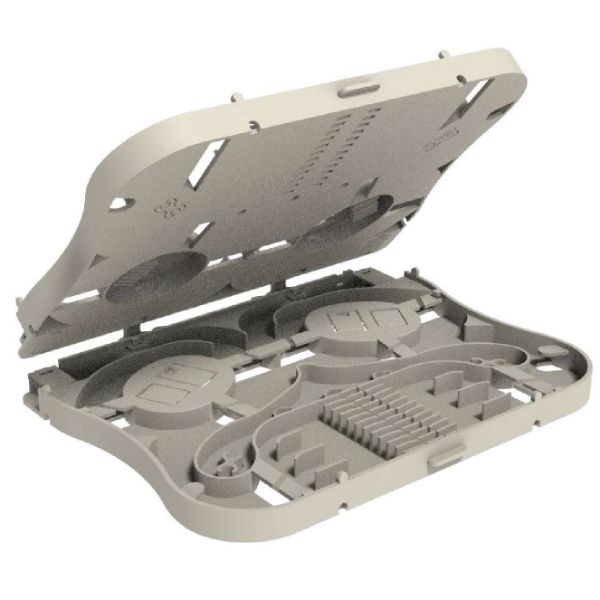

The FSP01 splice tray is designed to safely splice 12 or 24 individual fibres, which can be installed in rackmount patch panels, wall mount enclosures, terminal boxes or distribution units.
Click or hover over image to enlarge
Comsys Price
In Stock
100 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $2.30 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
DYNAMIX Splice Tray 24FO Stackable with Clear White Lid
The FSP01 splice tray is designed to safely splice 12 or 24 individual fibres, which can be installed in rackmount patch panels, wall mount enclosures, terminal boxes or distribution units. The splice trays provide security for fusion splicing and can be used with different cables.
Features:
- Holds up to 12 or 24 heat-shrink splice protectors
- 250μm, 600μm or up to 900μm buffered fibres
- Accommodates 40-45mm heat shrinks
- Stackable with individual access available to each splice tray
- Incorporated clamp to secure fibres on entry and exit
- 3 x Position mountable holes or adhesive pads
- Transparent lid
Inc GST
$9.19
