EDIMAX 10/100/1000 PCI Express RJ45 Gigabit Network Adapter.
10/100/1000 PCI Express RJ45 Gigabit Network Adapter
- Brand: Edimax
- Category: Components & Parts
- SKU: EN-9260TX-EV2
- MPN: EN-9260TX-EV2
EDIMAX 10/100/1000 PCI Express RJ45 Gigabit Network Adapter.
Gigabit Ethernet FEATURES: Complies with PCI Express 1.1 – x1 PCI Express standard IEEE 802.3, 802.3u, 802.3ab and 802.3x standards Supports 10/100/1000Mbps Auto-Negotiation and Jumbo Frame Supports…
Click or hover over image to enlarge
64x39mm - 50g
CE, FCC
DIMENSION - WEIGHT
CERTIFICATIONS
INSTALLATION KIT - CHIPSET
HUMIDITY
SYSTEM REQUIREMENTS - BUS ARCHITECTURE
TEMPERATURE
HARDWARE INTERFACE - COMPLIED STANDARDS
LED Indicators
Setup Wizard program with Driver setup - Realtek RTL8168E Single Chip
Operating: 10% ~ 90% RH (non-condensing) Storage: 5% to 95% RH (non-condensing)
CPU: Pentium III 1G above or similar Memory size: 256MB RAM One CD-ROM drive Har
Operating: 0°C ~ 0°C Storage: -40°C ~ 70°C
PCI Express Interface One 10/100/1000 Mbps LAN port - IEEE 802.3, IEEE 802.3u, I
Link /ACT 1000M
Comsys Price
In Stock
100 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $5.75 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX 10/100/1000 PCI Express RJ45 Gigabit Network Adapter.
Gigabit Ethernet
FEATURES:
- Complies with PCI Express 1.1 – x1 PCI Express standard
- IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
- Supports 10/100/1000Mbps Auto-Negotiation and Jumbo Frame
- Supports IEEE802.3x full-duplex Flow Control
- Supports IEEE802.1Q VLAN Tagging and IEEE802.1P Layer 2 Priority Encoding
- Supports Wake on LAN and ACPI power management
- Supports IEEE802.3az energy efficient Ethernet function

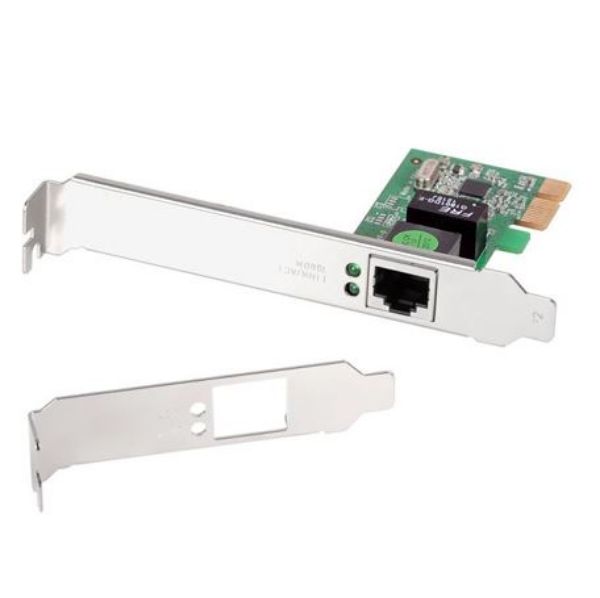

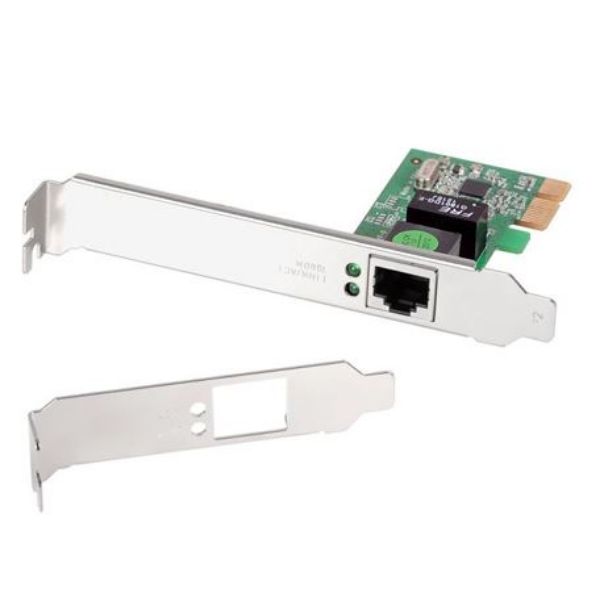

- Includes a low-profile bracket
- Plug-and-Play
- Supports drivers for Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x
The EN-9260TX-E network adapter for PCs with PCI Express slots offers the latest technology in power management and Gigabit Ethernet network connectivity capability. The EN-9260TX-E’s full bandwidth capability boasts a robust 1000Mbps capability through the PCI Express bus architecture. There’s no need to purchase a new switch or broadband router since the adapter’s auto-negotiation feature works with your existing switch, broadband router or hub to provide the highest network speed available (10/100/1000Mbps). The adapter’s automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time.
First-class Reliability
The EN-9260TX-E’s exceptional chipset offers increased bandwidth and more functionality than other standard PCI network adapters. The adapter is specifically designed to carry the full bandwidth capacity of the PCI Express bus of 2.5Gbps, thus eliminating collisions and latencies that exist with current 32 and 64 bit PCI bus architectures.
Ease of Installation & Configuration
The EN-9260TX-E offers ease and flexibility of installation and configuration of the adapter through Plug & Play technology. Simply place the adapter into the PCI Express slot in your PC and then turn on the PC; plug-n-play automatically detects the new device. The adapter is fully compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks and the adapter’s 10/100/1000Mbps auto-negotiation ports eliminate any need for manual switching. Best of all, the adapter is supported by all major operating systems including Vista and Linux OS.
User-friendly Setup CD Wizard and Driver*
To facilitate network connectivity, the EN-9260TX-E includes a user-friendly setup CD wizard. Its user interface simplifies driver installation for immediate use of the device.
