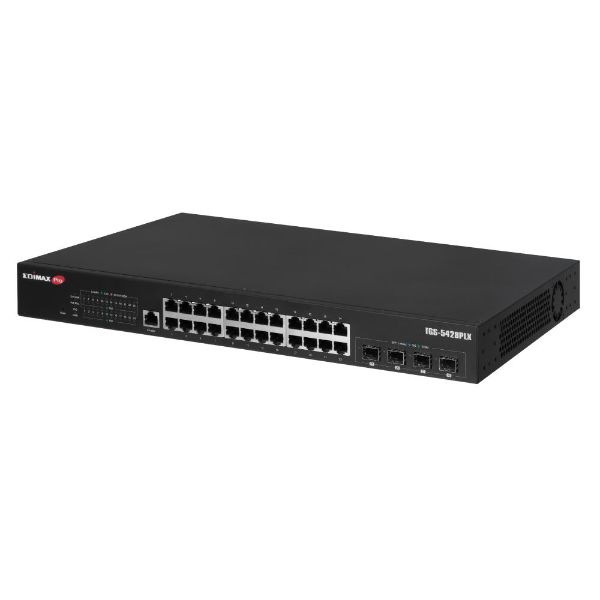

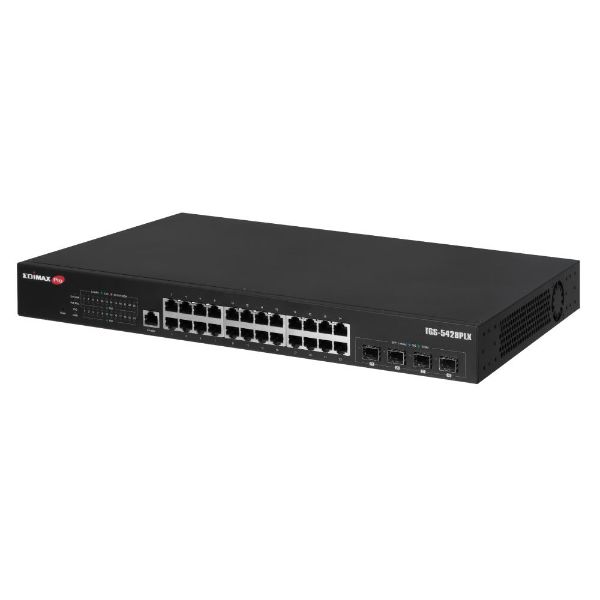

EDIMAX 28 Port 2.5GbE PoE++ L2 with 4x 10GbE SFP+ Ports Surveillance

The EDIMAX Pro TGS-5428PLX is a Layer 2 switch designed for SMB and enterprise networks. It features 24 2.5GbE 802.3bt 90W PoE++ RJ45 ports, 4 10GbE SFP+ ports for Gigabit fibre uplinks, and supports high-bandwidth applications like data transfer, video conferencing, IP surveillance, and Wi-Fi 6/6E APs. Designed for surveillance systems, it offers one-click VLAN setup, Auto-Enrollment, and a long-range mode for 200m power/data transmission at 10Mbps—ideal for IP cameras and remote devices. Smart layer 2 management features include SNMP v1/v2c/v3, Dual Firmware, ACL, DHCP Snooping, QoS, VLAN, STP, IPv4/IPv6, Port Trunking, and IGMP Snooping. The user-friendly web-based interface ensures easy management, making it a reliable and scalable solution for modern networks.

Features:

• 24 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 4 10GbE SFP+ ports

• One-click to create a Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once

• Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction

• PoE-powered devices (PD) live check to enhance the reliability of the network

• Dual-firmware image for robust failover mechanisms

• Guaranteed PoE long distance to 200 meters

• Power back feed protection to avoid damaging the PoE ports

• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality

• DHCP snooping to protect the integrity of the legitimate DHCP server and its operations

• IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 400W) for powering PoE-enabled devices

• Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.

• Supports 200Gbps backplane bandwidth, 169.28Mpps forwarding rate, 32K MAC address table and 12KB jumbo frame

APPLICATION DIAGRAM
