EDIMAX 5 Port 10/100/1000 Gigabit Desktop Switch. Full Duplex.

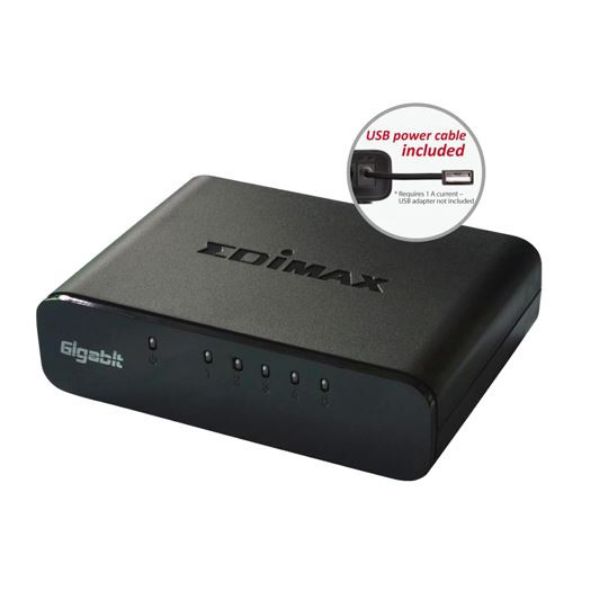

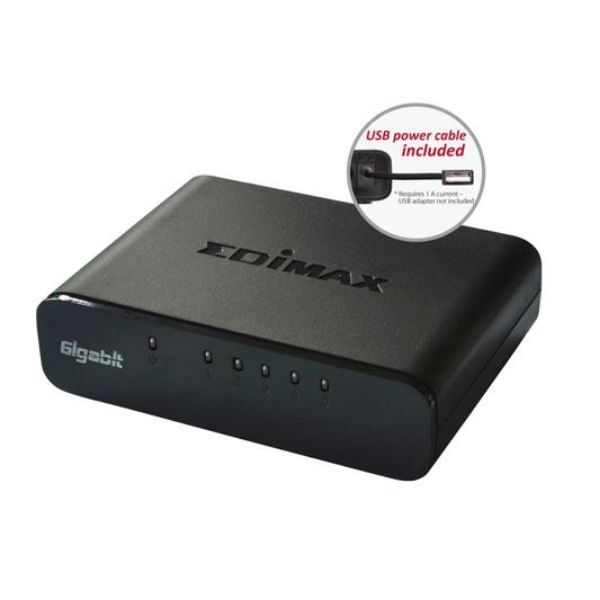

5 Port 10/100/1000 Gigabit Desktop Switch
- Brand: Edimax
- Category: Switches
- SKU: SW5500GV3
- MPN: SW5500GV3
EDIMAX 5 Port 10/100/1000 Gigabit Desktop Switch. Full Duplex.
5-Port Gigabit Desktop Switch SW5500GV3 Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards Supports auto MDI/MDI-X crossover detecting and auto correction Supports full and half duplex for…
Click or hover over image to enlarge
Dimensions - Weight
Certifications
Standard - Features
Filtering / Forwarding Rates
Temperature - Humidity
Power Consumption
Transmission Media - LED Indicators
Power Requirement
•98× 71 × 25.5mm (L x W x H) - •112g
•CE •FCC Class B
•10BASE-T Cat3/4/5 UTP/STP •100BASE-TX Cat5 UTP/STP •1000BASE-T Cat5E UTP/STP -
•5V 1A DC
•IEEE 802.3 10BASE-T •IEEE 802.3u 100BASE-TX •IEEE 802.3ab 1000BASE-TX •IEEE 802
•1000Mbps Port – 1,488,000pps •100Mbps Port – 148,800pps •10Mbps Port – 14,880pps
•Operating: 0°C ~ 40°C •Storage: -20°C ~ 70°C - •Operating: 10% ~ 90% RH (Non-co
•2W (Max)
Comsys Price
In Stock
40 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $11.50 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX 5 Port 10/100/1000 Gigabit Desktop Switch. Full Duplex.
5-Port Gigabit Desktop Switch
- Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
- Supports auto MDI/MDI-X crossover detecting and auto correction
- Supports full and half duplex for 10/100Mbps and full duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment & CRC error packets
- Supports jumbo frames up to 9K bytes
- Supports IEEE802.3az Energy Efficient Ethernet function
- Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)
- 3 Year Warranty
Inactive Link Detection: When a network device is shut down and/or an inactive link is detected, the power usage adjustment feature automatically reduces power usage. The switch’s power consumption will be dynamically adjusted according to the link status and the number of active network devices.
Cable Length Detection: Devices equipped with this feature automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
APPLICATION DIAGRAM
- Connect the ES-5500G V3 to your router or cable/xDSL modem.
- Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-5500G V3.
