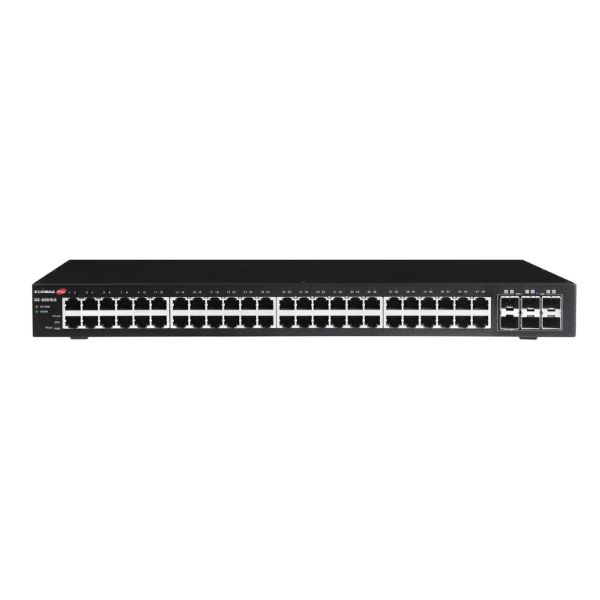

EDIMAX 54 Port Gigabit Web Smart Switch with 6x SFP+ 10G Ports

The EDIMAX Pro GS-5654LX web-smart switch comes with a web-based user interface, 48 Gigabit ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.

With smart features such as SNMP v1/v2/v3, PoE PD Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring, the EDIMAX Pro GS-5654LX web smart switch provides a cost-effective, reliable, scalable and secure switch solution for SMB networks

Features:

• 48 Gigabit Ethernet ports and 6 SFP+ 10Gigabit uplink ports

• Power saving and noise reduction by Intelligent Thermal Controller to control the speeds of each fan or turn on/off
• Surge Protection 6KV to avoid the damage of the switch and connected devices
• Dual-firmware image for robust failover mechanisms.
• 216 Gbps Backplane bandwidth
• 160.7Mpps (64-byte package size) Forwarding rate
• 32K MAC address table and 12KB Jumbo frame
• Supports SNMP v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc

Intelligent Thermal Control | Power Saving Implementation
With a dedicated and intelligent microchip for cooling system control, the GS-5654LX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.

216Gbps Backplane Bandwidth | Strong Ability to Proceed Data
With 216Gbps backplane bandwidth, the GS-5654LX has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 160.7Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.

Completed Smart Tools | Intuitive and Powerful
The switch features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features QoS (Quality of Service) bandwidth control for better traffic control, VLAN (Virtual LAN) for enhanced network security and multicast IGMP snooping v1/v2/v3 for streaming applications. For quick and easy setup, the web-based management integrates advanced management and security functions of Access Control List (ACL), CoS, STP, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring
