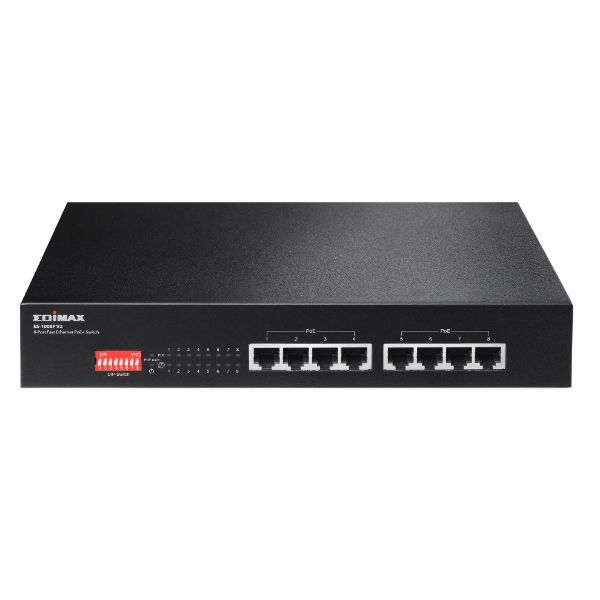

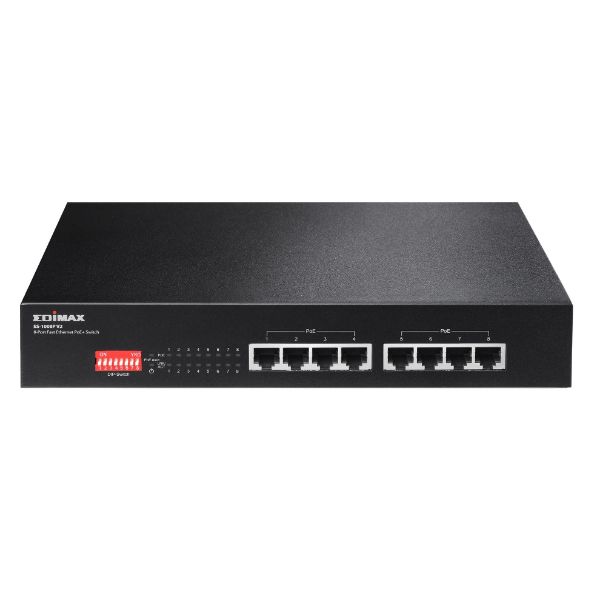

EDIMAX 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch.
8 Port 10/100 Fast Ethernet PoE+ Switch w/ DIP Switch
- Brand: Edimax
- Category: Switches
- SKU: ES-1008PV2
- MPN: ES-1008PV2
EDIMAX 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch.
The Edimax ES-1008P V2 is an Eight PoE+ Port Fast Ethernet switch designed for use in home, small or medium-sized network environments.
Click or hover over image to enlarge
Fan
Fanless
Spec
Hardware
Ports
8x RJ45 10/100Base-T PoE+ ports
Weight
1605g
Standard
IEEE 802.3af, IEEE 802.3at
Standards
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy efficient Ethernet
DIP Switch
PoE Extend, VLAN, QoS
MAC Address
1K
Comsys Price
Save $33.68 off RRP
In Stock
8 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $55.49 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX 8 Port 10/100 Fast Ethernet PoE+ Switch with DIP Switch.
The Edimax ES-1008P V2 is an Eight PoE+ Port Fast Ethernet switch designed for use in home, small or medium-sized network environments. With eight DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.
Features:
- Eight 10/100Mbps Fast Ethernet PoE+ ports
- IEEE 802.3af/at PoE compliant for simplified deployment and installation.
- Up to 30W per PoE port (total power budget: 130W) for powering PoE-enabled devices.
- Auto-detection of powered devices (PD) and power consumption levels.
- Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps
- Port-based VLAN and Loop Protection features
- Supports 802.1p Quality of Service (QoS)
Power over Ethernet (PoE+) Auto Detection
Features eight IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100-240V AC power into low-voltage 50V - 57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the ES-1008P V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable – meaning easy setup and management of network devices such as access points and network cameras.
Hardware QoS for Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.
APPLICATION DIAGRAM
Inc GST
$221.94
