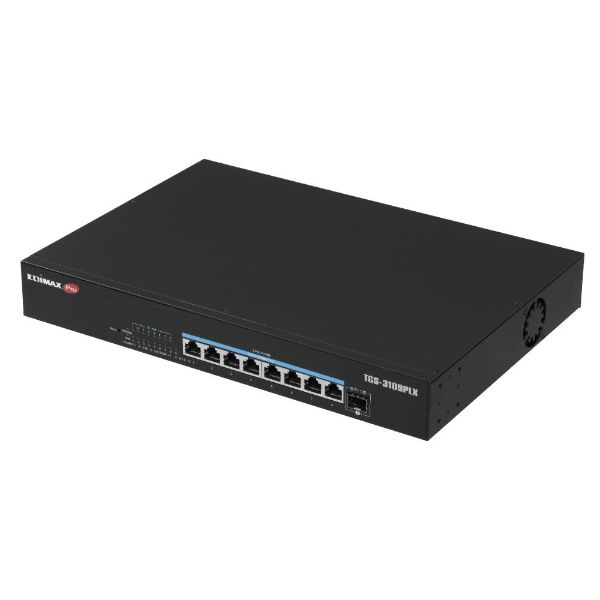

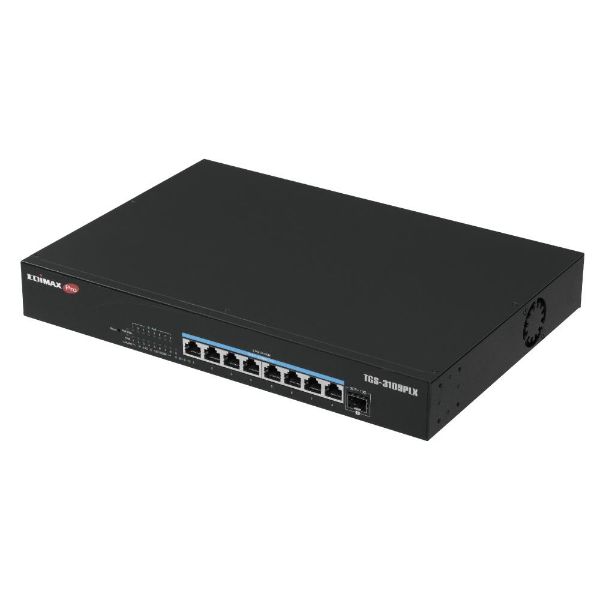

EDIMAX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+
8 Port 2.5GbE PoE++ Web Smart Switch w/ 1x 10GbE SFP+ Port
- Brand: Edimax
- Category: Switches
- SKU: TGS-3109PLX
- MPN: TGS-3109PLX
EDIMAX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+
The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port.
Click or hover over image to enlarge
Comsys Price
Save $71.59 off RRP
In Stock
5 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $121.04 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+
The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs. Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices. The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
Features:
-
8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port
-
IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE- enabled devices
-
Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
-
Guaranteed PoE long distance to 200 meters
-
Auto-detection of powered devices (PD) and power consumption levels
-
No need to upgrade the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure
-
Power back feed protection to avoid damaging the PoE ports
-
Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
-
Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
-
Rack-mount design, rack-mount kit included
APPLICATION DIAGRAM
Inc GST
$484.14
