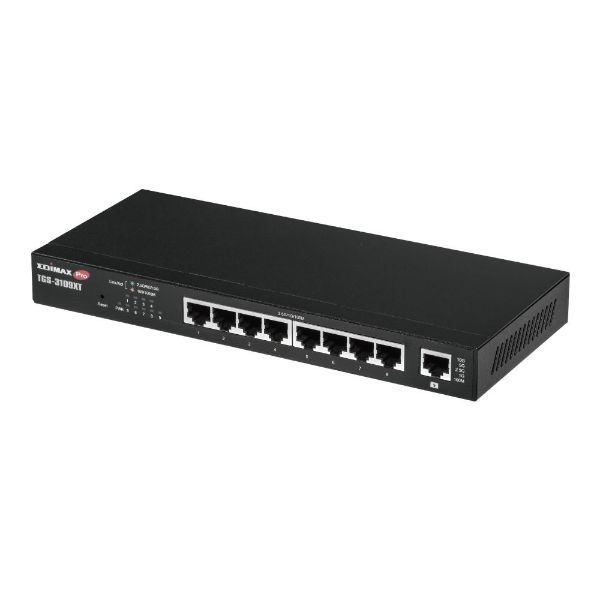

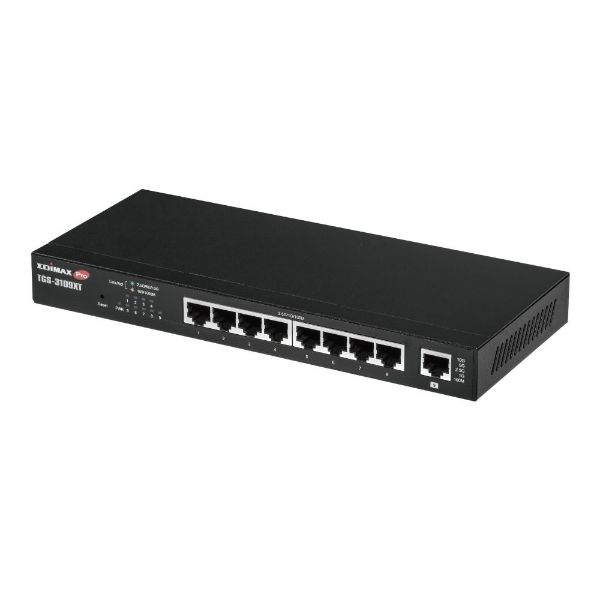

EDIMAX 8 Port 2.5GbE Web Smart Switch with 1x 10GbE Multi-Gigabit

The EDIMAX Pro TGS-3109XT is a web-smart switch with 8x2.5GbE and 1x10GbE ports. The 10GbE port is a Multi-Gigabit 5-speed that provides either 100Mbps, 1Gbps, 2.5Gbps, 5Gbps or 10Gbps. The switch offers powerful and reliable network connectivity, providing sufficient bandwidth and fast speed demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs. With user-friendly smart web-based management utility features, showing outstanding performance and high efficiency that offers essential features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention. The TGS-3109XT is a compact yet useful switch, ideal for network connectivity in the home, small office, small and medium business and enterprise environments.

Features:

• 8 x 2.5GbE and 1 x 10GbE Multi-Gigabit 5-Speed(100M/1G/2.5G/5G/10G) RJ45 port

• No need to upgrade cabling infrastructure. Doubles network bandwidth up to 2.5GbE by leveraging existing CAT5E cabling infrastructure

• Web-based setup interface enables easy configuration and management

• Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more

• Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame

• Fanless, quiet, compact and durable wall-mountable metal chassis design

APPLICATION DIAGRAM
