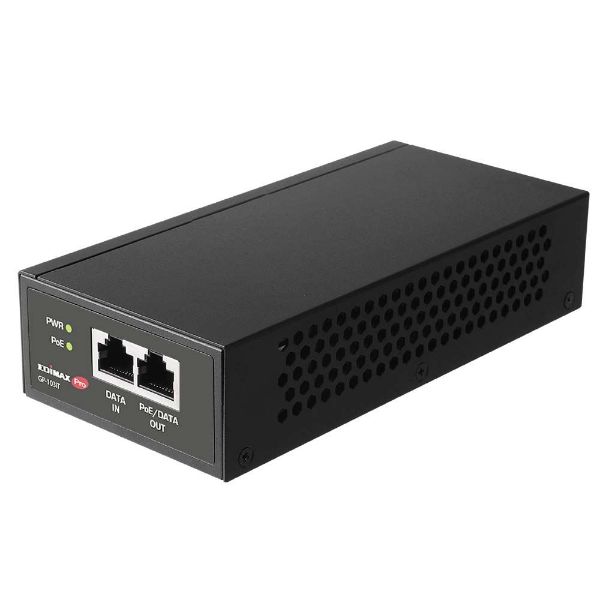

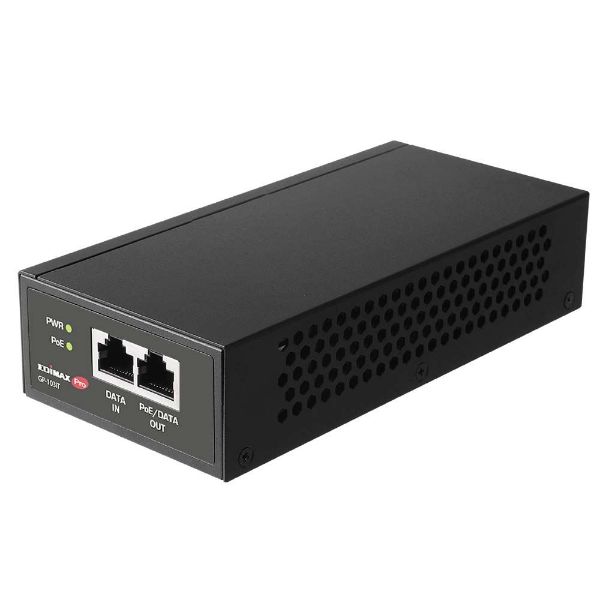

EDIMAX 90W Gigabit PoE++ Injector. Delivers Power & Data up to 100m.

The Edimax GP-103IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP-103IT Gigabit PoE++ injector preserves your investment in hardware upgrades without the need for spending on extra PoE switches and deploying power cables.

FEATURES

• Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
• Power over Ethernet (PoE) Standards
• Adds PoE capability to a non-PoE Ethernet switch or router
• Gigabit LAN ports provide high-speed connectivity
• Supply PoE output 95W to ensure Powered Device (PD) is able to be powered up to 90W
• PoE short circuit protection to safeguard network devices
• Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
• Reduces installation and equipment costs
• Easy plug-and-play desktop or wall-mounted installation

IEEE 802.3af/at/bt Power over Ethernet Standard
Because of adding the capability of IEEE 802.3af/at/bt Power over Ethernet (PoE) to a non-PoE Ethernet switch or router, the GP-103IT can directly be connected to any IEEE 802.3af/at/bt end-nodes such as speed dome IP cameras, Digital Signage, colour touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points, digital signage, information kiosk, POS system, and thin client where the IEEE 802.3af/at/bt in-line PoE port is supported.

Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-103IT reduces the need for cable installation and eliminates the need for extension cords, electrical wall outlets, ceiling or any remote, unreachable place for the PoE-enabled devices with easy plug-and-play installation. Overall, it lowers the installation costs and simplifies the deployment effort.

Flexible & Reliable Power Supply
Offering the optional solution for PoE enables devices, the GP-103IT is the perfect addition to existing non-PoE network infrastructures or retrofit projects. Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage. Supplying the PoE power of up to 90 watts through the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.

PoE Standards and Powered Devices (PDs) Supported
The GP-103IT Gigabit PoE++ injector complies with IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) Standards and supports various PoE devices (PDs) up to 90W.

APPLICATION DIAGRAM
