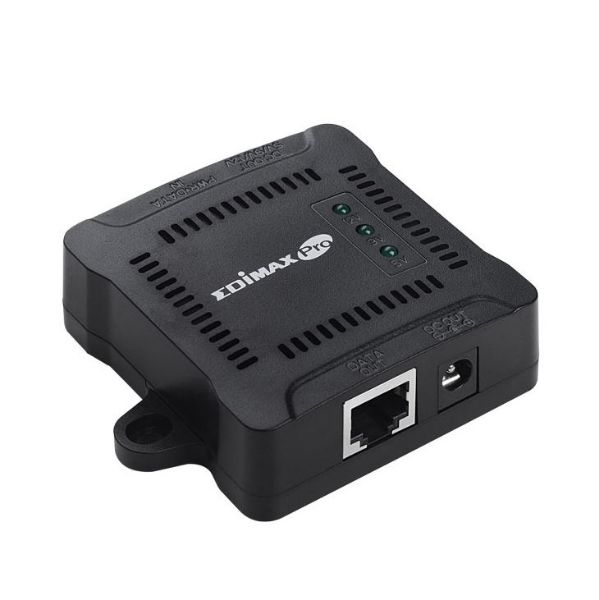

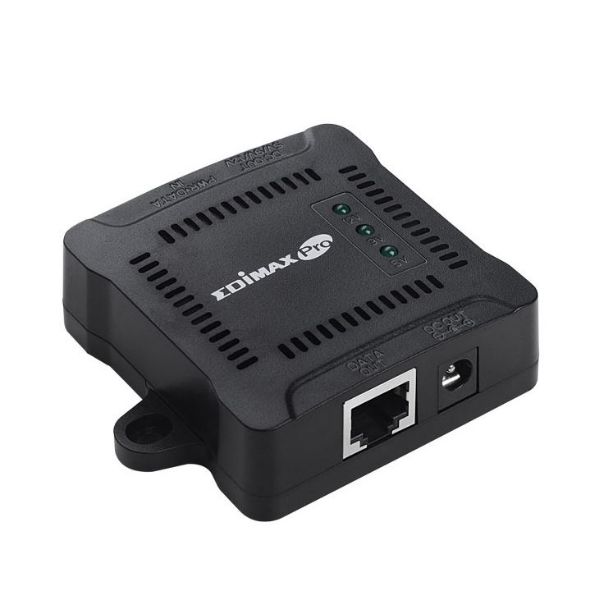

EDIMAX Gigabit PoE+ Splitter. Adjustable output power 5, 9,12VDC.
Gigabit PoE+ Splitter Adjustable Output Power 5/9/12VDC
- Brand: Edimax
- Category: Networking
- SKU: GP-101ST
- MPN: GP-101ST
EDIMAX Gigabit PoE+ Splitter. Adjustable output power 5, 9,12VDC.
The GP-101ST Gigabit PoE (Power over Ethernet) Splitter delivers both data and electrical power to non-PoE Fast Ethernet or Gigabit Ethernet-enabled products such as network cameras and wireless…
Click or hover over image to enlarge
Spec
Hardware
Ports
1x Port RJ45 10/100/1000Base-T PoE Input Port1x Port RJ45 10/100/1000Base-T Output Port1x Port DC Jack Output Port
Weight
65g
Standards
IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3af Power Over Ethernet (PoE)IEEE 802.3at Power Over Ethernet Plus (PoE+)
Weight (8)
Environment
Power Input
IEEE 802.3af, IEEE 802.3at
Temperature
Operating: 0°C ~ 40°CStorage: -40°C~ 70°C
Power Output
DC Out Adjustable Slide Switch for Either 5V/2A, 9V/2A or12V/2A DC Output Power Y-Cable DC Pin (ODxIDxL): 5.5 x 2.1 x 9.5mm and 3.5 x 1.35 x 11 mm
Comsys Price
In Stock
40 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $11.21 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX Gigabit PoE+ Splitter. Adjustable output power 5, 9,12VDC.
The GP-101ST Gigabit PoE (Power over Ethernet) Splitter delivers both data and electrical power to non-PoE Fast Ethernet or Gigabit Ethernet-enabled products such as network cameras and wireless access points, using an Ethernet cable and without deploying power outlets and electrical cabling. Ideal for remote locations, the GP-101ST allows data transfer between the PSE (Power Source Equipment) and GP-101ST up to Gigabit speeds and delivers power output voltages of 12V, 9V or 5V DC simultaneously up to 100m (328ft). The GP-101ST is easy to install and requires no tools or software while offering the benefits of cost savings as well as flexible network planning and high reliability.
Features
- Supports IEEE802.3at/af PoE and proprietary PoE such as PoE injectors.
- Splits a networked PoE connection into separate power and gigabit data connections.
- Use non-PoE device in remote locations where power is unavailable.
- Adjustable slide switch for either 5V/9V/12V DC output power.
- PoE short circuit protection to safeguard network devices.
- Delivers power and data to PoE splitter from up to 100M.
- Easy Plug and Play desktop or wall-mounted installation.
- 3 Year Warranty
APPLICATION DIAGRAM
