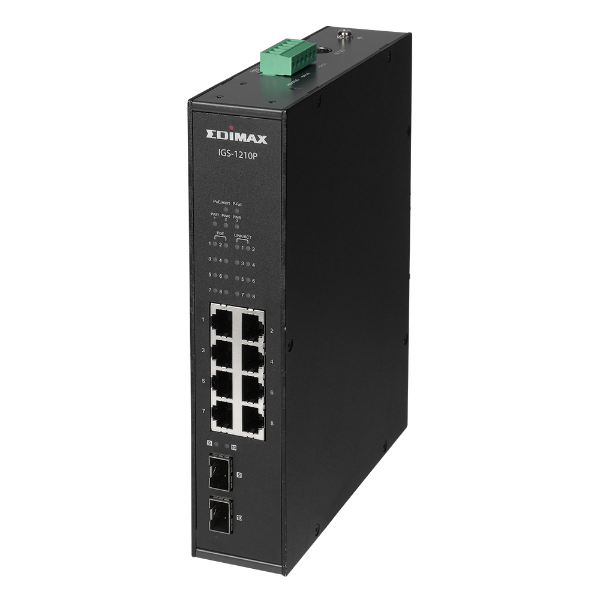

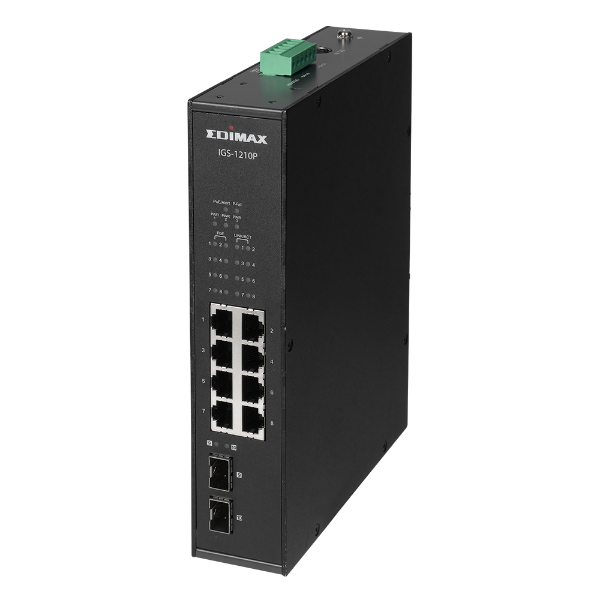

EDIMAX Industrial 10-Port Gigabit PoE+ DIN Rail Switch. 8 x Gigabit

The EDIMAX IGS-1210P V2 Industrial 10-Port Gigabit PoE+ Din-Rail Switch comes with 2 SFP uplink ports providing a total PoE power budget of up to 240 Watts and high-speed connections for enduring, reliable, flexible industrial network deployment. Supporting the redundancy power input, P-fail relay, 6KV surge and power backfeed protection features, the IGS-1210P V2 protects the system with uninterrupted data transmission and damage to ensure the network connection reliability. The IGS-1210P V2 is designed with long-range PoE, hardware 802.1q QoS, 802. IP30-rating metal housing, DIN-rail/wall-mounted hole, and wide operating temperatures from -20°C up to 70°C. It offers an easy efficient data transfer, plug-and-play, flexible-deployment, cost-effective, energy-efficient solution for various harsh industrial networks, such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy, and outdoor applications of railways, roads, tunnels, and smart cities, city surveillance, and traffic monitoring.

Features:

• 8 Gigabit Ethernet PoE+ ports and 2 SFP uplink ports
• 6KV Surge protection to avoid damage to the switch and connected devices

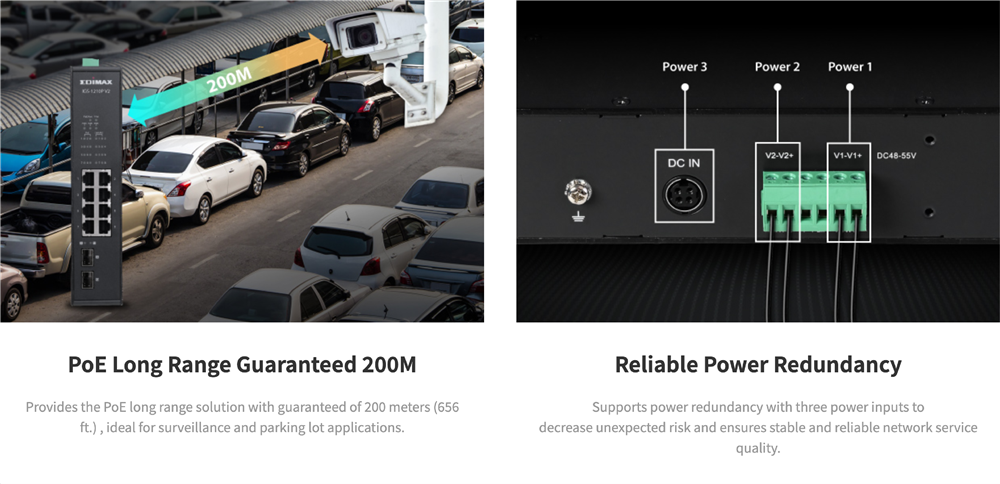

• Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
• P-fail relay with alarm and notification when an event of power failure occurs
• Supports QoS 802.1p for video & voice traffic priority
• Wide operating temperature range of -20°C ~+70°C
• IEEE 802.3af/at PoE compliant, supports up to 30W per port (power budget: up to 240W)
• Guaranteed PoE long distance to 200m
• Power backfeed protection to avoid damaging the PoE ports
• Flexible deployment with DIN-Rail mounting kit and wall-mount feature
• IP30-rated, fanless rugged industrial design for harsh environments

Durable Performance Network that You Can Rely on
