EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to

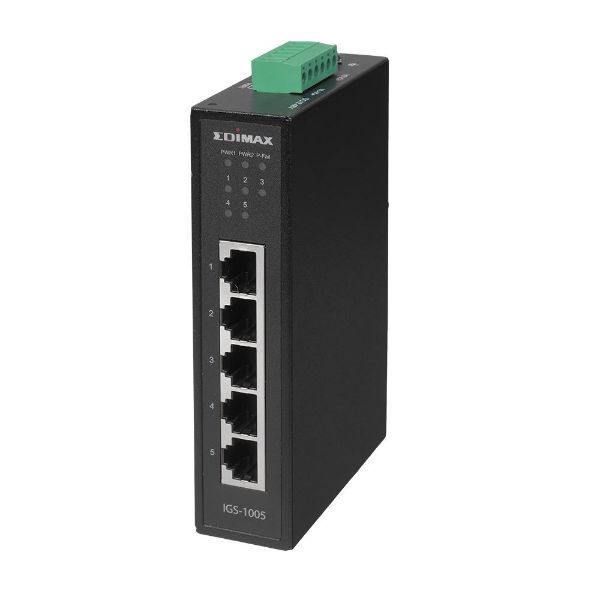

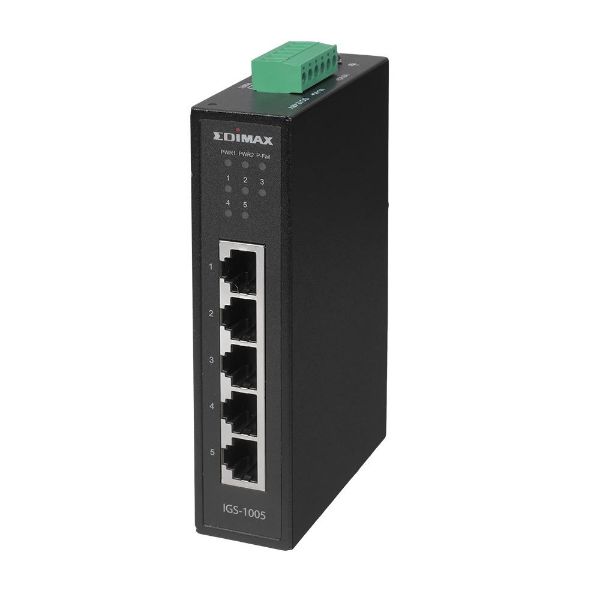

Industrial 5-Port Gigabit DIN Rail Switch
- Brand: Edimax
- Category: Switches
- SKU: IGS-1005
- MPN: IGS-1005
EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to
FEATURES: 5 Gigabit Ethernet ports 6KV Surge protection to avoid damage to the switch and connected devices Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network…
Click or hover over image to enlarge
Fan
Fanless
MTBF
>1,000,000 hours @25°C (Mean Time Between Failure)
Spec
HARDWARE
Ports
5x RJ-45 10/100/1000Base-T Gigabit Ports
Weight
387g
Housing
Metal, IP30-rated
Mounting
DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount
Connector
Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power failure Alarm Relay), Pin 5/6 for Power 2)Grounding Point with Screw
Comsys Price
Save $27.06 off RRP
In Stock
10 units available
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $43.99 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to
FEATURES:
- 5 Gigabit Ethernet ports
- 6KV Surge protection to avoid damage to the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20°C ~+70°C
- Guaranteed long distance to 200 meters
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.
