ES8000/ES8100 V-LOCK GLASS DOOR KIT

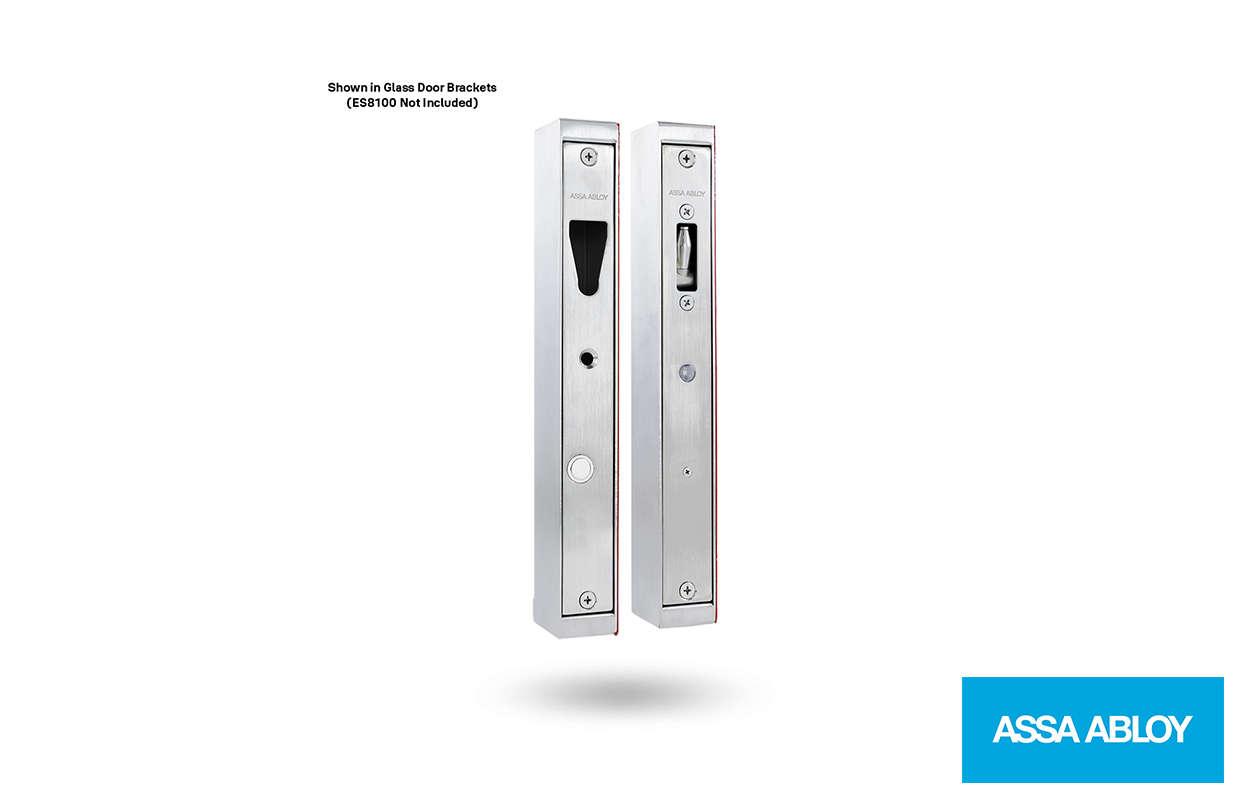

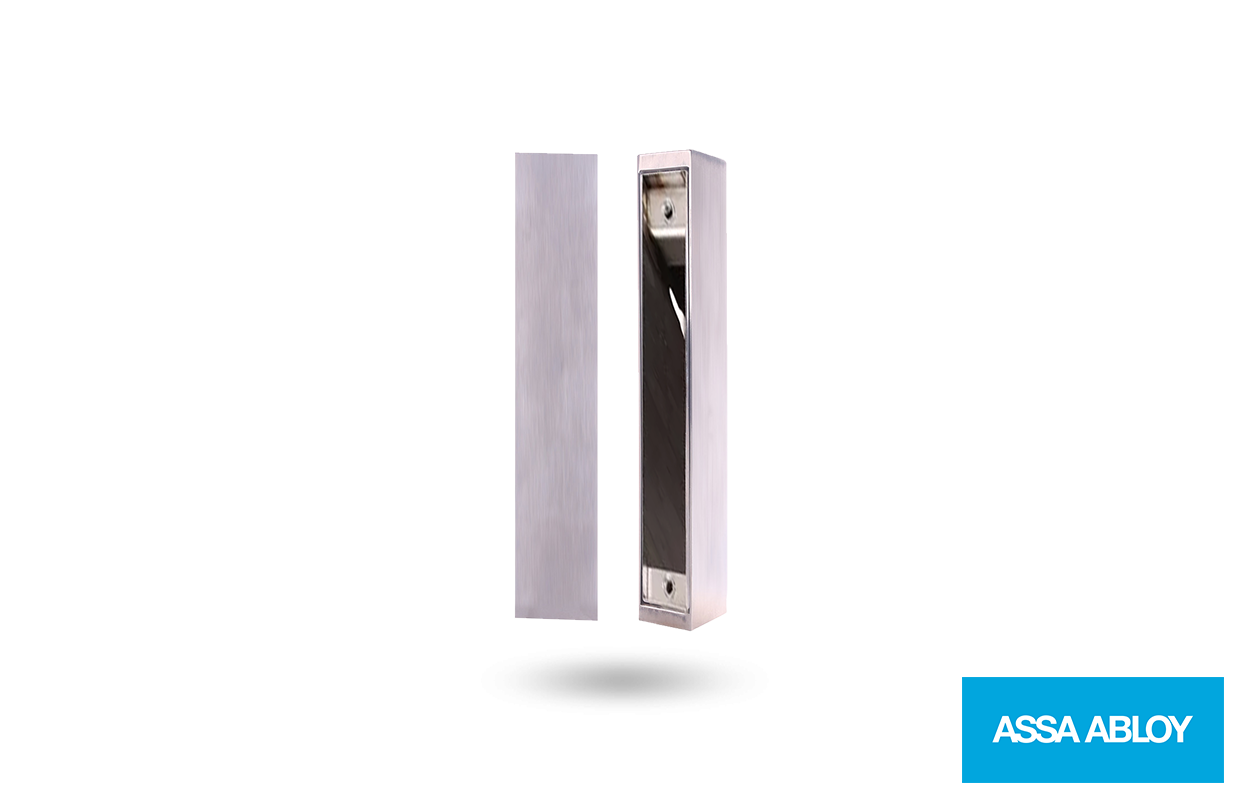

The unique and popular Lockwood/Trimec ES8000 V-Lock has been completely redesigned and engineered to produce the new ASSA ABLOY ES8100 V-Lock. Designed and assembled in Australia, with patents pending in various countries, the ES8100 incorporates many improvements over its Lockwood/Trimec predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration. Although completely redesigned internally, the new ES8100 V-Lock body and faceplate retain the original footprint and is a direct retrofit to the original ES8000 model. The ES8100 strike plate utilises the same fixing locations but is 3mm wider to increase misalignment distance. The ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V-shaped Strike Plate, pulling the door into alignment when locked. The ES8100 may be mounted either vertically or horizontally, but cannot be mounted on the floor. The V-lock glass door bracket is the ideal solution when it comes to 180° swing-through doors or double-action glass doors.
- Category: CCTV Accessories
- SKU: 208000-000
- MPN: 208000
ES8000/ES8100 V-LOCK GLASS DOOR KIT
Inclusive of GST
4 payments of $89.50Low prices and fast dispatch on every order. Seen it cheaper? Request a price match.
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 136 Cryers Road, East Tāmaki, Auckland 2013
Key Details:
- SKU:
- CNZ-CL-000040
- MPN:
- 208000
Genuine NZ stock with full manufacturer warranty — no parallel imports. Hardware only, priced sharp, dispatched fast.
ES8000/ES8100 V-LOCK GLASS DOOR KIT
The unique and popular Lockwood/Trimec ES8000 V-Lock has been completely redesigned and engineered to produce the new ASSA ABLOY ES8100 V-Lock. Designed and assembled in Australia, with patents pending in various countries, the ES8100 incorporates many improvements over its Lockwood/Trimec predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration. Although completely redesigned internally, the new ES8100 V-Lock body and faceplate retain the original footprint and is a direct retrofit to the original ES8000 model. The ES8100 strike plate utilises the same fixing locations but is 3mm wider to increase misalignment distance. The ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V-shaped Strike Plate, pulling the door into alignment when locked. The ES8100 may be mounted either vertically or horizontally, but cannot be mounted on the floor. The V-lock glass door bracket is the ideal solution when it comes to 180° swing-through doors or double-action glass doors.
