Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

  • Brand: HikMicro
  • Category: Security & Surveillance
  • SKU: B20S
  • MPN: B20S

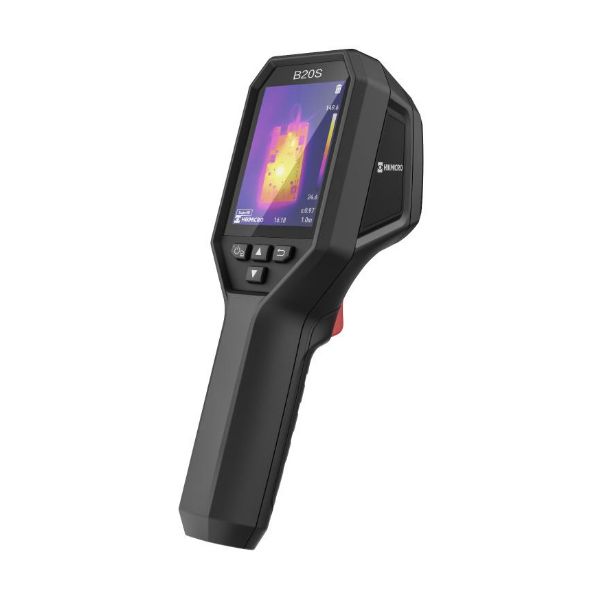

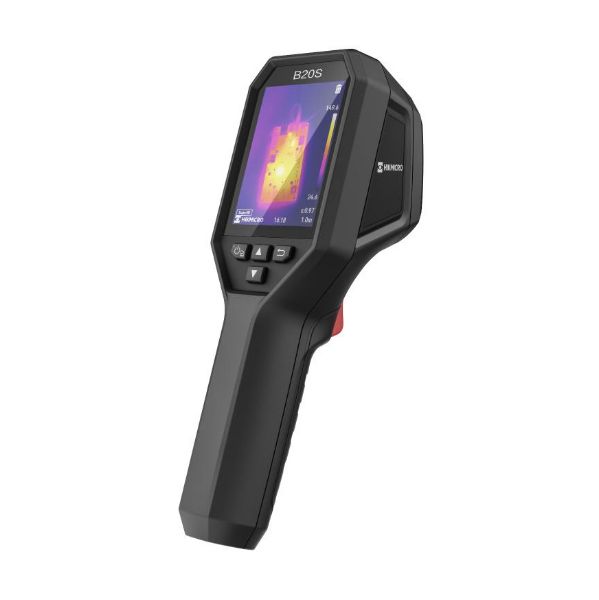

HikMicro Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP HIKMICRO B20S is designed for temperature measurement to find invisible faults.

Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

Click or hover over image to enlarge

Brand:HikMicro
MPN:B20S

Part #: B20S

Search this part on Google
Returns & Warranty

Comsys Price

$1,455.89
On Sale

Save $385.31 off RRP

Only 1 left in stock

Order soon to avoid backorder

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $363.97 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

Handheld Wi-Fi Thermal Imaging Camera. 3.2'' LCD Thermal Visual Fusion & PIP

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256x192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and the auto industry, etc.



Features:

  • IR resolution: 256x192 (49 152 pixels), 2MP Visual Resolution
  • Support SuperIR image enhancement technology
  • NETD : ＜ 40 mK (@ 25 °C,F#=1.0)
  • Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
  • Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
  • Support Multiple Scene modes, some support SuperScene intelligent detection
  • 25 Hz image frequency
  • 3.2" 480x640 Resolution LCD Screen
  • Up to 6 hours of continuous running
  • Support SuperIR image enhancement technology



High Image Quality
Get unmatched clarity with HIKMICRO B20S, featuring a highly sensitive (NETD < 40 mK) VOx detector and optimised image enhancement algorithms. View it all on a 3.2" LCD screen with a crisp 640x480 resolution, capturing every detail with its 256x192 thermal resolution.


Enhanced Thermal Clarity with SuperIR
HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels), significantly improving thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture.
*Real-time SuperIR is only available in thermal mode.


Experience the New and Improved Display
The B20S features a high-resolution display of 640x480. With the SuperIR, you can enjoy real-time high-definition previews, revealing more details and enhancing your overall experience.


4 Image Modes
Thermal, Fusion, PIP, and Optical modes to suit your preferred view.


Full-screen Precise and Wide Temperature Measurement
The thermal imaging camera B20 supports the capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. It accurately measures temperatures from -20°C to 550°C (-4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.



Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.



Optional innovative macro mode
Using a clip-on macro lens, the B20S cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.



High Temperature Alarm
Built-in speaker and flashlight give the operator audio and visual alerts to high temperatures.



Fast Image Frequency
Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B20S provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.


HIKMICRO Analyser Software
Included software offers flexible ways (points, lines, rectangles, circles, polygons) to analyse thermographic info of captured pictures, and generate reports.

Inc GST

$1,455.89
