EATON Hotswap MBS - 1x 16A IEC, 6x 10A IEC.
- Brand: Eaton
- Category: POS Accessories
- SKU: MBP3KI
- MPN: MBP3KI
EATON Hotswap MBS - 1x 16A IEC, 6x 10A IEC.
High availability for all UPSs up to 11 kVA. HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.

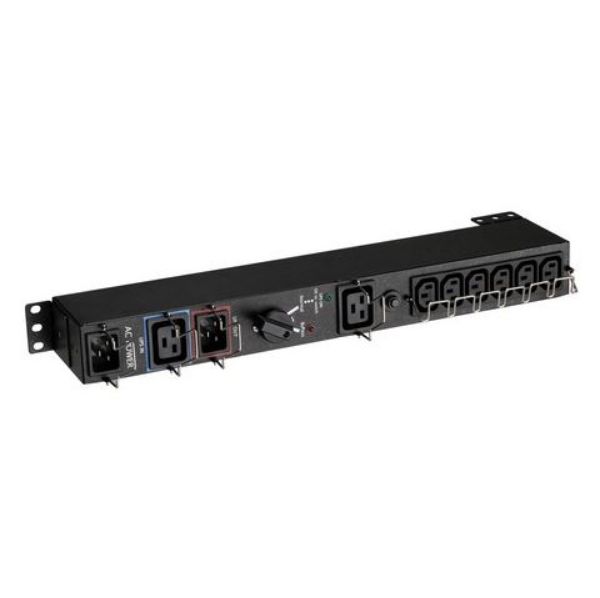

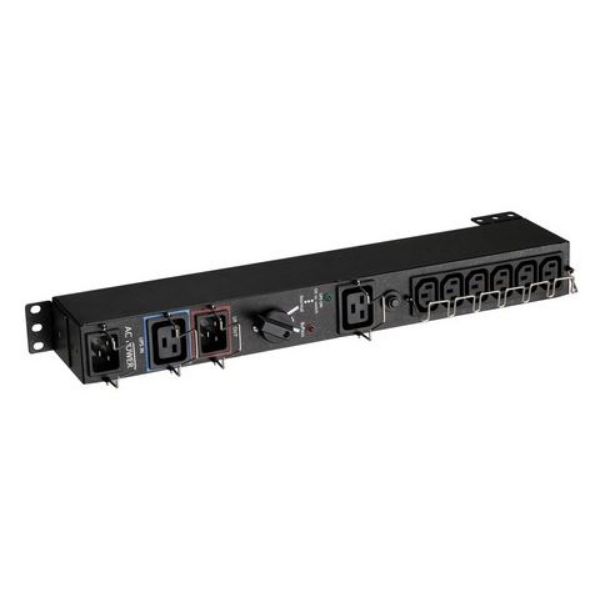

Click or hover over image to enlarge
Format
>1U 19” rack-mountingwith multi-position mountings
Inputs
FR / DIN / BS / IEC models:1 IEC C20 (16 A) connector and1 IEC 16 A - 16 A cable (1)HW (Hard-Wired): terminal block
Outputs
FR: 4 French sockets + 1 IEC 16 A socket DIN: 4 Schuko sockets + 1 IEC 16 A socket BS: 3 British sockets + 1 IEC 16 A socket(with 1 circuit breaker) IEC: 6 IEC sockets + 1 IEC 16 A sockets(with 1 circuit breaker) HW: Terminal block
Cascading
Yes, IEC 16 A output socket
Installation
19” rack, wall mounting or on Eaton RT UPSs
Maximum power
3000VA
Retaining clips
Retaining clips on the IEC output sockets
Maximum power (1)
Installation
Comsys Price
Save $152.45 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $167.90 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
EATON Hotswap MBS - 1x 16A IEC, 6x 10A IEC.
- High availability for all UPSs up to 11 kVA.
- HotSwap MBP provides a maintenance bypass for all UPSs. UPSs can be hot swapped or upgraded without interrupting the power supply.
- HotSwap MBP are available with multiple power ratings: 3000 VA, 6000 VA, 11000 VA, 11000 VA (3 ph Input).
- HotSwap MBP provides compatibility with any UPS now and in the future from Eaton or any other supplier
- The HotSwap MBP 3000 VA is available with different output connectors: French, Schuko, British, IEC or terminal blocks (Hard-Wired version).
- When used with a 9PX or 9SX the HotSwap MBP 6000 VA and above are providing information on the Bypass status through the UPS LCD screen.
- HotSwap MBP units can be installed as required; at the back, side, top of the UPSs, or rack-mounted.
Inc GST
$671.59
