32A Gen II Lever Wire Connector Starter Kit

32A Gen II Lever Wire Connector Starter Kit

  • Brand: IDEAL INDUSTRIES
  • Category: Ethernet Cables
  • SKU: IDL30-6099
  • MPN: IDL30-6099

IDEAL INDUSTRIES 32A Gen II Lever Wire Connector Starter Kit

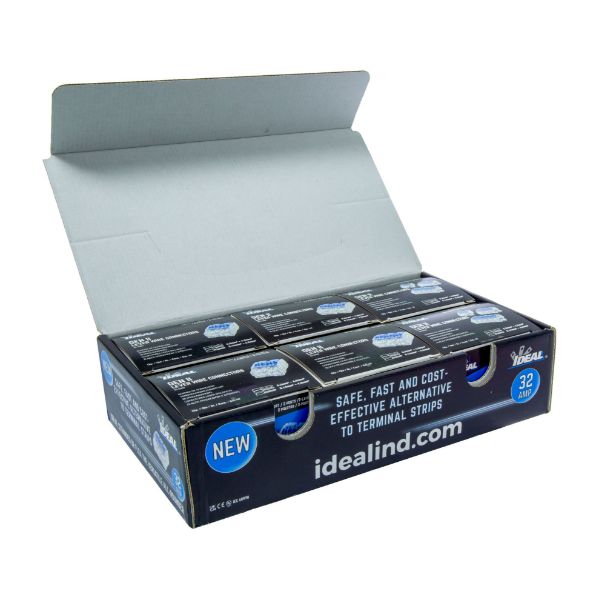

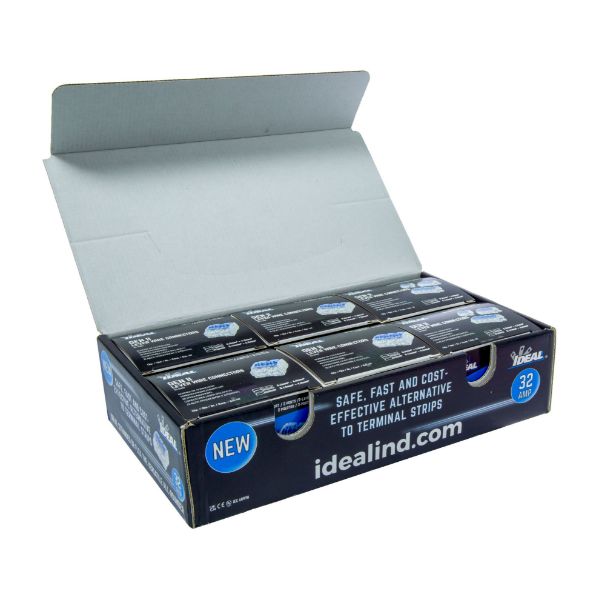

IDEAL INDUSTRIES 32A Gen II Lever Wire Connector Starter Kit. 6 Boxes 2 Each of 2,3 and 5 Port. Suitable for Wire up to 4mm2.

32A Gen II Lever Wire Connector Starter Kit

Click or hover over image to enlarge

Brand:IDEAL INDUSTRIES
MPN:IDL30-6099

Part #: IDL30-6099

Search this part on Google
Returns & Warranty

Comsys Price

$246.09
On Sale

Save $25.05 off RRP

Only 1 left in stock

Order soon to avoid backorder

NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
1
100% NZ Owned & Operated

Shipped to your region. Freight is calculated at checkout from live courier rates.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay

Four payments of $61.52 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

32A Gen II Lever Wire Connector Starter Kit

IDEAL INDUSTRIES 32A Gen II Lever Wire Connector Starter Kit. 6 Boxes 2 Each of 2,3 and 5 Port. Suitable for Wire up to 4mm2.

GEN II LEVER WIRE CONNECTORS

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.

It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.



FEATURES:

  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector – for solid, stranded and flexible wires
  • Innovative levers – opens in the opposite direction of insertion points
  • Compact design – suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection
  • Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect
  • Wire clamping range:
    • 0.2 mm2 to 4.0 mm2 (24 - 12 AWG for solid and rigid stranded wires (7 strands)
    • 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires
  • Ratings:
    • IEC 60998: 32A | 450V | 85° C (ambient)
    • UL 486C: 20A |600V | 105° C (working)
  • Strip Length: 11-12 mm | 0.45"
  • Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
  • CE, UKCA, UL and ENEC approved
