IDEAL INDUSTRIES Crimping Tool with Insulated Terminal Die Set.
Crimping Tool w/ Insulated Terminal Die Set
- Brand: Ideal Industries
- Category: Peripherals & Accessories
- SKU: IDL30-500
- MPN: IDL30-500
IDEAL INDUSTRIES Crimping Tool with Insulated Terminal Die Set.

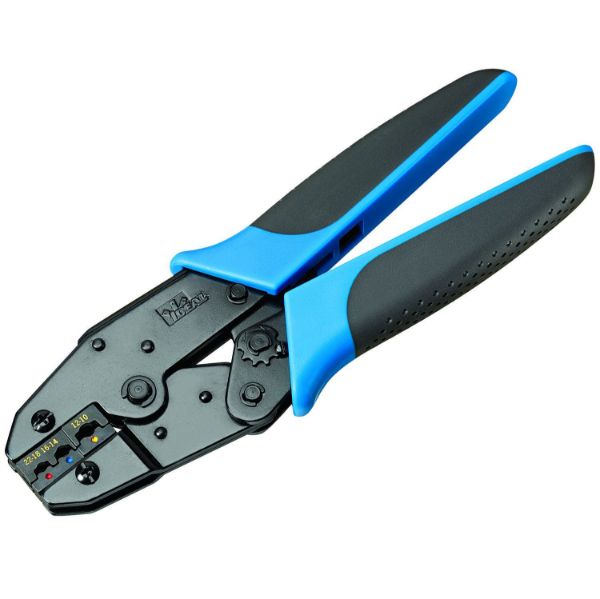

The Crimpmaster™ ratcheting crimp tool is a versatile hand-held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs.
Click or hover over image to enlarge
Comsys Price
Save $90.66 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $23.00 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
IDEAL INDUSTRIES Crimping Tool with Insulated Terminal Die Set.
The Crimpmaster™ ratcheting crimp tool is a versatile hand-held tool that uses interchangeable die sets to crimp many types of connectors including RF, wire terminals, and modular plugs. 15+ die sets are available for the Crimpmaster.
The tool is designed for heavy daily professional use. The thick-walled frame is manufactured from fine-blanked high-carbon steel with a black oxide coating. Large, contoured, rounded-edge handles provide comfort and leverage during the crimping process.
The Crimpmaster has a ratchet mechanism that prevents the user from under-crimping a connector. The tool will not open, or release the connector being crimped until a full crimping cycle has been completed. The tool does have a ratchet release lever located between the handles to open the tool if a full cycle cannot be completed.
The tool can be fine-adjusted to die set variations with the 6-position cam wheel. Precision ground die sets can be changed with a flat or Phillips screwdriver. The Crimpmaster is a professional-grade, general-purpose crimping tool that requires no factory calibration.
FEATURES:
- Crimpmaster™ tool plus die set for insulated wire terminals
- For insulated ring, butt, and splice wire terminals
- Colour-coded locations for red, blue, and yellow terminals
- Includes the 30-506 Crimpmaster™ frame
- Crimpmaster™ tool plus die set for insulated wire terminals
- 3 cavity die: 22~10 AWG
- For insulated ring, butt, and splice wire terminals
- Also available as die set only (see part number 30-579)
- Heavy-duty professional hand-held ratcheting crimp tool
- Compatible with over 15 different die sets for RF connectors, wire terminals and modular plugs
- Provides a consistent crimp every time
- Comfort grip contoured handles
- Dies change quickly with a screwdriver
- Adjustable cam for fine adjustments to the crimping cycle
Inc GST
$91.99
