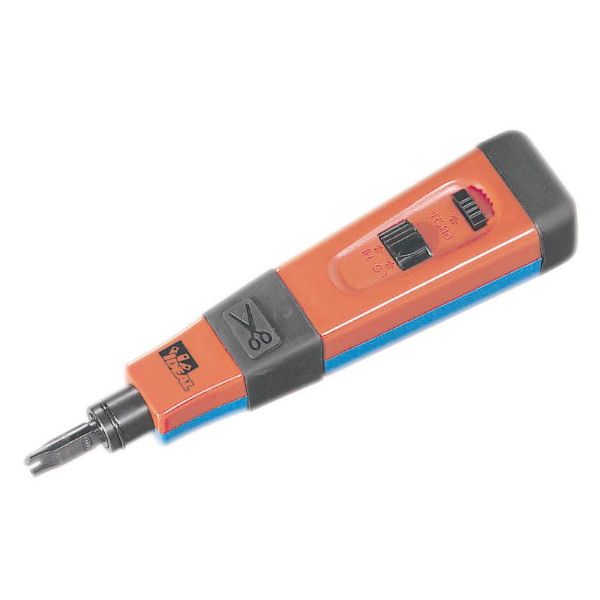

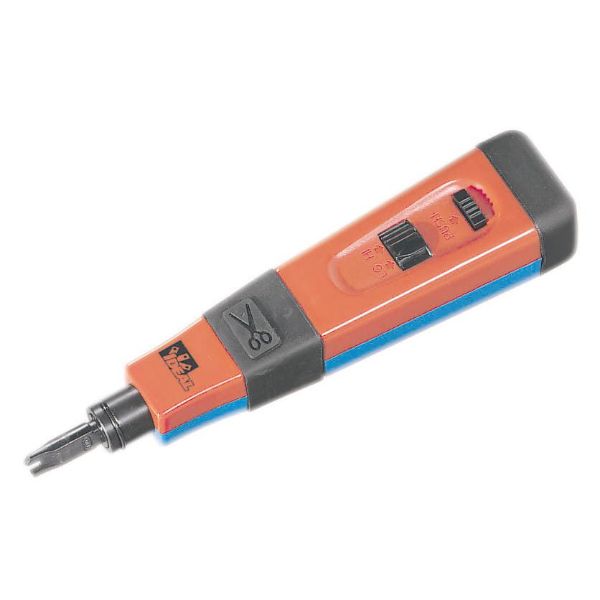

IDEAL INDUSTRIES Punchmaster II Punch Down Tool with 66 and 110
Punchmaster II Punch Down Tool w/ 66 & 110 Full Blades.
- Brand: Ideal Industries
- Category: Peripherals & Accessories
- SKU: IDL35-485
- MPN: IDL35-485
IDEAL INDUSTRIES Punchmaster II Punch Down Tool with 66 and 110
The Punchmaster™ II Punchdown tool is a professional-grade tool used for terminating voice and data conductors to related networking and telecommunications equipment.
Click or hover over image to enlarge
Comsys Price
Save $30.36 off RRP
Only 1 left in stock
Order soon to avoid backorder
Shipped to your region. Freight is calculated at checkout from live courier rates.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 130 Bush Road, Rosedale, Auckland 0632
- 27 Dalziel Place, Woolston, Christchurch 8023
Four payments of $28.17 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
IDEAL INDUSTRIES Punchmaster II Punch Down Tool with 66 and 110
The Punchmaster™ II Punchdown tool is a professional-grade tool used for terminating voice and data conductors to related networking and telecommunications equipment. The 35-485 includes both 110 (networking/data) and 66 (telecommunications/voice) blades. Other blade types are available separately.
The tool features an impact-style design where a spring-loaded internal mechanism helps to deliver a surge of additional force to seat and cut conductors with less input from the user. Users can select either the HI or LO setting on the tool. The LO setting is used for terminating more sensitive equipment, such as posts attached to circuit boards. The HI setting delivers more of a punch and offers better seating and cutting characteristics.
A spare 110 or 66 blade can be stored at the top of the tool. Blades are released by pressing the blade release button and turning the tool upside down.
The Turn-Lock™ Style blade system keeps the blades oriented properly and securely within the tool. Turn-Lock™ always aligns the cutting side of the blade with the orange half of the tool, so it is easy to identify the cut side of the tool on a job.
Blades can be used to seat and cut Cat 3/5e/6/6A conductors and multi-pair telephone wires.
The Punchmaster™ II is Made in the USA of US and Global Components.
- Includes both 110 and 66 full blades – 110 (cut/no-cut), 66 (cut/no cut)
- Spring-loaded impact-style termination seats and cut wires with less effort
- A cushioned end cap and body grip help to absorb impact forces and reduce operator fatigue
- Adjustable high/low actuation setting accommodates termination requirements and user preference
- Turn-Lock™ Style blade holding design keeps the blade aligned and secure in the tool
Inc GST
$112.69
